ANYLOAD 102BH Alloy Steel Double-Ended Beam Load Cell

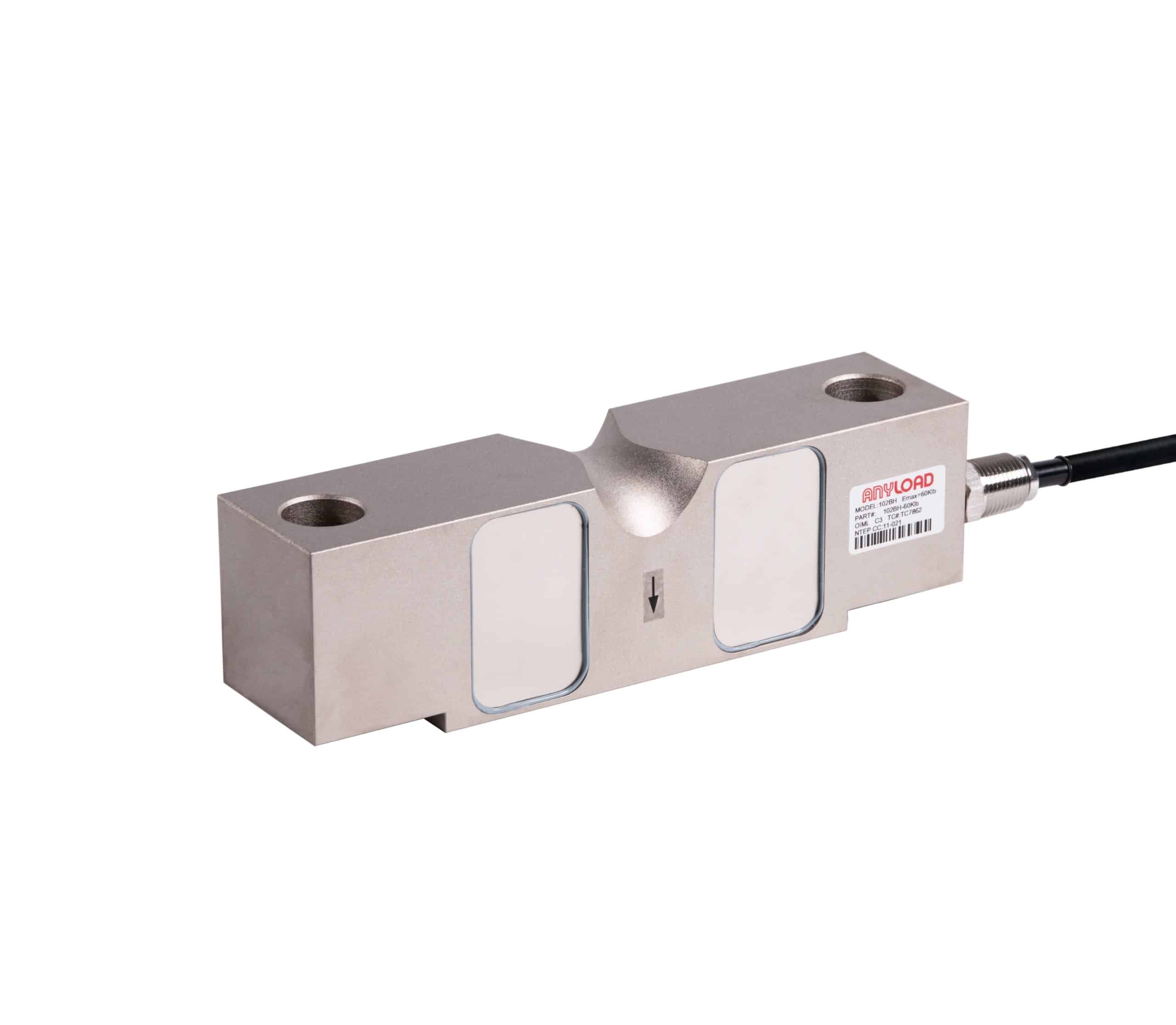

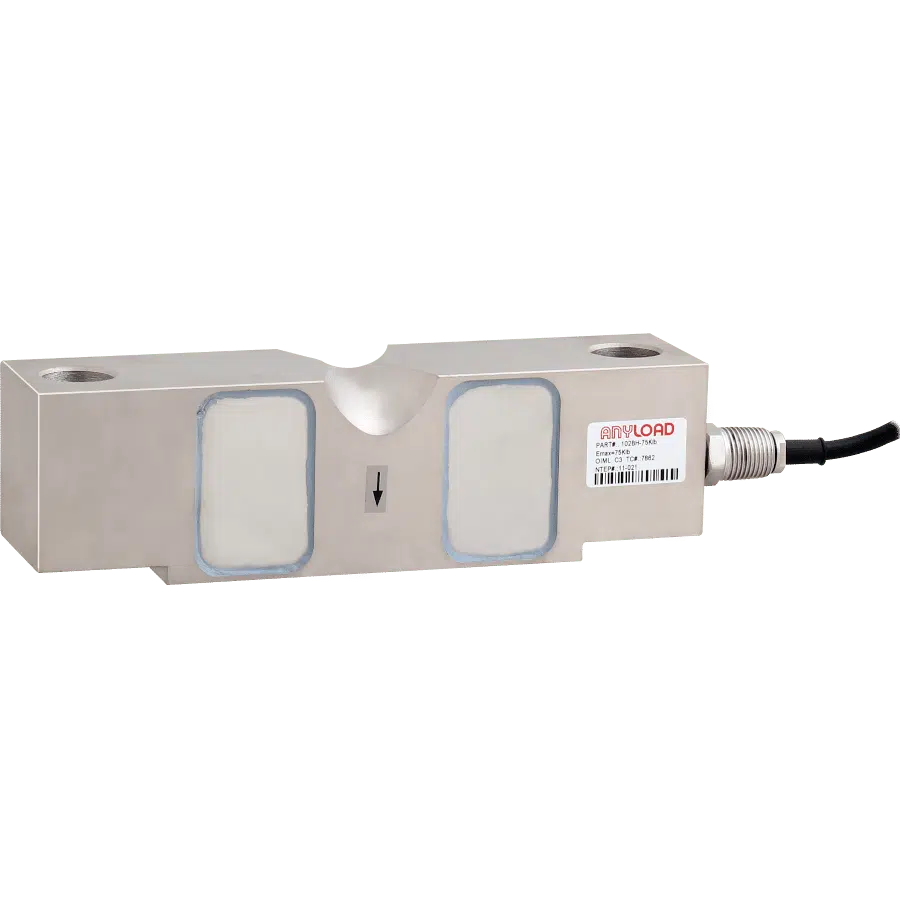

The ANYLOAD 102BH Double-Ended Beam Load Cell is environmentally sealed, nickel plated alloy steel. Available in 10Klb-125Klb capacities, it is ingress protection rated IP67. Other capacities and configurations may available – please contact us to order.

$575.00$1,410.00

SKU: 102BH Category:

ANYLOAD 102BH Key Features

  • Alloy steel material
  • Rated Capacities: 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50t
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
  • OIML MAA C3, Y=7 500 certified from 11t-55t
  • CE, RoHS and Ex certified
  • Lightning Protection Version (75Klb-02)
  • Rodent Protected Ca(ble Version (75Klb-RP)

Available options: 102BH-10000lb, 102BH-25000lb, 102BH-40000lb, 102BH-50000lb, 102BH-60000lb, 102BH-75000lb, 102BH-75000lb-02, 102BH-75000lb-RP, 102BH-100000lb, 102BH-100000lb-SE, 102BH-125000lb (contact us for availability on other rated capacities)

Installation Module: ANYLOAD 102BHM1

Specifications

ANYLOAD 102BH Load Cell Specifications

Rated Capacity 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50t
Full Scale Output 3mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

Interchangeable Cross Reference

ANYLOAD 102BH Interchangeable Cross Reference

Manufacturer Equivalent Model Notes
Coti Global CG-58
Rice Lake RL75058
Vishay Celtron CLB
Vishay Revere Transducers 5303
Vishay Sensortronics 65058A has SE50Klb and 50Klb options
Vishay Tedea-Huntleigh 4158
