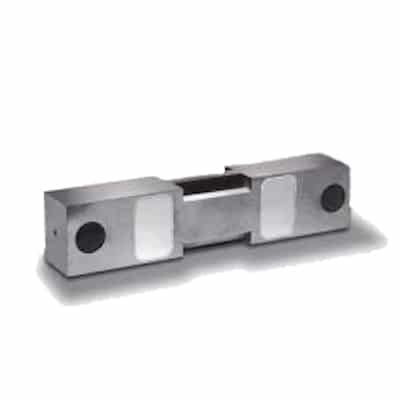

AmCells DSB Series Double-Ended Shear Beam Steel Load Cell
AmCells DSB Series Double Ended Shear Beam load cells are alloy steel and are ideal for medium and high capacity weighing applications including vessel weighing, industrial floor scales, and tank/hopper applications. They are available in 1Klb-75Klb capacities and come with a 20ft cable.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $500.00 |
10-24 | 10 - 24 | 5% $475.00 |
25-49 | 25 - 49 | 8% $460.00 |
50-99 | 50 - 99 | 11% $445.00 |
100+ | 100 + | 15% $425.00 |
SKU: DSB
Category: Double-Ended Shear Beam
AmCells DSB Series Features
- Through holes on both ends, allowing easy and convenient load cell mounting
- Alloy Steel material
- 1Klb-75Klb capacities
- Meets OIML and HB44 III Standards
- Cable Length: 20 ft.
Available options: DSB-1Klb, DSB-2Klb, DSB-2.5Klb, DSB-3Klb, DSB-5Klb, DSB-10Klb, DSB-15Klb, DSB-20Klb, DSB-25Klb, DSB-50Klb, DSB-75Klb
Please contact us with any product interfacing inquiries.
Specifications
AmCells DSB Series Load Cell Specifications
Rated Output (R.O.) | 3.0 MV/V ± 1% |
Zero Balance | ± 2% of R.O. |
Non-linearity | 0.03% of R.O. |
Hysteresis | 0.05% of R.O. |
Non-Repeatability | 0.02% of R.O. |
Creep in 1 hour | 0.02% of Load |
Insulation | > 5,000MΩ |
Input Impedance | 700 ± 30Ω |
Output Impedance | 700 ± 4Ω |
Safe Overload | 150% of F.S. |
Ultimate Overload | 300% of F.S. |
Compensated Temperature Range | -10 to 40 °C |
Operating Temperature Range | -40 to 80 °C |
Temperature Effect on Output | 20 ppm/°C of Load |
Temperature Effect on Zero | 20 ppm/°C of R.O. |
Recommended Excitation | 10V DC/AC |
Maximum Excitation | 20V DC/AC |
Interchangeable Cross Reference
AmCell DSB Equivalents
Manufacturer | Equivalent Model |
Artech Industries Inc. | 70510 |
Rice Lake | RL75016 |
Revere | 5203 |
Sensor | 65016 |
Transcell | DBS |
Celtron | DSR |
