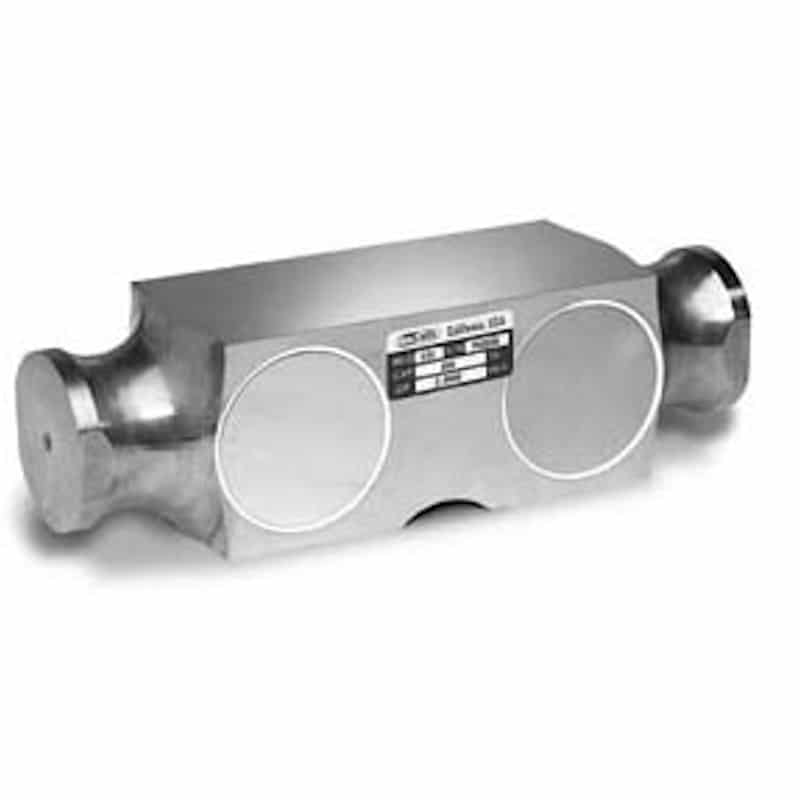

AmCells DSL Series Double-Ended Shear Beam Link Load Cell
AmCells DSL Series Double-Ended Shear Beam Link load cells are alloy steel and come in 50K-150Klb capacities. This model features link nose ends.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,120.00 |
10-24 | 10 - 24 | 5% $1,064.00 |
25-49 | 25 - 49 | 8% $1,030.40 |
50-99 | 50 - 99 | 11% $996.80 |
100+ | 100 + | 15% $952.00 |
SKU: DSL
Category: Double-Ended Shear Beam
AmCells DSL Series Features
- Link nose design compensates for movement during the weighing process
- Alloy steel material
- Capacities: 50Klb, 65Klb, 100Klb, 150Klb
- Cable length: 30 feet
- Meets OIML and HB44 III Standards
Available options: DSL-50000lb, DSL-65000lb, DSL-100000lb, DSL-150000lb
Please contact us with any product interfacing inquiries.
Specifications
DSL Series Double-Ended Shear Beam Link Load Cell Specifications
Rated Output (R.O.) | 3.0 MV/V ± 1% |
Zero Balance | ± 2% of R.O. |
Non-linearity | 0.03% of R.O. |
Hysteresis | 0.05% of R.O. |
Non-Repeatability | 0.02% of R.O. |
Creep in 1 hour | 0.02% of Load |
Insulation | > 5,000MΩ |
Input Impedance | 700 ± 30Ω |
Output Impedance | 700 ± 4Ω |
Safe Overload | 150% of F.S. |
Ultimate Overload | 300% of F.S. |
Compensated Temperature Range | -10 to 40 °C |
Operating Temperature Range | -40 to 80 °C |
Temperature Effect on Output | 20 ppm/°C of Load |
Temperature Effect on Zero | 20 ppm/°C of R.O. |
Recommended Excitation | 10V DC/AC |
Maximum Excitation | 20V DC/AC |
Interchangeable Cross Reference
AmCells DSL Series Equivalents
Manufacturer | Equivalent Model |
Artech Industries Inc. | 80210 |
Rice Lake | RL75223 |
Revere | 5223 |
Sensor | 65040 |
Celtron | HED |
