AmCells DSF-50K Double-Ended Shear Beam – Fairbanks 50000Lb

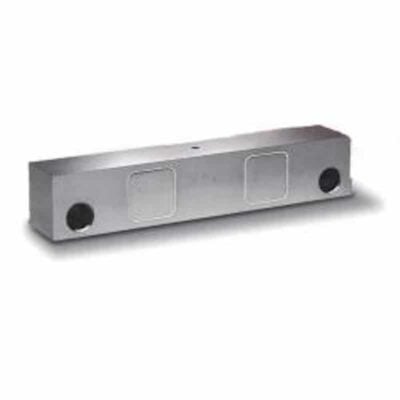

The AmCells DSF Double-Ended Shear Beam load cell contains through holes for easy mounting and assembly. Made of alloy steel, it comes with a 30 ft cable and is available in a 50Klb rated capacity.
$980.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $980.00 |
10-24 | 10 - 24 | 5% $931.00 |
25-49 | 25 - 49 | 8% $901.60 |
50-99 | 50 - 99 | 11% $872.20 |
100+ | 100 + | 15% $833.00 |
SKU: DSF-50K
Category: Double-Ended Shear Beam
AmCells DSF Features
Available options: DSF-50K
Other double-ended load cell capacities and configurations are available – please contact us to learn more.
Specifications
AmCells DSF Double-Ended Shear Beam Specifications
Rated Output (R.O.) | 3.0 MV/V ± 1% |
Zero Balance | ± 2% of R.O. |
Non-linearity | 0.03% of R.O. |
Hysteresis | 0.05% of R.O. |
Non-Repeatability | 0.02% of R.O. |
Creep in 1 hour | 0.02% of Load |
Insulation | > 5,000MΩ |
Input Impedance | 700 ± 30Ω |
Output Impedance | 700 ± 4Ω |
Safe Overload | 150% of F.S. |
Ultimate Overload | 300% of F.S. |
Compensated Temperature Range | -10 to 40 °C |
Operating Temperature Range | -40 to 80 °C |
Temperature Effect on Output | 20 ppm/°C of Load |
Temperature Effect on Zero | 20 ppm/°C of R.O. |
Recommended Excitation | 10V DC/AC |
Maximum Excitation | 20V DC/AC |
