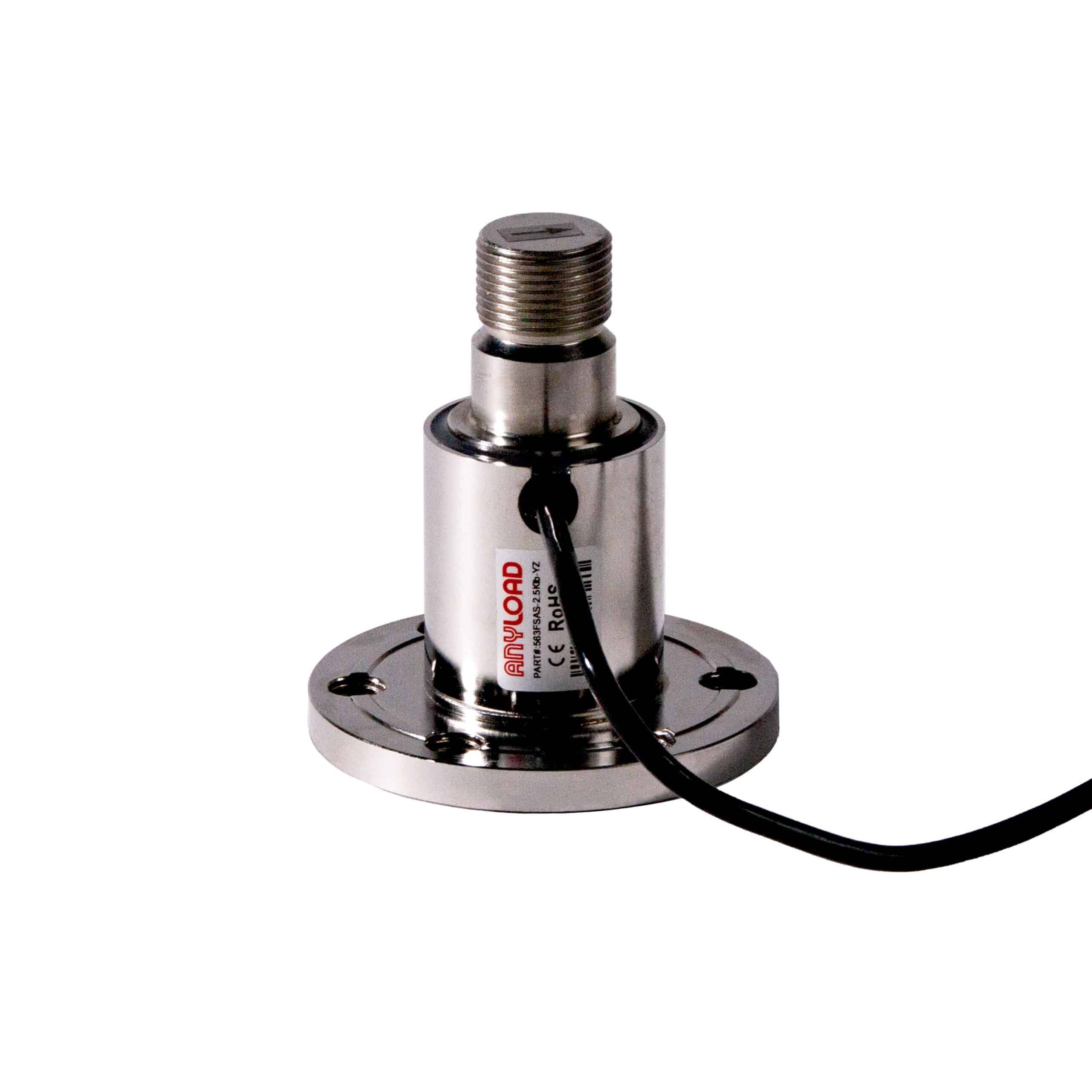

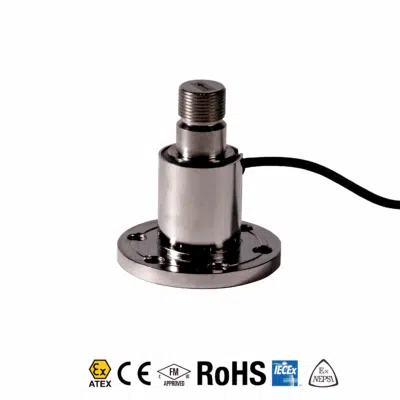

ANYLOAD 563FSAS Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563FSAS single-ended beam load cell is environmentally sealed 2CR13 stainless steel that offers an ingress protection rating of IP66. This model meets common international safety standards and is ideal for forklift weighing systems.
Note that this product has two color-coded wiring options. Please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $830.00 |
10-24 | 10 - 24 | 5% $788.50 |
25-49 | 25 - 49 | 8% $763.60 |
50-99 | 50 - 99 | 11% $738.70 |
100+ | 100 + | 15% $705.50 |
SKU: 563FSAS
Category: Single-Ended Shear Beam
ANYLOAD 563FSAS Features
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 2.5klb
- Full-Scale Output: 0.4mV/V ± 0.25%
- Safe Overload: 200% of full-scale
- Breaking Overload: 500% of full scale
- IP Rating: IP66
- CE, RoHS, and Ex certified
Available Options: 2.5Klb-YZ
Version A (default) has the following color code option: Exc+: Red, Exc-: Black, Sig+: Green, Sig-: White; Shield: Bare
Version B (Contact us to order) has color code option: Exc+: Green, Exc-: Black, Sig+: White, Sig-: Red; Shield: Bare
Specifications
ANYLOAD 563FSAS Load Cell Specification
Rated Capacity | 2.5klb |
Full-Scale Output | 0.4mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ±0.017% |
Repeatability | < ±0.017% |
Hysteresis Error | < ±0.017% |
Creep in 30 minutes | < ±0.023% |
Input Resistance | 1100O ± 50O |
Output Resistance | 1000O ± 10O |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GO (50V DC) |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 200% of full scale |
Breaking Overload | 500% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
563FSAS Single-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
