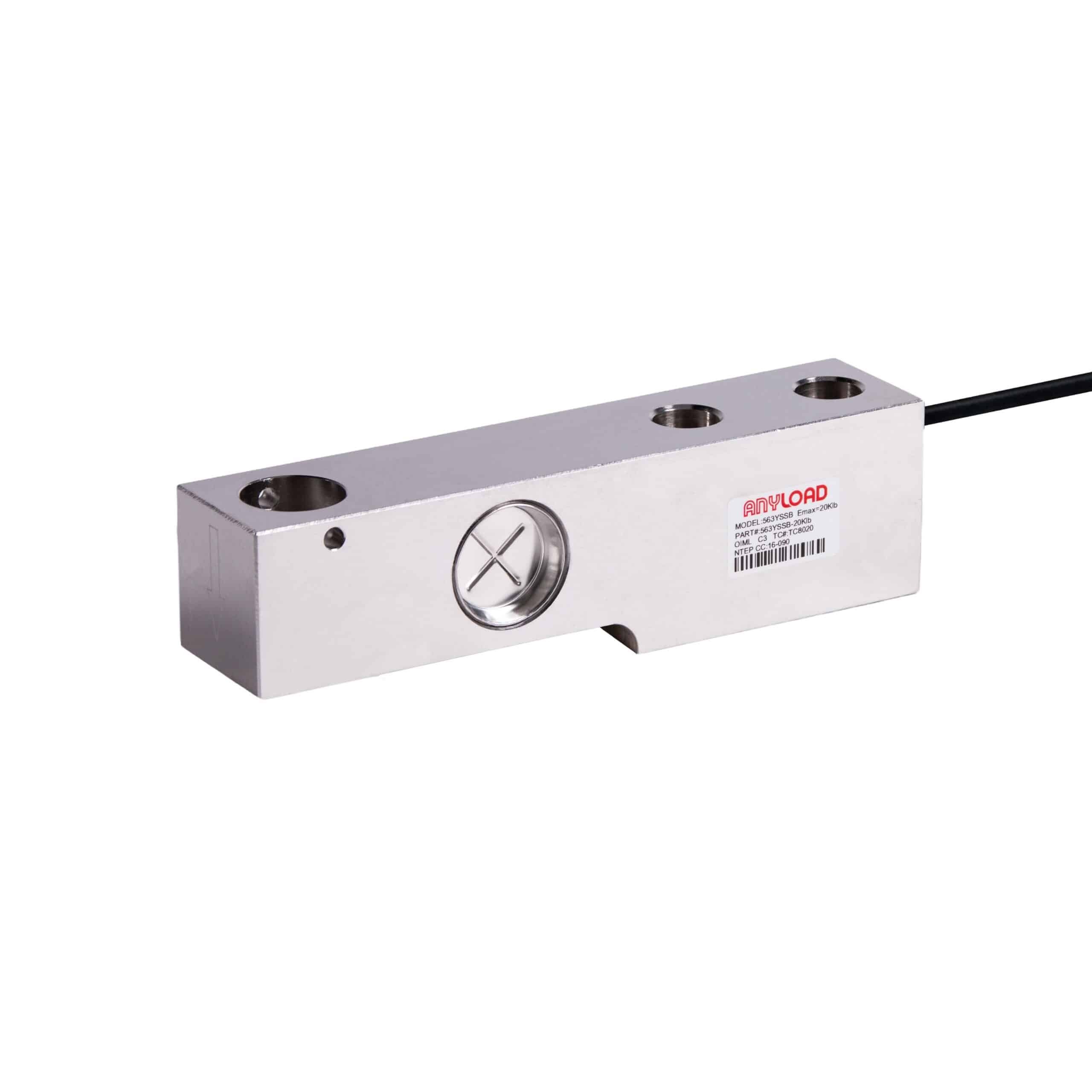

ANYLOAD 563YSSB Stainless Steel Single-Ended Beam Load Cell
The 563YSSB Single-Ended Beam Load Cell is a heavy-duty, IP68-rated solution with weld-sealed 17-4PH stainless steel construction, designed for medium-capacity weighing needs. Its robust and affordable design ensures reliable performance in applications such as bench scales, process weighing, platform scales, check weighing, and hopper scales. Available in capacities from 2.5Klb to 20Klb, it also offers optional rocker pin and spacer insert configurations. The 563YSSB is interchangeable with models like the Cardinal SB2500S and Rice Lake RLSB50.
Other configurations may be available upon request — please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $34.00 |
10-24 | 10 - 24 | 5% $32.30 |
25-49 | 25 - 49 | 8% $31.28 |
50-99 | 50 - 99 | 11% $30.26 |
100+ | 100 + | 15% $28.90 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YSSB Features
The 563YSSB Single-Ended Beam Load Cell is a heavy-duty weighing solution designed for medium-capacity applications, featuring robust IP68-rated, weld-sealed 17-4PH stainless steel construction. This durable design ensures reliable performance across a wide range of applications, including bench scales, process weighing, platform scales, check weighing, and hopper scales, all while maintaining affordability. The 563YSSB is available in capacities ranging from 2.5Klb to 20Klb, with optional rocker pin and spacer insert configurations for enhanced loading flexibility. Additionally, this load cell is interchangeable with models such as the Cardinal SB2500S and Rice Lake RLSB50, making it a versatile and cost-effective choice for various industrial weighing needs.
- Material: Stainless Steel
- Rated Capacities: 2.5Klb, 5Klb, 10Klb, 20Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS, and Ex Certified
- Rocker pin and specialty spacer insert are available for all capacities 2.5Klb-20Klb
Available Options: 2.5Klb, 5Klb, 10Klb & 20Klb.
Available Loading Hardware Options (for capacities 2.5Klb-20Klb – see datasheet for dimensions):
F563YSSB-1 Specialty spacer insert
F563YSSB-2 Rocker pin
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSSB Load Cell Specifications
Rated Capacity | 2.5Klb, 5Klb, 10Klb, 20Klb |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.023% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
563YSSB Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563YSSB-(2.5-5)klb | |
563YSSB-(10-20)klb |
Interchangeable Cross Reference
ANYLOAD 563YSSB Equivalents
Manufacturer | Equivalent Model | Info |
Cardinal | SB2500S | |
Cardinal | SB5000S | |
Cardinal | SB10000S | |
Cardinal | SB20000S | |
Coti Global | CG-SB250 | |
Rice Lake | RLSB50 | Has a through hole design |
