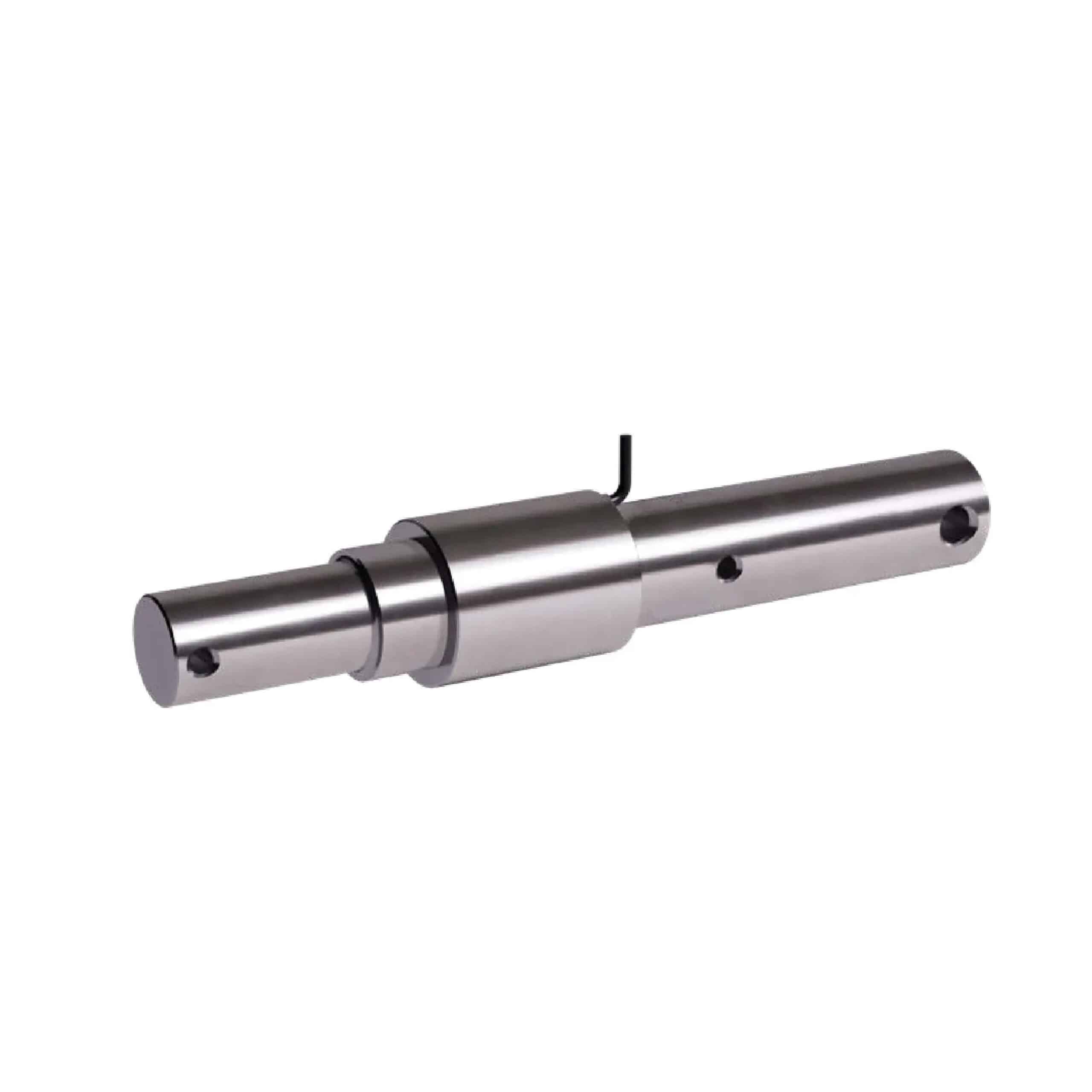

ANYLOAD 563WH-24A Alloy Steel Single-Ended Beam Load Cell
The 563WH-24A Single-Ended Beam Load Cell is constructed from durable alloy steel and offers a rated capacity of 10Klb with a full-scale output of 0.5 mV/V ± 2%. Designed for demanding environments, it features IP67 environmental sealing and a 300% breaking overload for enhanced safety.
Other capacities and configurations are available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $558.00 |
| 10 - 24 | $530.10 |
| 25 - 49 | $513.36 |
| 50 - 99 | $496.62 |
| 100 + | $474.30 |
ANYLOAD 563WH-24A Features
- Material: Nickel-Plated Alloy Steel
- Rated Capacities: 10Klb
- Full-Scale Output: 0.5 mV/V ± 2%
- Breaking Overload: 300%
- IP Rating: Environmentally Sealed / IP67
- CE, RoHS, and Ex(NEPSI) Certified
- ATEX, FM, IECEx available upon request
Available Option: 10Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563WH-24A Load Cell Specifications
| Rated Capacity | 10Klb |
| Full-Scale Output | 0.5mV/V ± 2% |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | <±0.05% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ± 20Ω for kg or 350Ω ± 7Ω for lb |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
