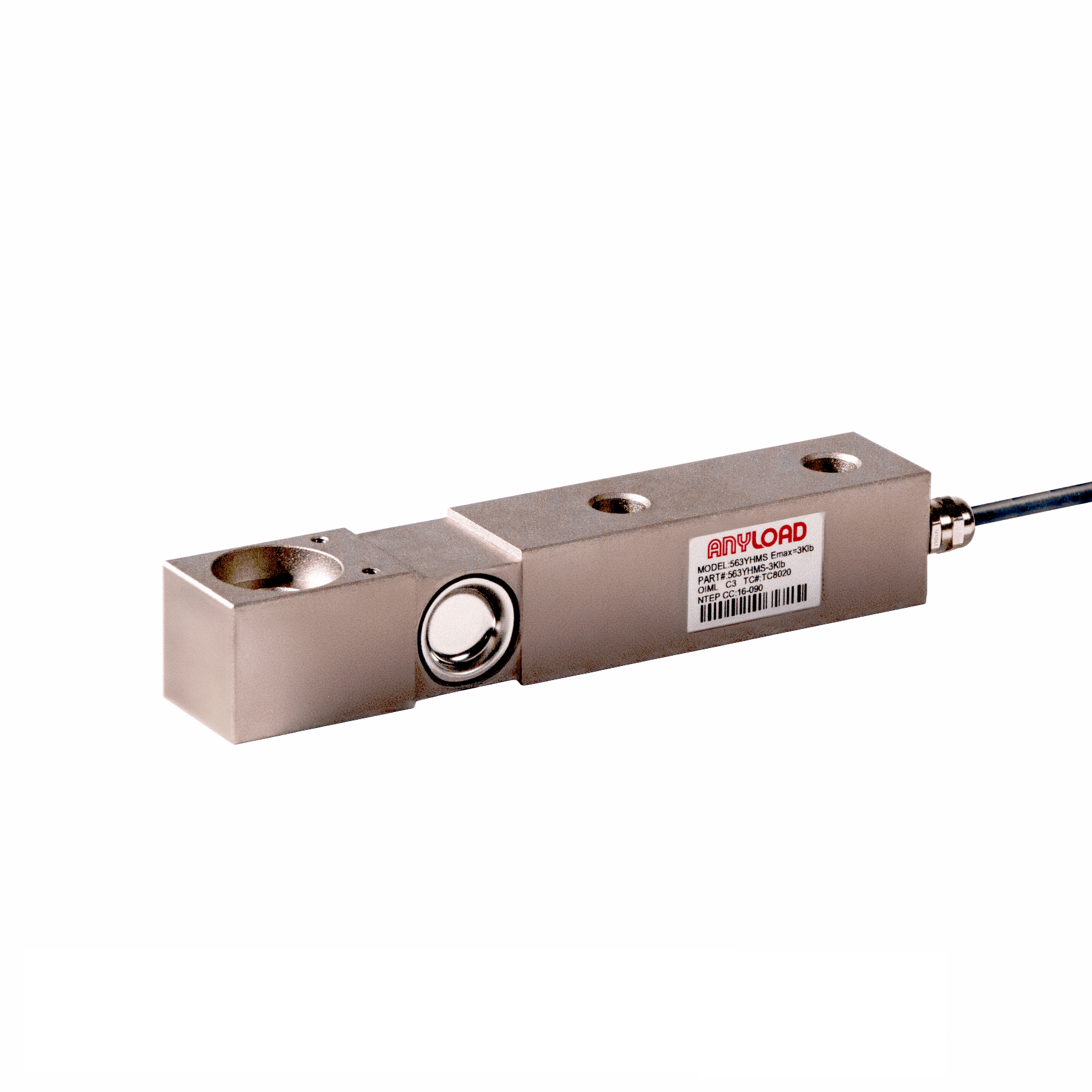

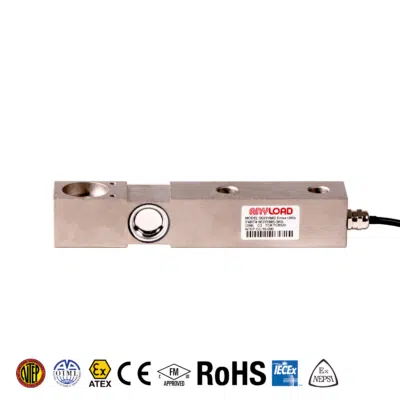

ANYLOAD 563YHMS Alloy Steel Single-Ended Beam Load Cell
The 563YHMS Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution with superior accuracy and cost-effectiveness. Made from nickel-plated, environmentally sealed alloy steel, it is interchangeable with Rice Lake and Mettler-Toledo models, making it ideal for platform weighing, truck and rail scales, hopper weighing, and more. Available in capacities from 5Klb to 20Klb, it ensures reliable performance in demanding applications.
Other capacities and configurations are available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $510.00 |
10-24 | 10 - 24 | 5% $484.50 |
25-49 | 25 - 49 | 8% $469.20 |
50-99 | 50 - 99 | 11% $453.90 |
100+ | 100 + | 15% $433.50 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YHMS Features
The 563YHMS Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution designed for superior accuracy and durability in challenging environments. Constructed from nickel-plated, environmentally sealed alloy steel, it offers excellent water resistance and cost-effectiveness, making it ideal for applications such as platform weighing, truck and rail scales, and hopper weighing. Interchangeable with models from Rice Lake (RLSB2MLW, RLSB2L) and Mettler-Toledo (ML4311-4449), the 563YHMS provides versatile compatibility across various industrial settings. Available in capacities ranging from 5Klb to 20Klb, this load cell ensures reliable performance and precise measurements for a wide range of heavy-duty weighing needs.
- Material: Alloy Steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 20Klb
- Full-Scale Output: 2mV/V ± 0.07%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP, NCE, RoHS, and Ex Certified
Available Options: 5Klb, 10Klb & 20Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YHMS Load Cell Specifications
Rated Capacity | 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 20Klb |
Full-Scale Output | 2mV/V ± 0.07% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
563YHMS Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563YHMS-(1-5)klb | |
563YHMS-20klb |
Interchangeable Cross Reference
ANYLOAD 563YHMS Interchangeable Cross Reference
Manufacturer | Equivalent Model | Info |
Coti Global | CG-SB2L/SB2M | |
Coti Global | CG-743 | |
Mettler-Toledo | ML4311-4449 | |
Rice Lake | RLSB2MLW | Constructed with stainless steel and designed for capacities 1Klb-20Klb |
Rice Lake | RLSB2L | Constructed with alloy steel and designed for capacities 35Klb-45Klb |
