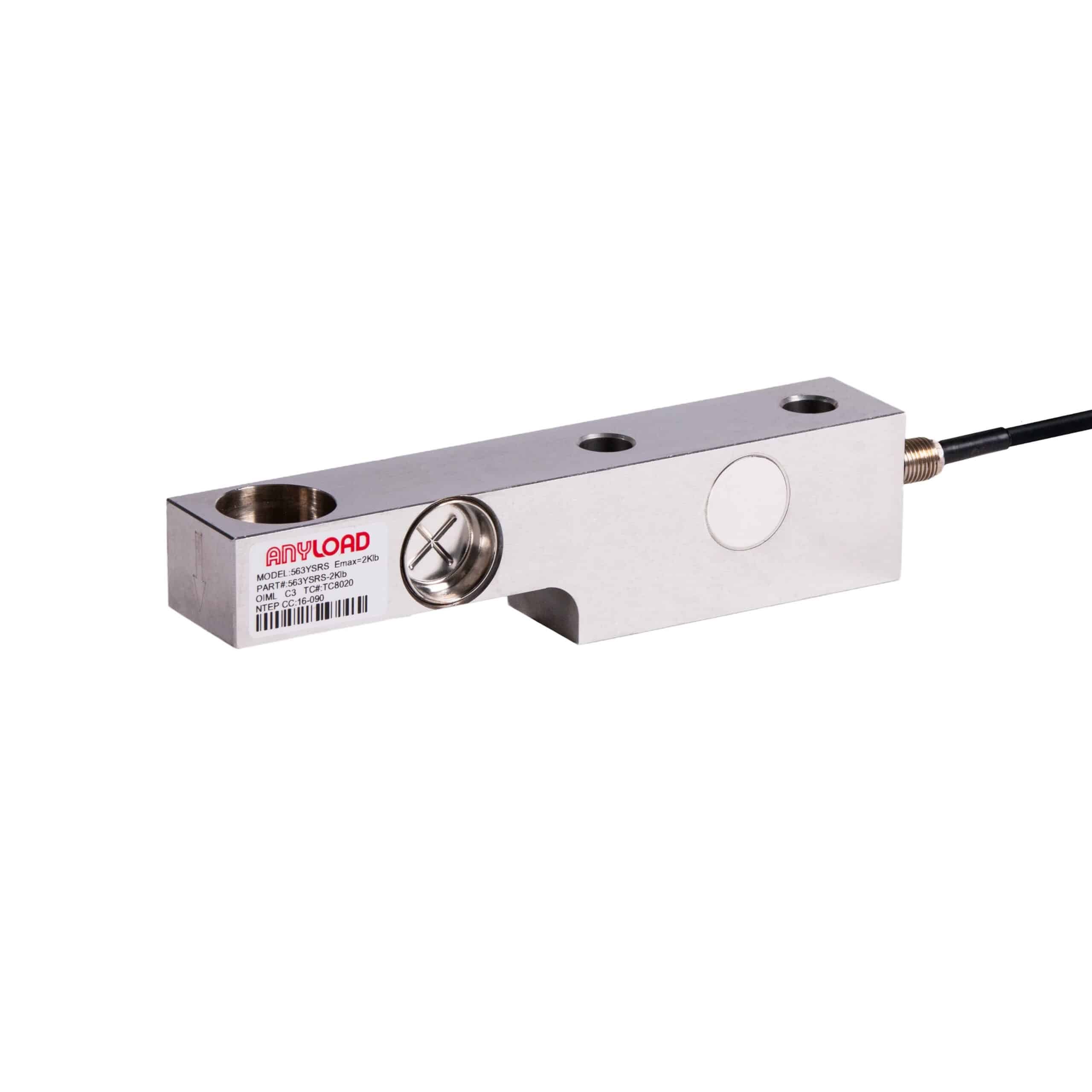

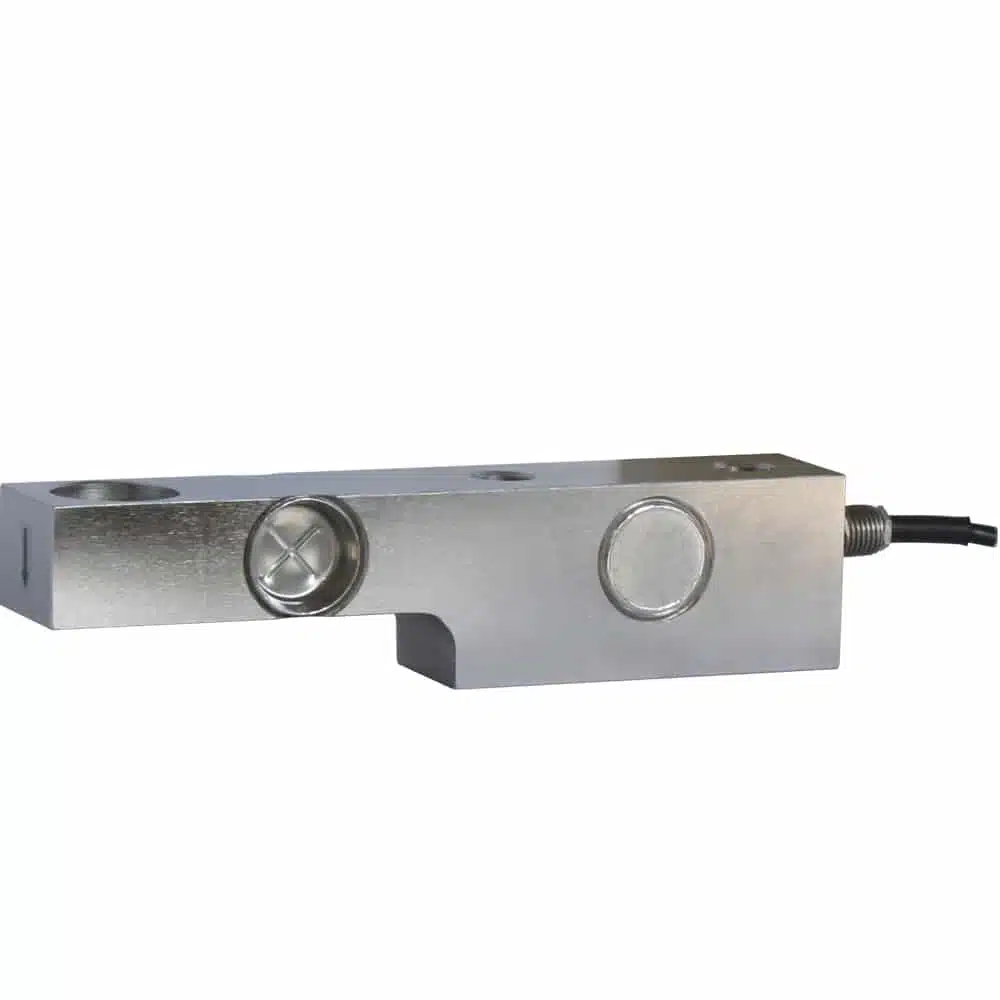

ANYLOAD 563YSRS Stainless Steel Single-Ended Beam Load Cell
The 563YSRS Single-Ended Beam Load Cell features a compact, low-profile design, making it ideal for medium-capacity applications such as platform scales, hopper scales, and bench scales. Built with weld-sealed 17-4PH stainless steel, it offers IP68-rated water and corrosion resistance for reliable performance in rugged conditions. Available in 1Klb to 10Klb capacities, the 563YSRS is interchangeable with models like HBM SB3, Rice Lake RLSSB, and Vishay Revere SSB.
Other configurations may be available upon request—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $640.00 |
10-24 | 10 - 24 | 5% $608.00 |
25-49 | 25 - 49 | 8% $588.80 |
50-99 | 50 - 99 | 11% $569.60 |
100+ | 100 + | 15% $544.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YSRS Features
The 563YSRS Single-Ended Beam Load Cell is a compact, low-profile solution designed for medium-capacity applications such as platform scales, hopper scales, and bench scales. Its cost-effective design is built with weld-sealed 17-4PH stainless steel, providing IP68-rated water and corrosion resistance, making it ideal for rugged environments. Available in capacities ranging from 1Klb to 10Klb, the 563YSRS ensures excellent performance and durability under demanding conditions. Additionally, this load cell is interchangeable with models like the HBM SB3, Rice Lake RLSSB, and Vishay Revere SSB, offering versatile compatibility for various industrial needs.
- Material: Stainless Steel
- Rated Capacities: 1Klb, 2Klb, 5Klb,10Klb
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS, and Ex Certified
Available Options: 1Klb, 2Klb, 5Klb & 10Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSRS Load Cell Specifications
Rated Capacity | 1Klb, 2Klb, 5Klb,10Klb |
Full-Scale Output | 2mV/V ± 1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.023% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
563YSRS Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563YSRS-(1-5)klb |
Interchangeable Cross Reference
ANYLOAD 563YSRS Equivalents
Manufacturer | Equivalent Model |
Coti Global | CG-SB3 |
HBM | SB3 |
Rice Lake | RLSSB |
Vishay Revere Transducers | SSB |
