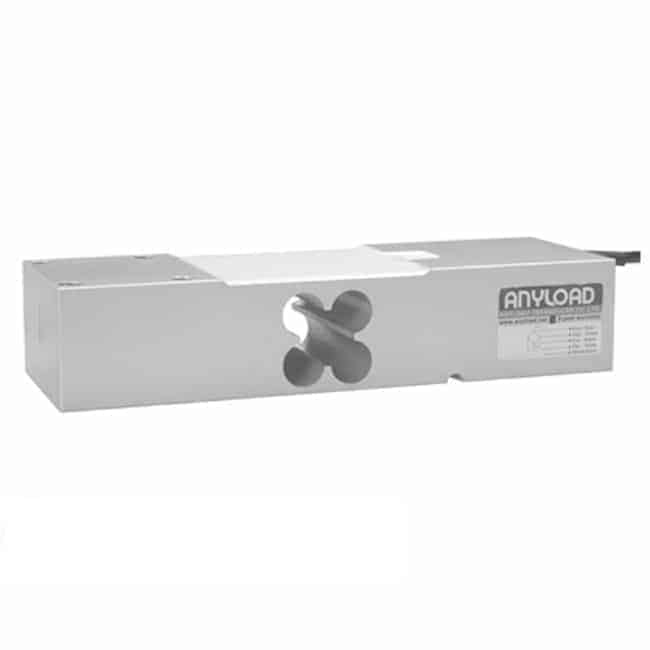

ANYLOAD 108HA Aluminum Single Point Load Cell
The ANYLOAD 108HA single-point load cell offers reliable weighing for a range of applications, especially those involving off-center loads. Available in capacities from 50kg to 1t, its aluminum construction provides a high level of ingress protection (IP66). This product is NTEP and OIML certified and complies with leading industry safety standards.
Other capacities and configurations may be available-please Contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $224.00 |
10-24 | 10 - 24 | 5% $212.80 |
25-49 | 25 - 49 | 8% $206.08 |
50-99 | 50 - 99 | 11% $199.36 |
100+ | 100 + | 15% $190.40 |
SKU: 108HA
Category: Single Point
ANYLOAD 108HA Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 50kg, 100kg, 250kg, 635kg, 1t
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 50kg-250kg capacities: NTEP 1:5 000 Class III, Single Cell; OIML MAA C6, Y=29 000
- 635kg-1t capacities: NTEP 1:4 000 Class III, Single Cell; OIML MAA C4, Y=4 000
- CE and RoHS-Certified
- Imperial threading
- Cable Length: 1.25m
Available Options: 50kg, 100kg, 250kg, 635kg & 1t.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108HA Load Cell Specifications
Rated Capacity | 50kg, 100kg, 250kg, 635kg, 1t |
Reference Max. Platform Size | 550mm x 600mm |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108HA Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
108HA-(50-635)kg |
Only logged in customers who have purchased this product may leave a review.
Related products
-

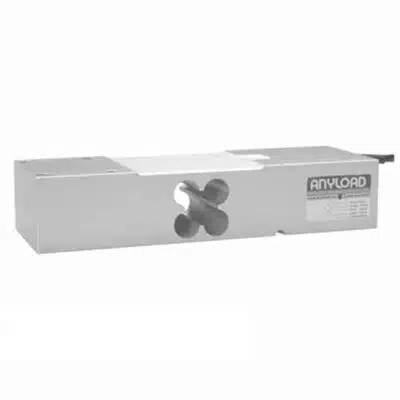

ANYLOAD 108HAUN Aluminum Single Point Load Cell
