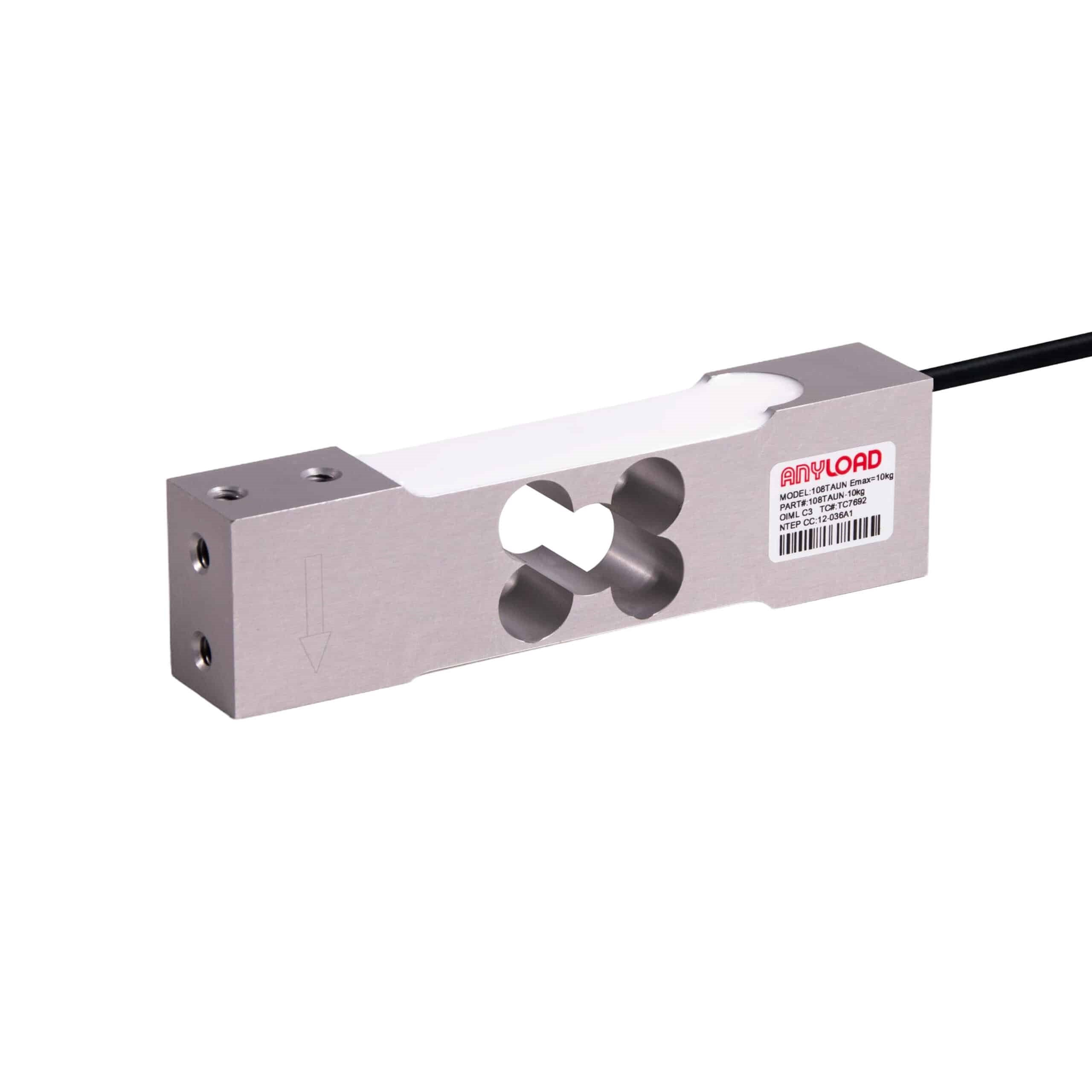

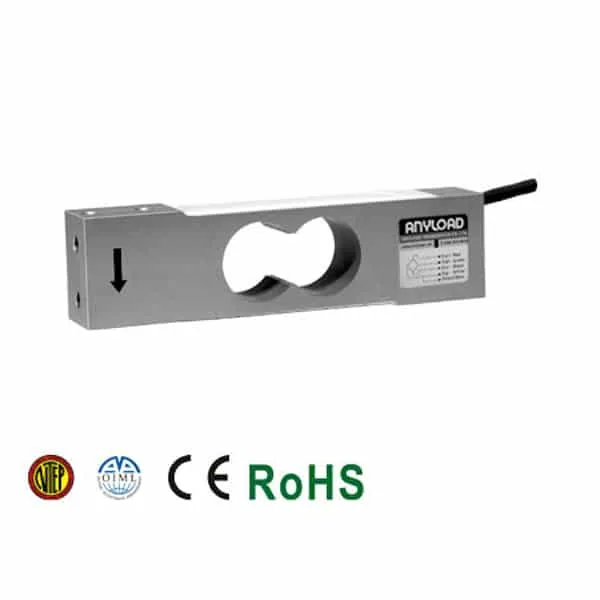

ANYLOAD 108TAUN Aluminum Single Point Load Cell
The ANYLOAD 108TAUN is an NTEP and OIML-approved single-point load cell designed for easy installation and cost-effective, reliable compression weighing. Suitable for a wide range of applications, including platform scales, counting scales, and check weighers, it handles off-center loads efficiently. Available in capacities from 3kg to 200kg, its aluminum body provides IP66-rated ingress protection. The 108TAUN features imperial mounting threads and complies with multiple industry safety standards. For metric threading, consider the 108TA model.
Other capacities and configurations may be available—please Contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $106.00 |
10-24 | 10 - 24 | 5% $100.70 |
25-49 | 25 - 49 | 8% $97.52 |
50-99 | 50 - 99 | 11% $94.34 |
100+ | 100 + | 15% $90.10 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108TAUN Features
- Material: Aluminum, Clear Anodized
- Mounting Threads: Imperial
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
- 3 kg: Certified up to OIML C3
- 5 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
- 50 kg up to & including 200 kg: Certified up to OIML MAA C5, Y=12300
- CE and RoHS Certified
Available Standard Options (NTEP 1:3000 accuracy): 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg & 200kg.
Please Contact us regarding optional accuracy classes for this product.
Specifications
ANYLOAD 108TAUN Load Cell Specifications
Rated Capacity | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg |
Reference Max. Platform Size | 400mm x 450mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108TAUN Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
108TAUN-(3-200)kg |
Interchangeable Cross Reference
ANYLOAD 108TAUN Equivalents
Manufacturer | Equivalent Model |
Artech | 60510 |
Cardinal | TSP |
Coti Global | CG-42 |
HBM | SP4 |
Rice Lake | RL1042 |
Rice Lake | RLSP4 |
Vishay Revere Transducers | 642 |
Vishay Tedea-Huntleigh | 1042 (imperial threads) |
