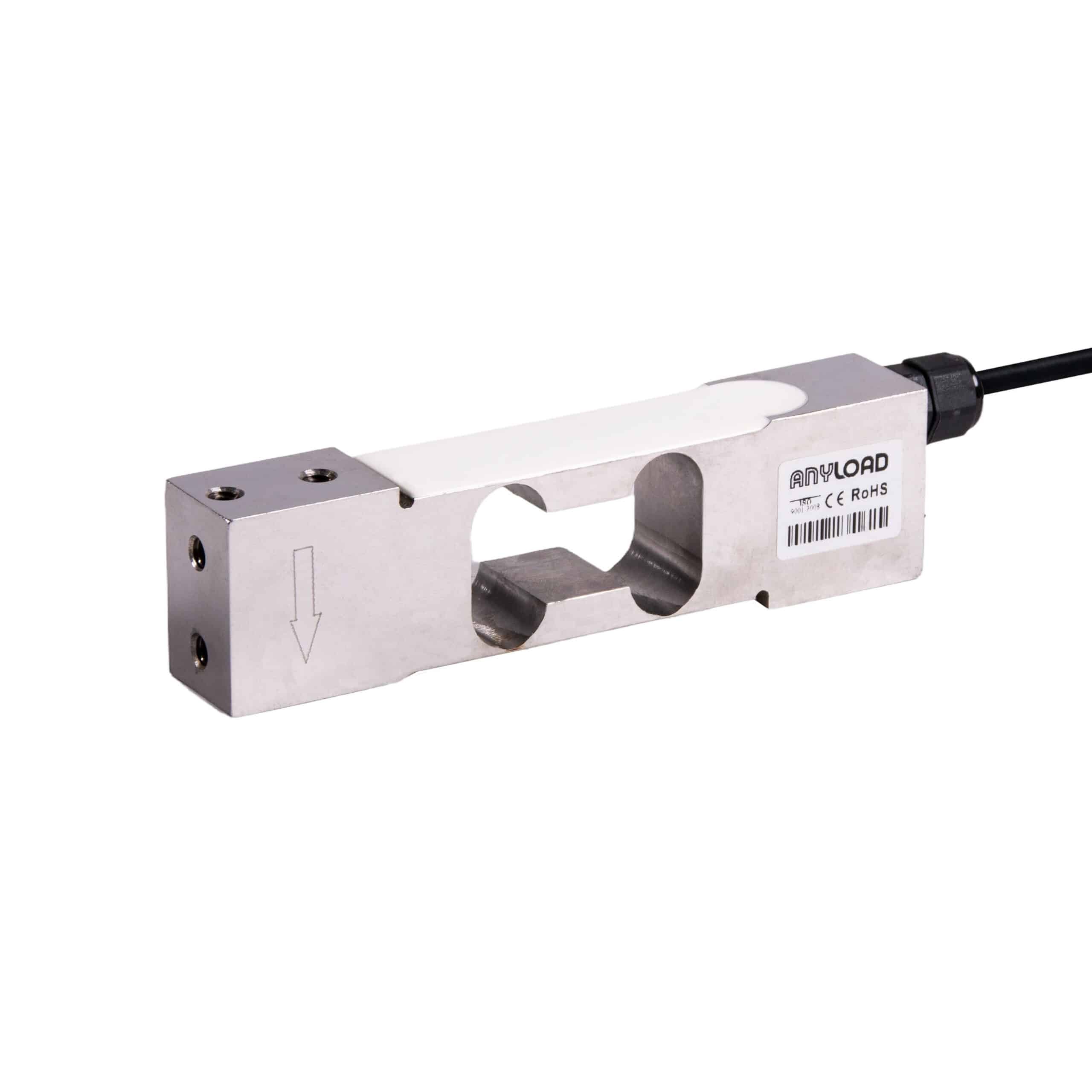

ANYLOAD 108TSUN Stainless Steel Single Point Load Cell
The ANYLOAD 108TSN is made of 2Cr13 stainless steel and available in 5kg-150kg rated capacities. It is capable of withstanding harsh environments and has metric mounting threads. For imperial threads, see the ANYLOAD 108TS.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $273.00 |
10-24 | 10 - 24 | 5% $259.35 |
25-49 | 25 - 49 | 8% $251.16 |
50-99 | 50 - 99 | 11% $242.97 |
100+ | 100 + | 15% $232.05 |
SKU: 108TSUN-YZ
Category: Single Point
ANYLOAD 108TSUN Key Features
- 2Cr13 Stainless steel
- Thread: Imperial
- Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
Available options: 108TSUN-5kg-YZ, 108TSUN-10kg-YZ, 108TSUN-15kg-YZ, 108TSUN-20kg-YZ, 108TSUN-30kg-YZ, 108TSUN-50kg-YZ, 108TSUN-75kg-YZ, 108TSUN-100kg-YZ, 108TSUN-150kg-YZ
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 108TSUN Load Cell Specifications
Rated Capacity | 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg |
Reference Max. Platform Size | 450mm x 500mm |
Full Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
Technical Documents
108TSUN Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108TSUN Interchangeable Cross Reference
Manufacturer | Equivalent Model | Info |
HBM | PW15 | |
Rice Lake | RL1140 | |
Vishay Tedea-Huntleigh | 1140 | |
Rice Lake | RL1385 | RL1385 has 3 mounting holes. ANYLOAD 108TSUN has 2 mounting holes that align with RL1385’s outer 2 mounting holes. Installation should not be affected. |
