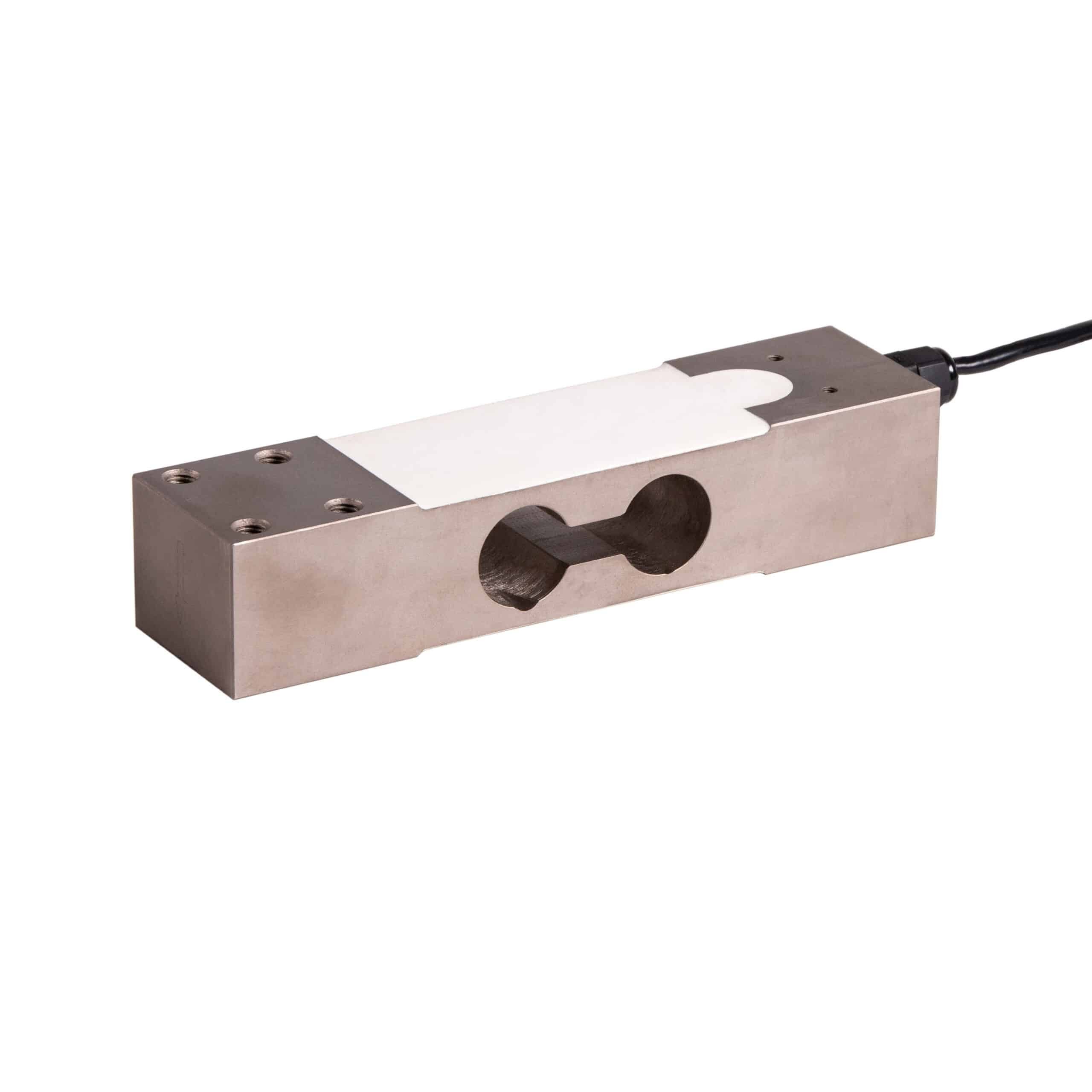

ANYLOAD 108WH Alloy Steel Single Point Load Cell
The 108WH Single Point Load Cell offers durability, accuracy, and reliability to medium-duty weighing. Its alloy steel with nickel-plated element is available in 300kg-1t capacities and offers an ingress protection rating of IP66. All capacities have a standard 2m length cable; the 750kg capacity has a 5m cable option. This model meets leading industry safety standards.
Other configurations may be available—please Contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $316.00 |
10-24 | 10 - 24 | 5% $300.20 |
25-49 | 25 - 49 | 8% $290.72 |
50-99 | 50 - 99 | 11% $281.24 |
100+ | 100 + | 15% $268.60 |
SKU: 108WH
Category: Single Point
ANYLOAD 108WH Features
- Material: Alloy Steel
- Standard Cable 2m
- Rated Capacities: 300kg, 400kg, 500kg, 750kg, 1t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 200%
- Breaking Overload: 400%
- IP Rating: IP66
- CE and RoHS Certified
Available Options: 300kg, 400kg, 500kg, 750kg, 750kg-5m (has 5m cable), 1t
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108WH Load Cell Specifications
Rated Capacity | 300kg, 400kg, 500kg, 750kg, 1t |
Reference Max. Platform Size | 600mm x 700mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | <`± 0.023% |
Input Resistance | 400Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 200% of full scale |
Breaking Overload | 400% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108WH Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
108WH-(300-1000)kg |
