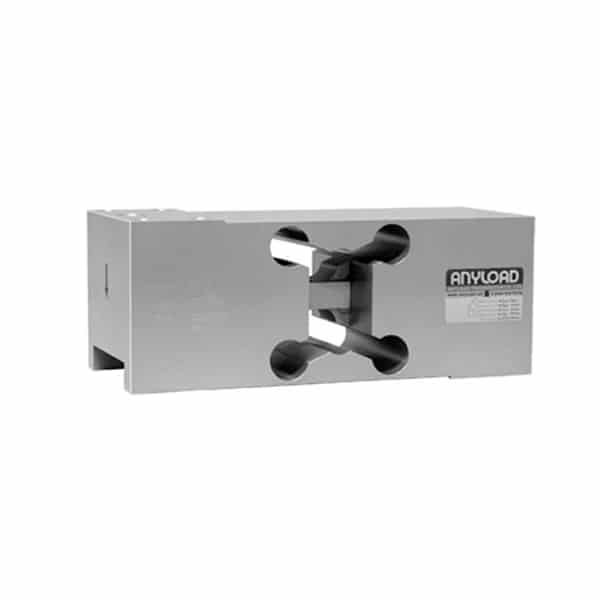

ANYLOAD 651BAUN Aluminum Single Point Load Cell
The ANYLOAD 651BAUN single point load cell is suitable for a wide range of weighing applications, especially those involving off-center loads. Available in capacities from 100kg to 1000kg, its aluminum construction is rated IP67. The 651BAUN has imperial mounting threads.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $280.00 |
10-24 | 10 - 24 | 5% $266.00 |
25-49 | 25 - 49 | 8% $257.60 |
50-99 | 50 - 99 | 11% $249.20 |
100+ | 100 + | 15% $238.00 |
SKU: 651BAUN
Category: Single Point
ANYLOAD 651BAUN Key Features
- Aluminum material
- Thread: Imperial
- Rated Capacities: 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
Available options: 651BAUN-100kg, 651BAUN-200kg, 651BAUN-300kg, 651BAUN-500kg, 651BAUN-635kg, 651BAUN-1000kg
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 651BAUN Load Cell Specifications
Rated Capacity | 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t |
Reference Max. Platform Size | 750mm x 750mm |
Full Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
651BAUN Single Point Load Cell Datasheet |
Interchangeable Cross Reference
ANYLOAD 651BAUN Interchangeable Cross Reference
Manufacturer | Equivalent Model |
ANYLOAD | 108UAUN |
Flintec | PCB (has a stainless steel element and is hermetically sealed) |
HBM | PW12B |
HBM | PW12 |
Rice Lake | RL1250 |
Vishay Celtron | LOC |
VIshay Revere Transducers | 652 |
Vishay Sensortronics | 60060 |
Vishay Tedea-Huntleigh | 1250 |
