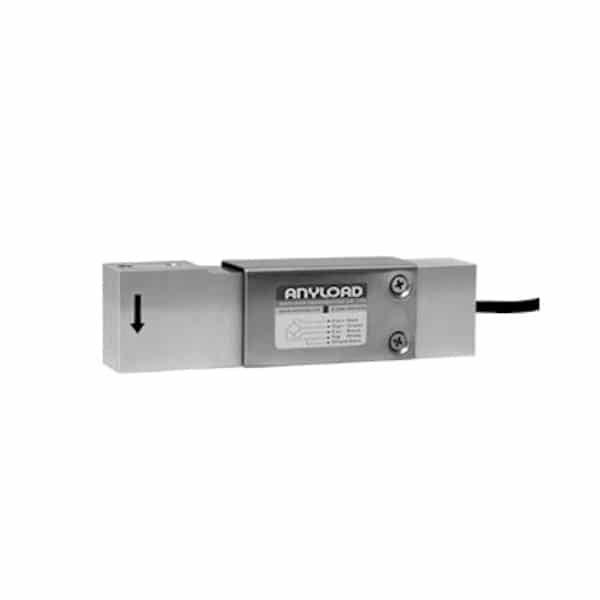

ANYLOAD 651TAUN Aluminum Single Point Load Cell

$188.00

The ANYLOAD 651TAUN single point load cell is suitable for a wide range of weighing applications, especially those involving off-center loads. Available in capacities from 10kg to 100kg, its aluminum construction is rated IP67. Complies with multiple industry standards. The 651TAUN has imperial mounting threads; for metric, see the 651TA.

Clear
SKU: 651TAUN Category:

ANYLOAD 651TAUN Key Features

  • Aluminum material
  • Thread: Imperial
  • Rated Capacities: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67

Available options: 651TAUN-10kg, 651TAUN-15kg, 651TAUN-20kg, 651TAUN-30kg, 651TAUN-50kg, 651TAUN-100kg

Please contact us with any product interfacing inquiries.



Specifications

ANYLOAD 651TAUN Load Cell Specifications

Rated Capacity 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
Reference Max. Platform Size 450mm x 500mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 150Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed, Potted
IP Rating IP67

Technical Documents

651TAUN Single Point Load Cell Datasheet
Certificate Icon CE Certificate of Conformity
RoHS Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 651TAUN Interchangeable Cross Reference

Manufacturer Equivalent Model
Coti Global CG-40
Rice Lake RL1040
Vishay Celtron LOC
Vishay Tedea-Huntleigh 1040  (mounting hole: 1/4”-28UNF)
Vishay Tedea-Huntleigh 1041  (mounting hole: 1/4”-28UNF)
