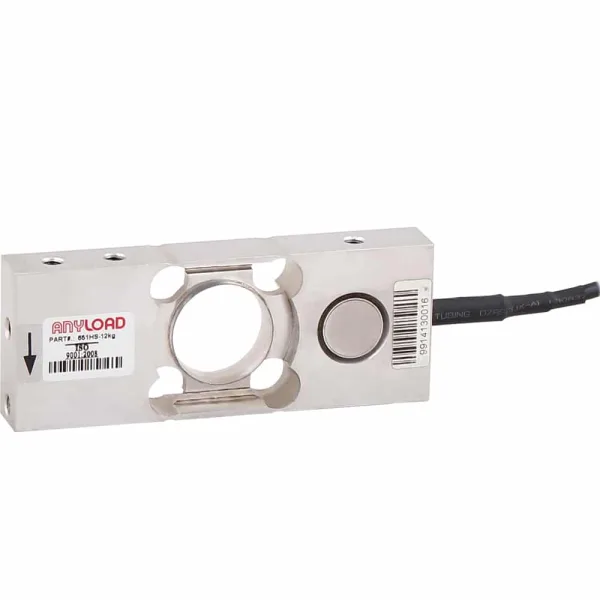

ANYLOAD 651HS Stainless Steel Single Point Load Cell
The 651HS Single Point Load Cell is an OIML-certified C9 model, offering the highest accuracy for legal-for-trade applications in the 10kg to 100kg range. Built with IP68/69K-rated 17-4PH stainless steel, it ensures durability and reliability in demanding environments. This load cell is ideal for applications requiring precise measurement of small forces, available in capacities from 6kg to 60kg.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $702.00 |
| 10 - 24 | $666.90 |
| 25 - 49 | $645.84 |
| 50 - 99 | $624.78 |
| 100 + | $596.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651HS Features
The 651HS Single Point Load Cell is an OIML-certified C9 model, delivering the highest accuracy available for legal-for-trade applications in the 10kg to 100kg range. Constructed with IP68/69K-rated 17-4PH stainless steel, this load cell is designed to withstand extreme conditions while providing exceptional durability and reliability. With temperature compensation from 14°F to 122°F and a 150% safe overload capacity, the 651HS is the ultimate weighing solution for a wide range of applications, including those requiring precise measurement of small forces. Available in capacities from 6kg to 60kg, this load cell ensures consistent and accurate performance across various industrial and commercial settings.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 6kg, 12kg, 20kg, 30kg, 50kg, 60kg
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
Available Options: 6kg, 12kg, 20kg, 30kg, 50kg, & 60kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651HS Single Point Load Cell Specifications
| Rated Capacity | 6kg, 12kg, 20kg, 30kg, 50kg, 60kg |
| Reference Max. Platform Size | 350mm x 350mm |
| Full-Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
651HS Stainless Steel Single Point Load Cell Datasheet |
 |
OIML Certificate of Conformity NTEP Certificate of Conformity |
3D Drawing
 |
651HS-(6-30)kg |
|
651HS-(50-60)kg |
Interchangeable Cross Reference
ANYLOAD 651HS Equivalents
| Manufacturer | Equivalent Model |
| Vishay Revere Transducers | HPSM |
