ANYLOAD AN310 Panel Mount Indicator

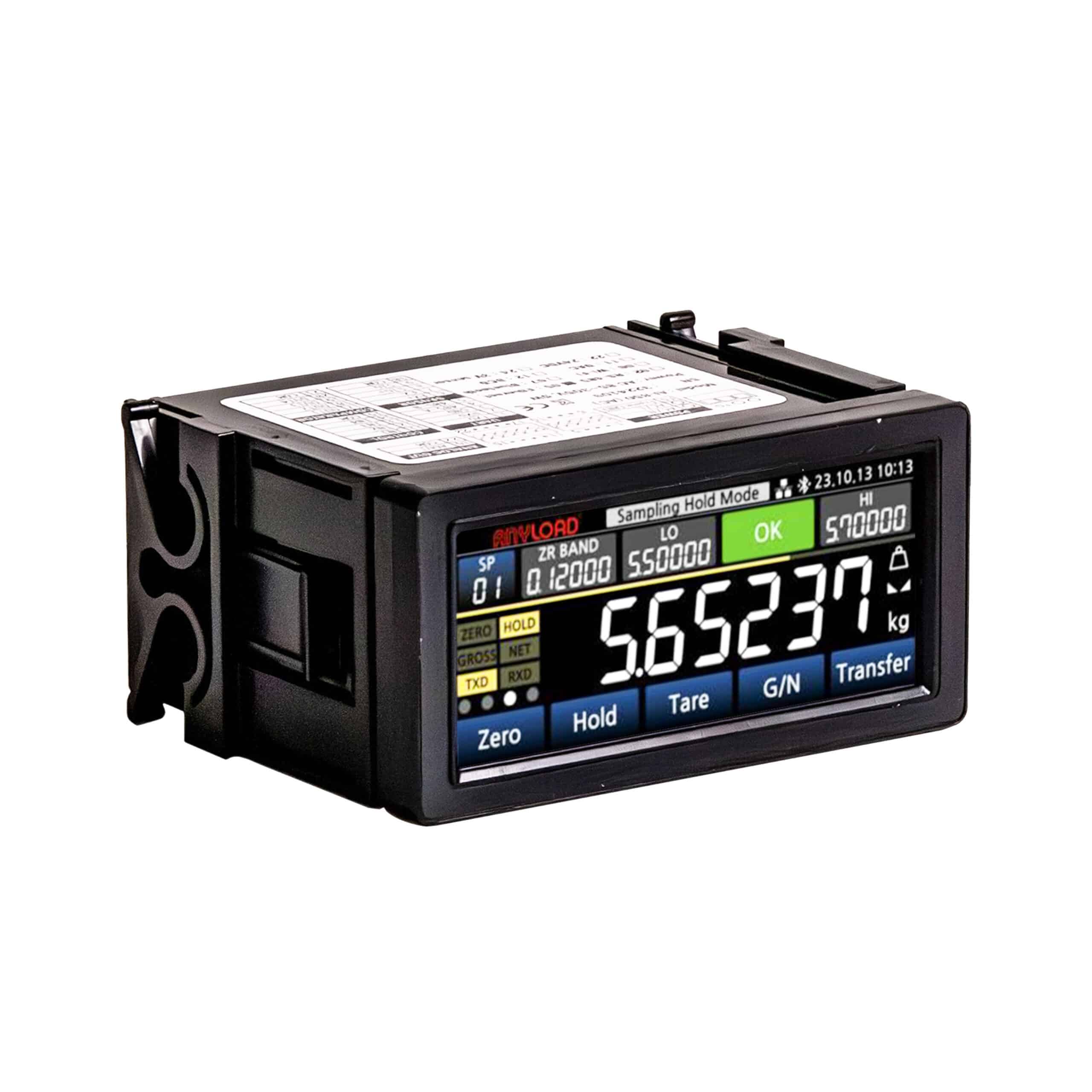

The ANYLOAD AN310 is a precision panel mount indicator engineered for advanced industrial weighing and automation control. It features a vibrant 3.46″ IPS touch screen that delivers clear visibility and intuitive operation in demanding environments. Equipped with an ultra-fast 5 kHz ADC, the AN310 ensures precise, real-time data capture for dynamic applications. Its robust design supports stable and consistent performance even under continuous operation. Ideal for process control, batching, and automated weighing systems, the AN310 enhances both accuracy and efficiency. This indicator combines innovation, reliability, and user-friendly functionality for modern industrial needs.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,324.00 |
| 10 - 24 | $1,257.80 |
| 25 - 49 | $1,218.08 |
| 50 - 99 | $1,178.36 |
| 100 + | $1,125.40 |
ANYLOAD AN310 Panel Mount Indicator Features
The ANYLOAD AN310 is a high-precision panel mount indicator built for advanced industrial weighing and automation. It’s 3.46″ IPS touch screen and ultra-fast 5 kHz ADC deliver exceptional accuracy and real-time responsiveness for dynamic weighing applications.
- Internal resolution of 16 million counts ensures exceptional precision and stability in measurement
- Ultra-high-speed 5 kHz ADC enables fast, accurate weight capture, ideal for dynamic weighing scenarios.
- Simultaneous multi-output support allows seamless integration with multiple systems and protocols.
- 4 digital inputs (photocoupler) and 4 digital outputs (PhotoMOS relay) provide flexible external control and system interaction.
- 10-point calibration capability provides precise linearity across the full measuring range.
- Password-protected calibration
- Dual calibration modes support both real-load and digital methods for flexible installation and maintenance.
- Stores up to 3 calibration backups with easy restore and automatic/manual save options
Specifications
ANYLOAD AN310 Panel Mount Indicator General Specifications
| Excitation Voltage | 5VDC, up to 8 x 350Ω |
| Power Supply & Consumption | 18 – 36 VDC, 5W |
| Non-linearity | 0.01% FS |
| A/D Sample Rate | up to 5000 Hz |
| IP Rating | IP40 |
| Enclosure Material | ABS |
| Operating Temperature | -4°F – 140°F /-20°C – 60°C |
| Humidity | 85% (non-condensing) |
| Analog Signal Input Range | 0-39mV (-19.5-19.5 mV) |
| Unit of Measurement | g, kg, ton, lb, N, kN, kg*m, N*m, lb*in, lb*ft |
| Analogue Output (Optional) | 0-10VDC; 0-5VDC; -5-5VDC; -10-10VDC; 4-20mA |
| Display Type | 3.46″ color IPS LCD with touch screen |
| Resolution | Internal: 16,000,000 counts / Display: 999,999 |

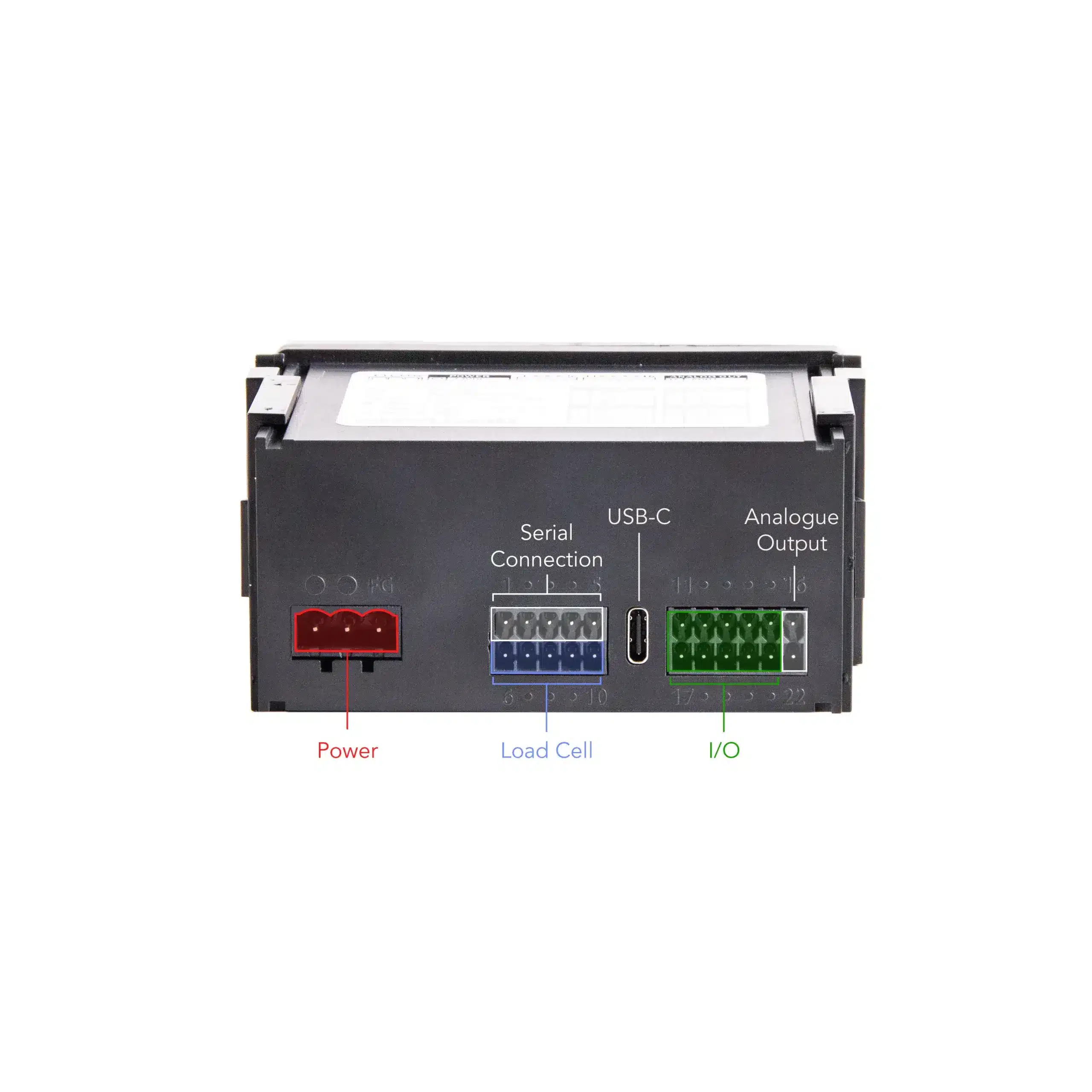

| Communication Port | RS-232 (default); RS-485 (Modbus-RTU); Ethernet (TCP/IP & Modbus-TCP) |
Technical Documents
 |
AN310 Panel Mount Indicator Datasheet |
 |
AN310 Panel Mount Manual |
 |
AN310 Calibration Video |
Brochure
|
AN310 Panel Mount |
