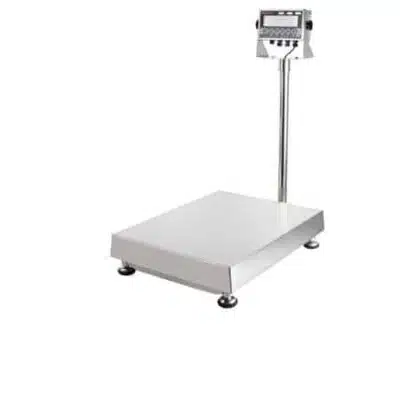

ANYLOAD TNS4646 Stainless Steel Bench Scale
The stainless steel-constructed ANYLOAD TNS4646 bench scale comes with bracket, 66cm (26″) column, column holder, and level bubble. Its heavy-gauge stainless steel pan has a 46cm x 46cm surface area.
The internal load cells are NTEP 1:4000 Class III, certified from 75kg-400kg. Load cells are also CE and RoHS certified, Measurement Canada, Measurement Ukraine and Measurement Spain certified. Breaking overload is 150% capacity.
Indicator is sold separately
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $985.00 |
10-24 | 10 - 24 | 5% $935.75 |
25-49 | 25 - 49 | 8% $906.20 |
50-99 | 50 - 99 | 11% $876.65 |
100+ | 100 + | 15% $837.25 |
SKU: TNS4646
Category: Bench Scales
ANYLOAD TNS4646 Key Features
- Measurement Canada and NTEP certified load cells, capacities 60kg, 150kg and 300kg, regular or small envelope (SE)
- Platform size 18 inch x 18 inch
- Heavy gauge stainless steel (SS304) construction
- Heavy gauge (1/14″ thickness) stainless steel (SS304) platform

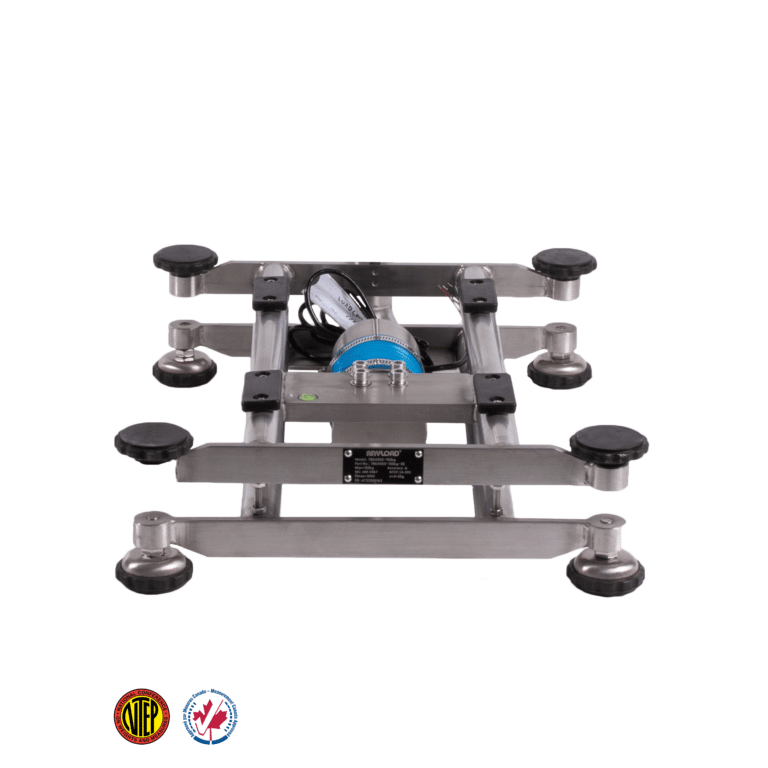

- Supplied with stainless steel bracket and column (26″), mild steel column holder, level bubble and load cells
- Operating temperature 0º – 40ºC / 32º – 104ºF
- Breaking Overload: 150% of full scale
- NTEP certified load cells from 75kg-400kg
- CE, RoHs, Measurement Ukraine and Measurement Spain certified load cells
- Indicator is sold separately; available with the -FP3 option
Available options: TNS4646-60kg, TNS4646-150kg-SE, TNS64646-300kg-SE, TNS4646-FP3-60kg, TNS4646-FP3-150kg-SE, TNS4646-FP3-300kg-SE
Contact us for any inquiries on load cell interfacing.
Specifications
TNS4646 Specifications
Equivalent Model | Platform Size | Capacity |
TNS3030 | 30cm x 30cm/11.81in x 11.81in | 15kg, 30kg, 60kg |
TNS4050 | 40cm x 50cm/15.75in x 19.69in | 60kg, 150kg, 300kg |
TNS4646 | 46cm x 46cm/18.11in x 18.11in | 60kg, 150kg, 300kg |
TNS4660 | 46cm x 60cm/18.11in x 23.62in | 60kg, 150kg, 300kg |
TNS6060 | 60cm x 60cm/23.62in x 23.62 | 150kg, 300kg |
Technical Documents
TNS Series Bench Scale Datasheet | |
TNS Series Bench Scale Brochure TNS-TN Bench Scale Installation Guide 805TS and 805BS indicator manual |
|
NTEP Certificate of Conformance Measurement Canada Approval |
