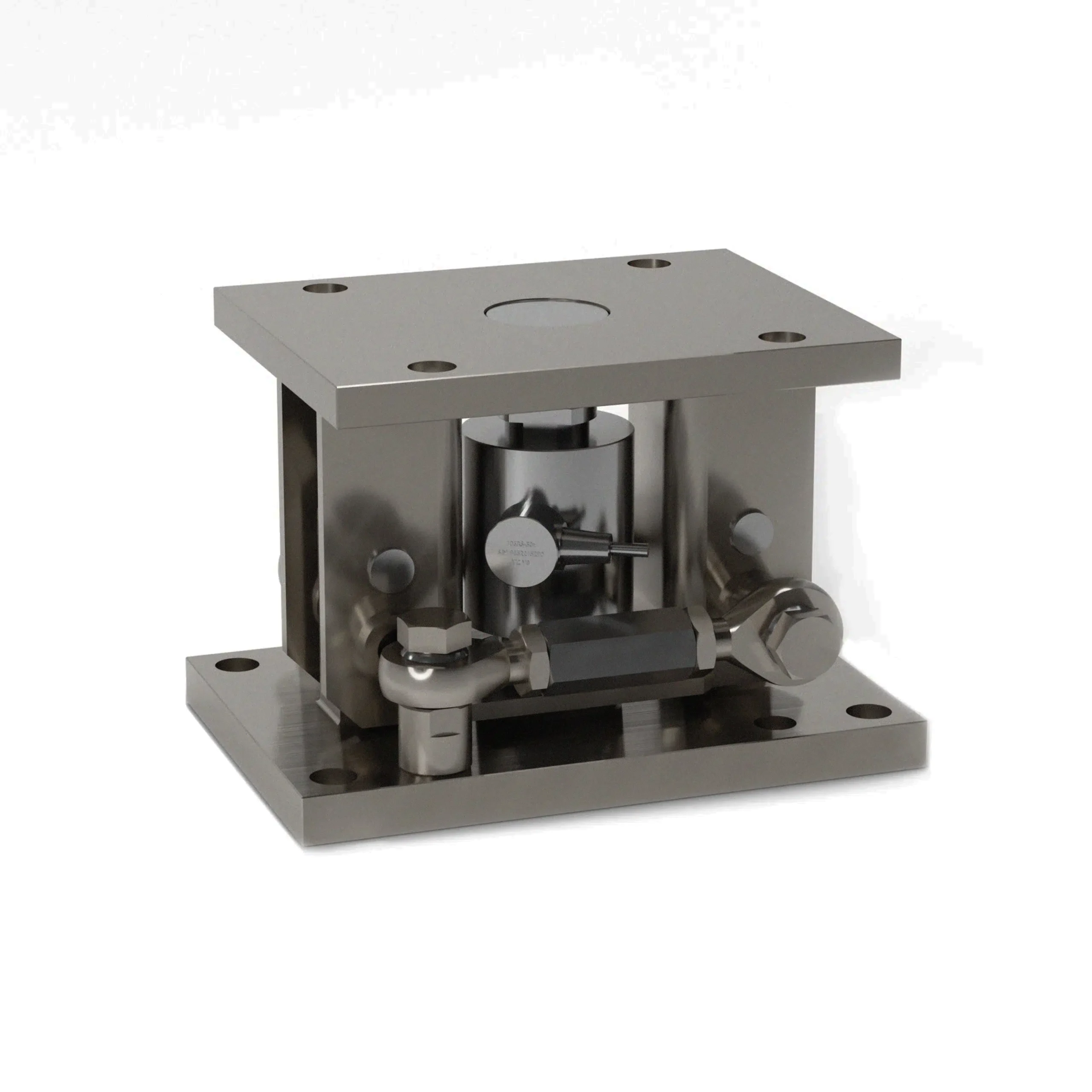

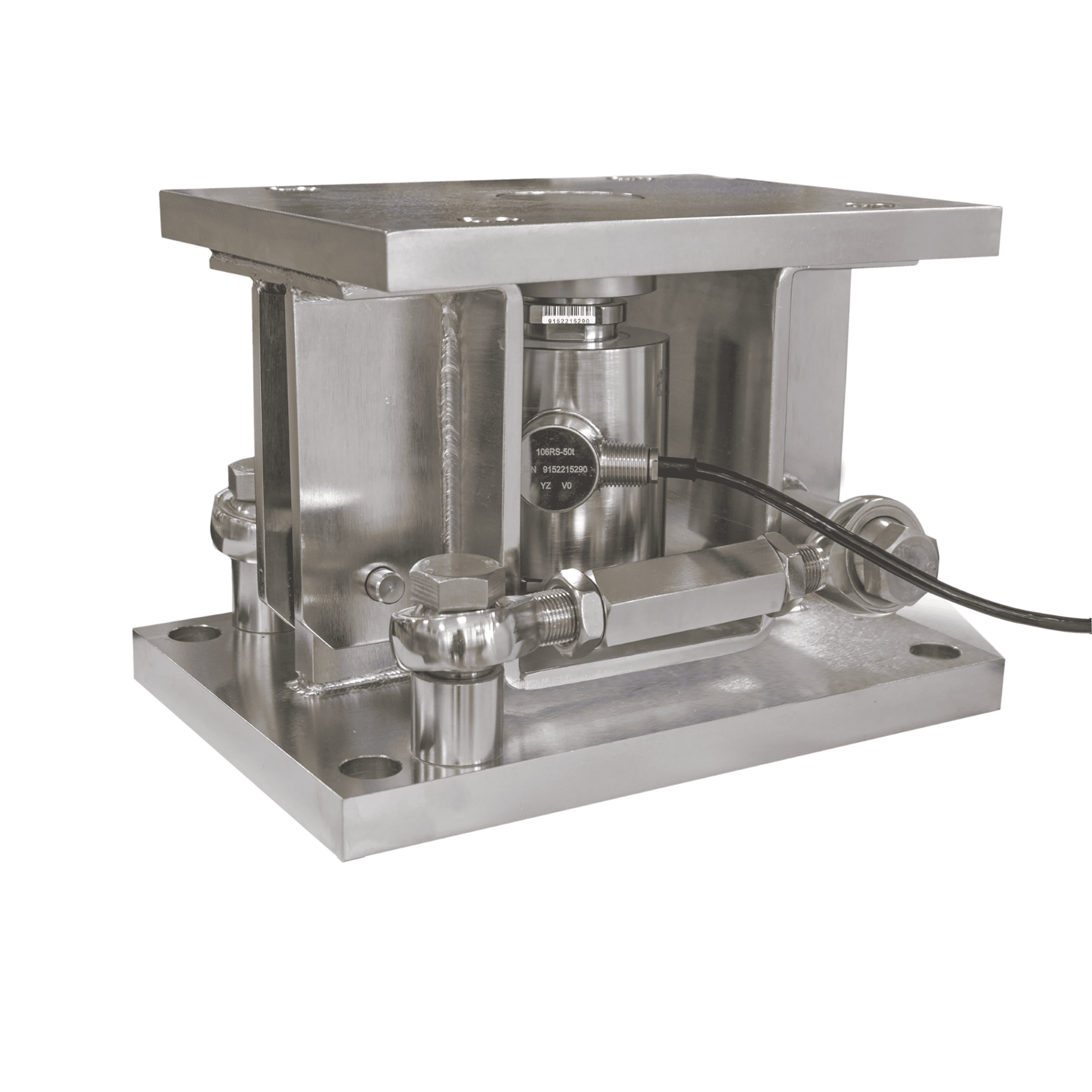

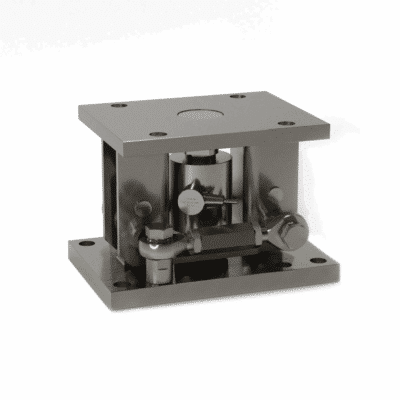

ANYLOAD 106RSM1 Compression Weigh Module
ANYLOAD 106RSM1 Heavy-duty weighing module designed for hoppers and tanks with capacities from 30t to 100t. Features dynamic weighing, uplifting protection, and a center-pivoted design to accommodate thermal expansion. Built from corrosion-resistant stainless steel, it’s ideal for outdoor, corrosive, or seismically active environments. Suitable for chemical, agrifood, oil/gas, and concrete industries.
| Quantity | Price |
|---|---|
| 1 - 9 | $4,258.00 |
| 10 - 24 | $4,045.10 |
| 25 - 49 | $3,917.36 |
| 50 - 99 | $3,789.62 |
| 100 + | $3,619.30 |
ANYLOAD 106RSM1 Compression Weigh Module Features
Features:
- High Capacity (30t-100t)
- Dynamic Weighing
- Uplifting Protection
- Center-pivoted to tolerate thermal expansion
- Corrosion resistance (stainless steel)
- Optional: Stabilizer rod to restrain lateral forces in dynamic applications
- Assembly: 106RS rocker pin load cell & upper/lower mounting
Applications:
- Heavy-capacity hopper/tank weighing (max 700Klb)
- Industries: Chemical, Agrifoods, Oil/Gas, Concrete
- Suitable environments: Outdoor, Corrosive, Seismically Active
Load Cell Certification:
- NTEP & OIML up to 50t; CE certified
- ATEX, FM, IECEx available upon request
- Load cell is not included
Available Options: (30-40)t, 50t & 100t.
Please contact us with any product-related questions.
Technical Documents
 |
ANYLOAD 106RSM1 Weigh Module Datasheet |
