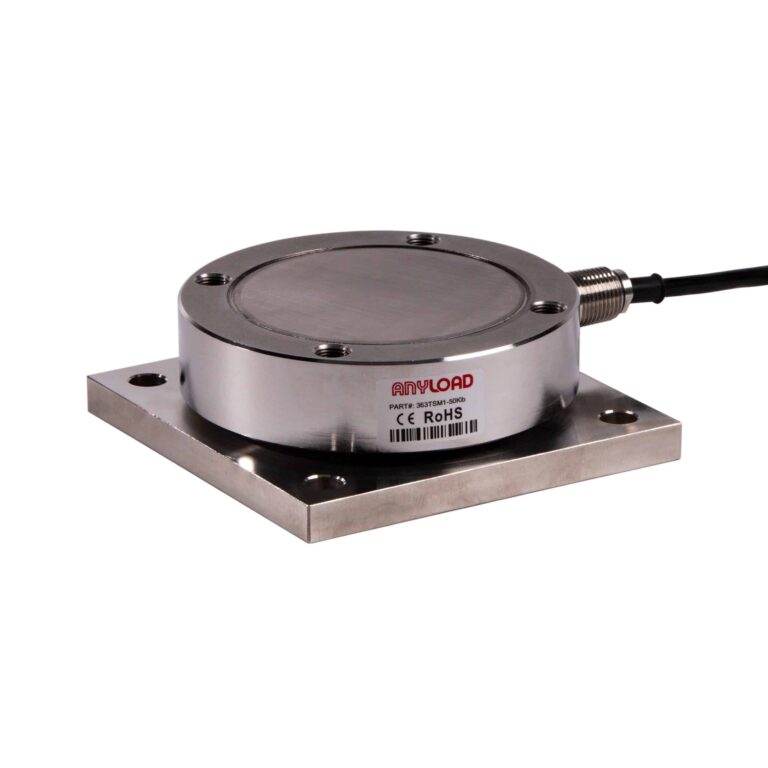

 | 363TSM1 THINWEIGH™ Compression Weigh Module FeaturesThe ANYLOAD 363TSM1 ThinWeigh™ is a leading… +more 363TSM1 THINWEIGH™ Compression Weigh Module FeaturesThe ANYLOAD 363TSM1 ThinWeigh™ is a leading high-performance, ultra-low profile, integrated compression weigh module designed for tank, hopper, and vessel weighing applications. With its patented internal design, it significantly improves accuracy and repeatability over traditional pancake/low-profile weigh module designs, ensuring superior performance even under variable loading conditions and temperature fluctuations. The ThinWeigh™ boasts an IP68/IP69K rating, making it ideal for use in harsh environments where ultra-low profile structural elements are required. This advanced weigh module is a superior alternative to conventional weigh modules, offering enhanced precision and reliability for demanding industrial applications.High Capacity Ultra Low Profile Mount, ideally suited for tank, hopper, and vessel weighing304 Stainless Steel, Hermetically Sealed construction to IP68/IP69KIncorporated Rocker Pin allowing for 360º Vessel Thermal ExpansionRocker Pin Allows up to 3º of Tilt of Vessel Leg from Base PlateSide load and Uplift Protection up to 50% of the Rated CapacityIntegrated threaded top holes, eliminating the need for separate top plates to maintain compact assemblyIntegrates the included 363TS into its structureOrder the top mounting plate separatelyAvailable Options: 1klb, 2.5klb, 5klb, 10klb, 25klb, 50klb, 100klb & 200klb.Available Top Plate Options: TP-363TSM1-1-2.5Klb, TP-363TSM1-5-10Klb, TP-363TSM1-25-50Klb, TP-363TSM1-100Klb, TP-363TSM1-200KlbAvailable capacities and configurations may vary- please contact us before ordering. -less | Price: $222.00-$7,616.00 | |
 | ANYLOAD 363YH FeaturesThe ANYLOAD 363YH tension and compression load cell is a… +more ANYLOAD 363YH FeaturesThe ANYLOAD 363YH tension and compression load cell is a universal solution for high-capacity weighing and force measurement across a wide range of applications. Designed with a low-profile disk/canister shape, this load cell offers exceptional versatility with multiple mounting options, making it adaptable to various setups. Its IP67-rated alloy steel construction is weld-sealed, providing high resistance to water immersion, dust, and other harsh environmental conditions. The 363YH is available in capacities ranging from 1t to 200t, ensuring it can meet the demands of both standard and heavy-duty applications. Compliant with leading international safety standards, this load cell is engineered for durability and precision, making it a reliable choice for challenging conditions.Material: Alloy steel with nickel-plated elementAvailable Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t.Full-Scale Output: 2mV/V ± 1%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE and RoHS-certifiedATEX, FM, IECEx available upon requestAvailable Options: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, & 200t.Please contact us with any product-related questions including availability of other capacities and options. -less | Price: $914.00-$7,456.00 | |

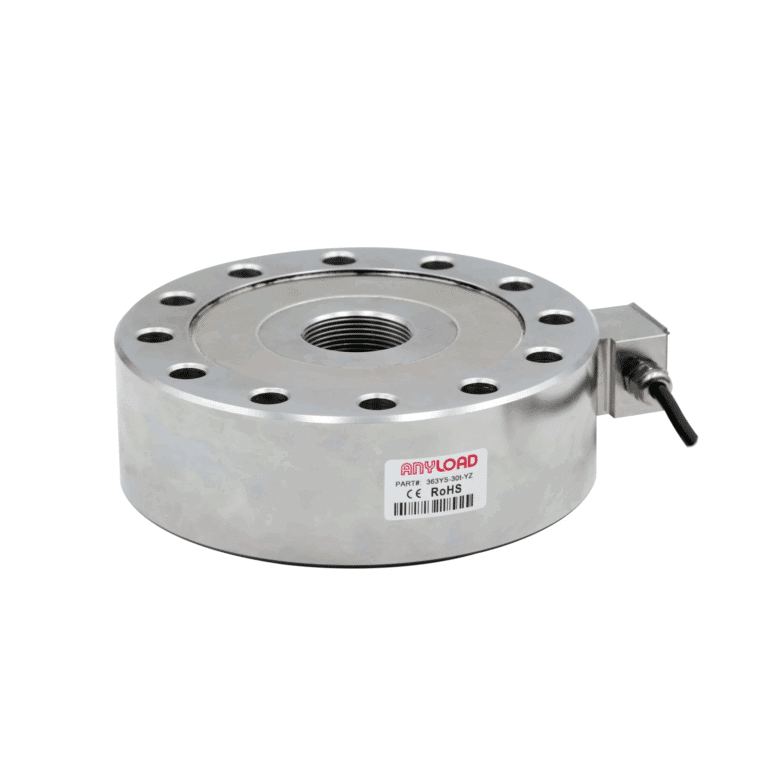

 | ANYLOAD 363YS Load Cell FeaturesThe ANYLOAD 363YS tension/compression load cell is a… +more ANYLOAD 363YS Load Cell FeaturesThe ANYLOAD 363YS tension/compression load cell is a versatile, high-capacity solution engineered for precise weighing and force measurement across demanding industrial applications. Built with a rugged stainless-steel, low-profile disk/canister design, it delivers exceptional durability and long-term stability even in harsh environments. Its IP68 protection rating ensures reliable performance against water, dust, and challenging outdoor or washdown conditions. Available in an extensive range of rated capacities from 1 ton up to 300 tons, it offers flexibility for both light and extremely heavy-duty requirements.Material: Stainless SteelAvailable Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t.Full-Scale Output: 2.0mV/V ± 1%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP68CE and RoHS-certifiedATEX, FM, IECEx available upon requestAvailable Options: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, & 200t.Please contact us with any product-related questions including availability of other capacities and options. -less | Price: $914.00-$7,456.00 | |
 | ANYLOAD 535AHM2 FeaturesMaterial: Alloy steelCapacities: 5t, 10t, 15t, 20t, 30t, 50t, 100tCE… +more ANYLOAD 535AHM2 FeaturesMaterial: Alloy steelCapacities: 5t, 10t, 15t, 20t, 30t, 50t, 100tCE , RoHS and Ex certified load cellsLoad pin and shackle integrationBobbin design provides high accuracy and repeatabilityHigh tensile shackle meets ISO2415-2004 requirementsBridge Impedance: 350 OhmsFull Scale Output: 2.5mV/V ± 5%Non-linearity: ≤ 1% of full scaleRepeatability: ≤ 0.5% of full scaleHysteresis Error: ≤ 1% of full scaleTest Load: 2 times of the rated capacityTotal Error: 1% of full scaleIP Rating: IP67Available Options: 5t, 10t, 15t & 20t.Also available in limited quantities, Contact Us for ordering/stock information): 30000kg -less | Price: $766.00-$1,834.00 | |
 | ANYLOAD 535TS FeaturesMaterial: 2Cr13 Stainless SteelRated Capacities: 2t, 5t, 10t, 20t, 40t… +more ANYLOAD 535TS FeaturesMaterial: 2Cr13 Stainless SteelRated Capacities: 2t, 5t, 10t, 20t, 40t, 70t, 100tFull-Scale Output: 1mV/V ± 10%Safe Overload: 150% of full scaleBreaking Overload: 400% of full scaleIP Rating: IP67CE, RoHS, and Ex CertifiedAvailable Options: 2t, 5t, 10t, 20t, 40t, 70t & 100t.Please contact us with any product-related questions. -less | Price: $722.00-$2,048.00 | |
 | ANYLOAD 563FSAS FeaturesThe 563FSAS is a high-performance single-ended beam load cell crafted… +more ANYLOAD 563FSAS FeaturesThe 563FSAS is a high-performance single-ended beam load cell crafted from durable stainless steel, making it ideal for precise weighing in tough industrial settings. Built to handle demanding conditions, it ensures consistent and dependable load measurement across a wide range of applications. Its compact design makes it especially suitable for space-constrained systems without compromising on strength or accuracy. Engineered with strong overload protection, it safeguards performance even under unexpected stress. The advanced environmental sealing enhances durability by protecting internal components from moisture, dust, and harsh elements. With its combination of precision, resilience, and compact construction, the 563FSAS is a reliable solution for industrial weighing needs.Material: 2Cr13 Stainless SteelRated Capacities: 2.5klbFull-Scale Output: 0.4mV/V ± 0.25%Safe Overload: 200% of full-scaleBreaking Overload: 500% of full scaleIP Rating: IP66CE, RoHS, and Ex certifiedATEX, FM, IECEx available upon requestAvailable Options: 2.5Klb-YZVersion A (default) has the following color code option: Exc+: Red, Exc-: Black, Sig+: Green, Sig-: White; Shield: BareVersion B (Contact us to order) has color code option: Exc+: Green, Exc-: Black, Sig+: White, Sig-: Red; Shield: Bare -less | Price: $950.00 | |

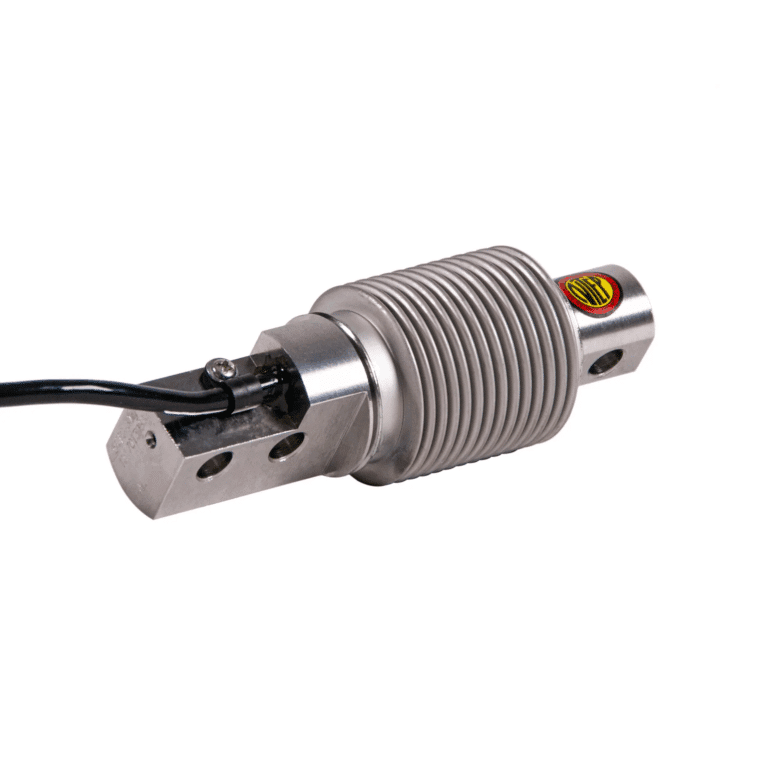

 | ANYLOAD 563RS FeaturesThe ANYLOAD 563RS load cell is a highly reliable and… +more ANYLOAD 563RS FeaturesThe ANYLOAD 563RS load cell is a highly reliable and versatile solution, widely used in applications such as tank weighing, batching scales, and platform scales. Its time-tested design, combined with IP68-rated washdown water and corrosion-resistant stainless steel construction, ensures the highest level of ingress protection, making it ideal for harsh industrial environments. The 563RS is compatible with several other models, including the Coti Global CG-Z6, Rice Lake RLHBB, and Vishay Revere SHB. When paired with the ANYLOAD 563RSM5 weigh module, this single-ended beam load cell delivers accurate and reliable compression weighing. This combination makes the 563RS a preferred choice for demanding industrial applications around the world.Material: Stainless SteelRated Capacities: 5kg,10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kgFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68NTEP: 5kg-50kg: NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell100kg-500kg: NTEP 1:4500 Class III, Single Cell; NTEP 1:10000 Class III, Multiple CellOIML: 10kg-50kg: OIML MAA C6, Y=30000; 100kg-500kg: OIML MAA C4, Y=30000NTEP, CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 5kg,10kg, 20kg, 50kg, 100kg, 200kg, 350kg, & 500kg.Installation Module: ANYLOAD 563RSM5Contact us with any product-related questions. -less | Price: $490.00 | |
 | ANYLOAD 563RSM5 Weigh ModuleThe ANYLOAD 563RSM5 Stainless Steel Compression Weigh Module supports… +more ANYLOAD 563RSM5 Weigh ModuleThe ANYLOAD 563RSM5 Stainless Steel Compression Weigh Module supports the 563RS single-ended beam load cell in structures. It features both overload protection and 50% rated load anti-lifting protection.Material: 304 Stainless SteelFits Capacities: 5-200kgSelf-checking with 50% rated load anti-lifting protectionMulti-directional overloading isolation for the load cellEquipped with lateral stopsProtects load cells from stray currents563RS Load Cell Certifications: CE, RoHS, and ExLoad cell not includedAvailable Option: 5-200kgContact us for any inquiries on load cell interfacing. -less | Price: $616.00 | |

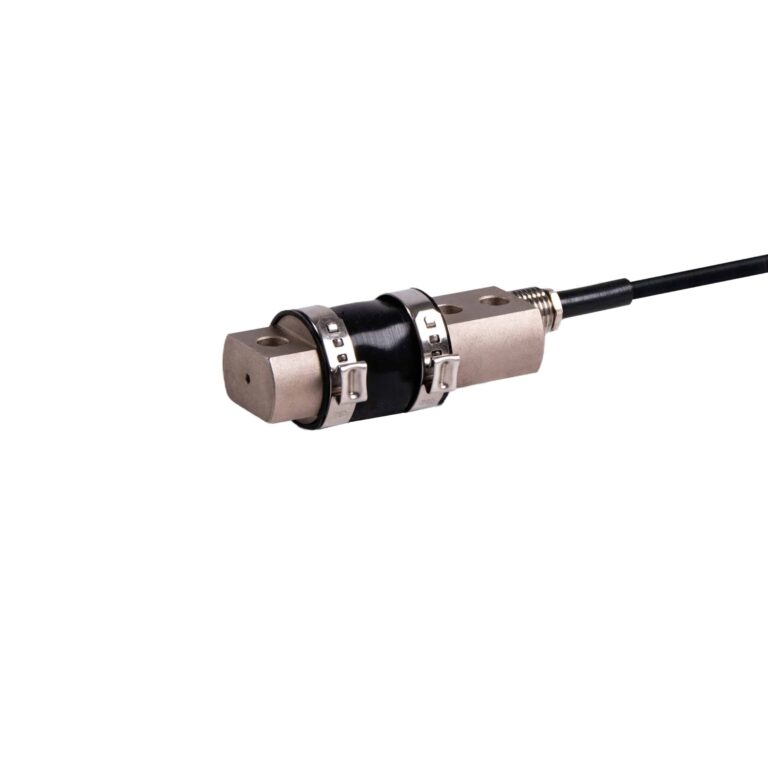

 | ANYLOAD 563SH FeaturesThe ANYLOAD 563SH Alloy Steel Single-Ended Beam Load Cell is… +more ANYLOAD 563SH FeaturesThe ANYLOAD 563SH Alloy Steel Single-Ended Beam Load Cell is a compact and reliable solution for lower-capacity applications, including conveyor scales, platform scales, and process weighing. Engineered with IP65-rated water-resistant alloy steel, it ensures durability and accuracy even in challenging environments. The load cell’s robust design also includes a 150% safe overload capacity, making it ideal for various industrial applications. It is interchangeable with models such as the Rice Lake RL50210 and Vishay Revere 5503, offering versatile compatibility. For applications requiring wider dimensions, consider the ANYLOAD 563SHBB model.Material: Alloy SteelRated Capacities: 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 300lb, 500lbFull-Scale Output: 3mV/V ± 10%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP65CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 25lb, 50lb, 100lb, 150lb, 250lb, & 500lb.Contact us with any product-related questions. -less | Price: $292.00 | |

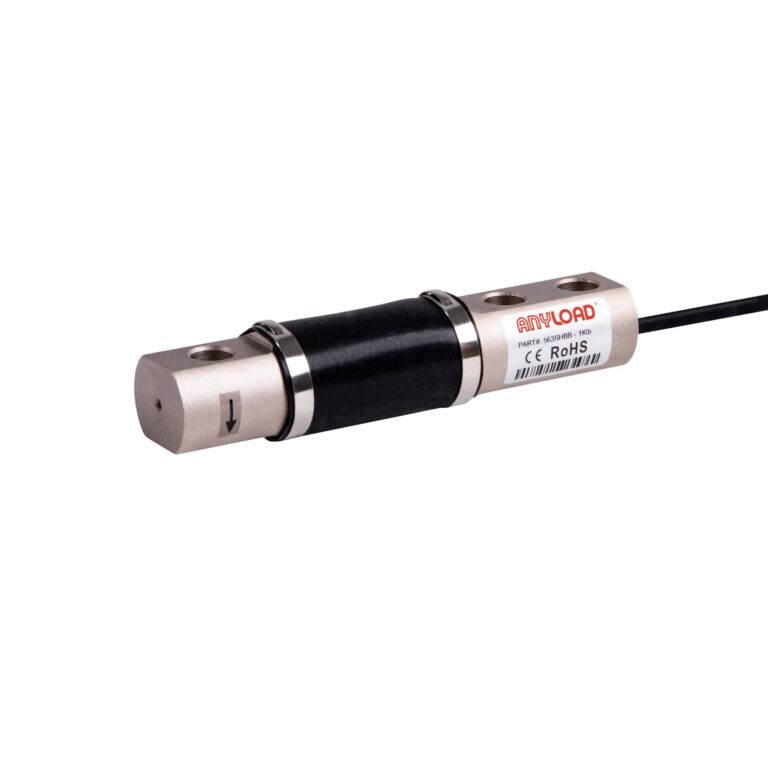

 | ANYLOAD 563SHBB FeaturesThe 563SHBB is a dependable single-ended beam load cell designed… +more ANYLOAD 563SHBB FeaturesThe 563SHBB is a dependable single-ended beam load cell designed to deliver accurate and consistent weight measurements across various industrial and commercial environments. Built from high-strength alloy steel, it offers excellent durability and long-term reliability even in demanding conditions. Its rugged design and protective sealing help safeguard internal components from dust, moisture, and external damage. With built-in overload protection, it maintains performance integrity and reduces the risk of failure during heavy use. The compact and versatile structure makes it suitable for integration into different weighing systems and platforms. Engineered for precision and stability, the 563SHBB ensures dependable results in applications where accuracy truly matters.Material: Nickel-plated Alloy SteelRated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 1Klb, 2.5KlbFull-Scale Output: 2.0mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP65CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 100lb, 250lb, 500lb, 1Klb, 2.5KlbContact us with any product-related or implementation-related questions. -less | Price: $450.00-$760.00 |
