ANYLOAD DGB-A Digiboard, Analogue Amplifier

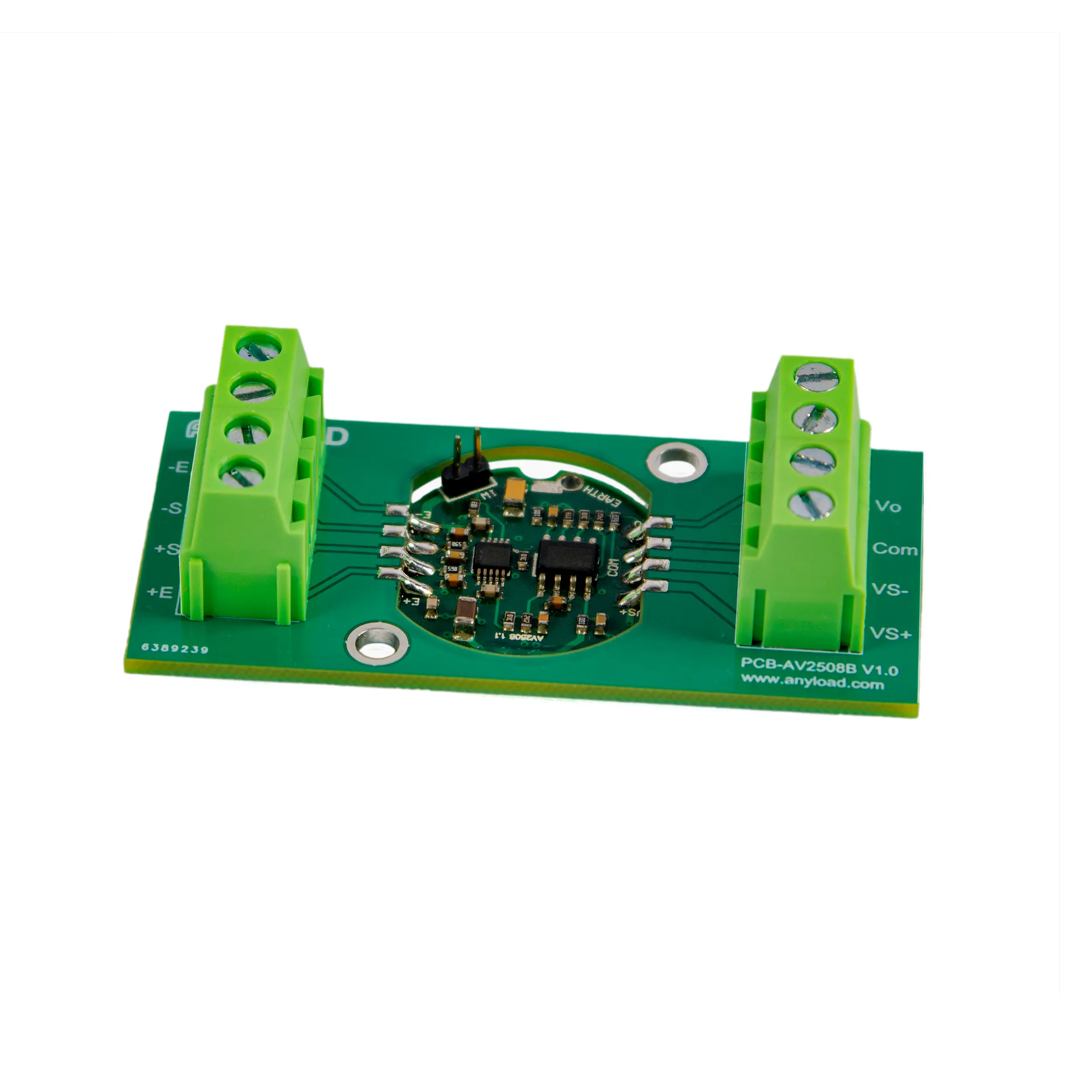

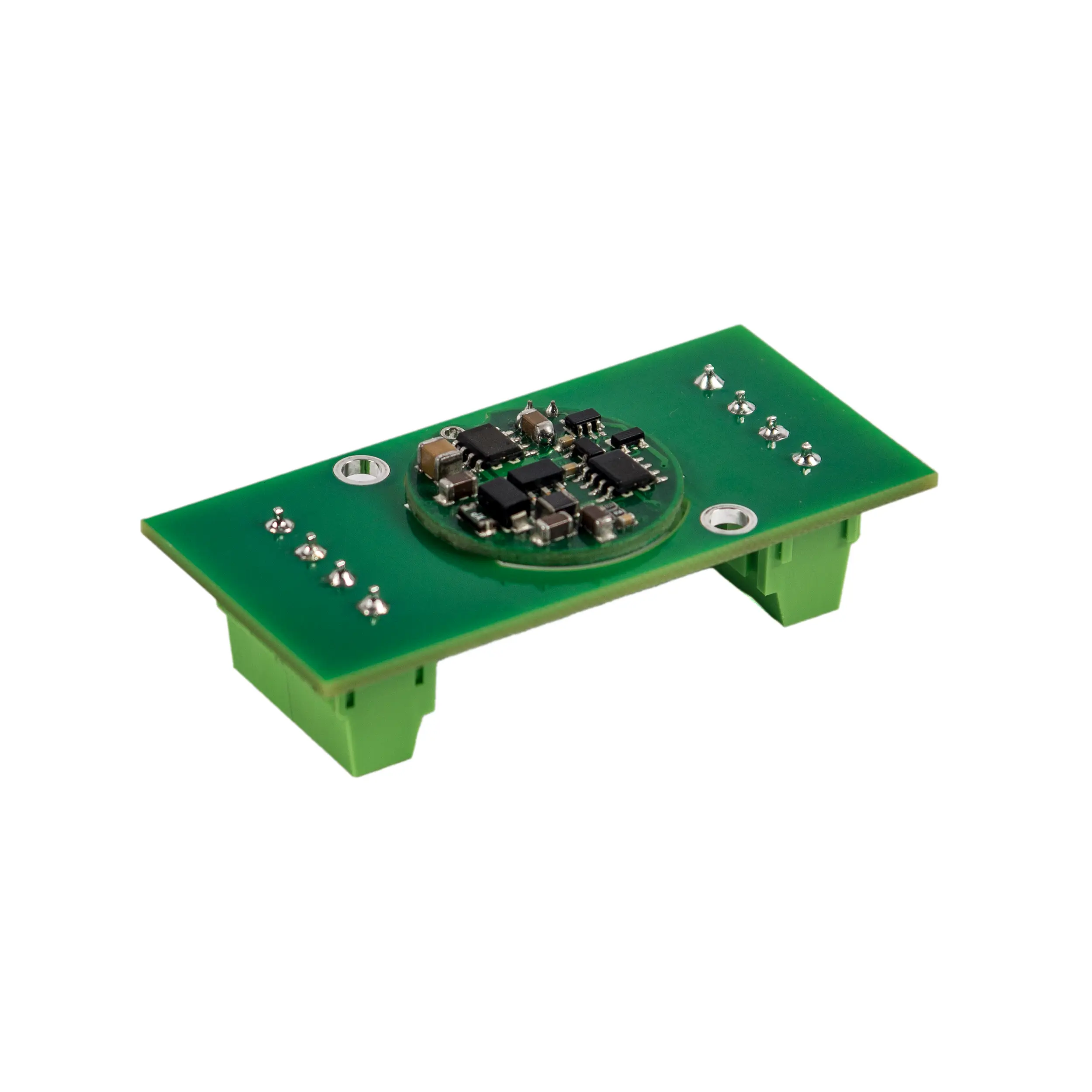

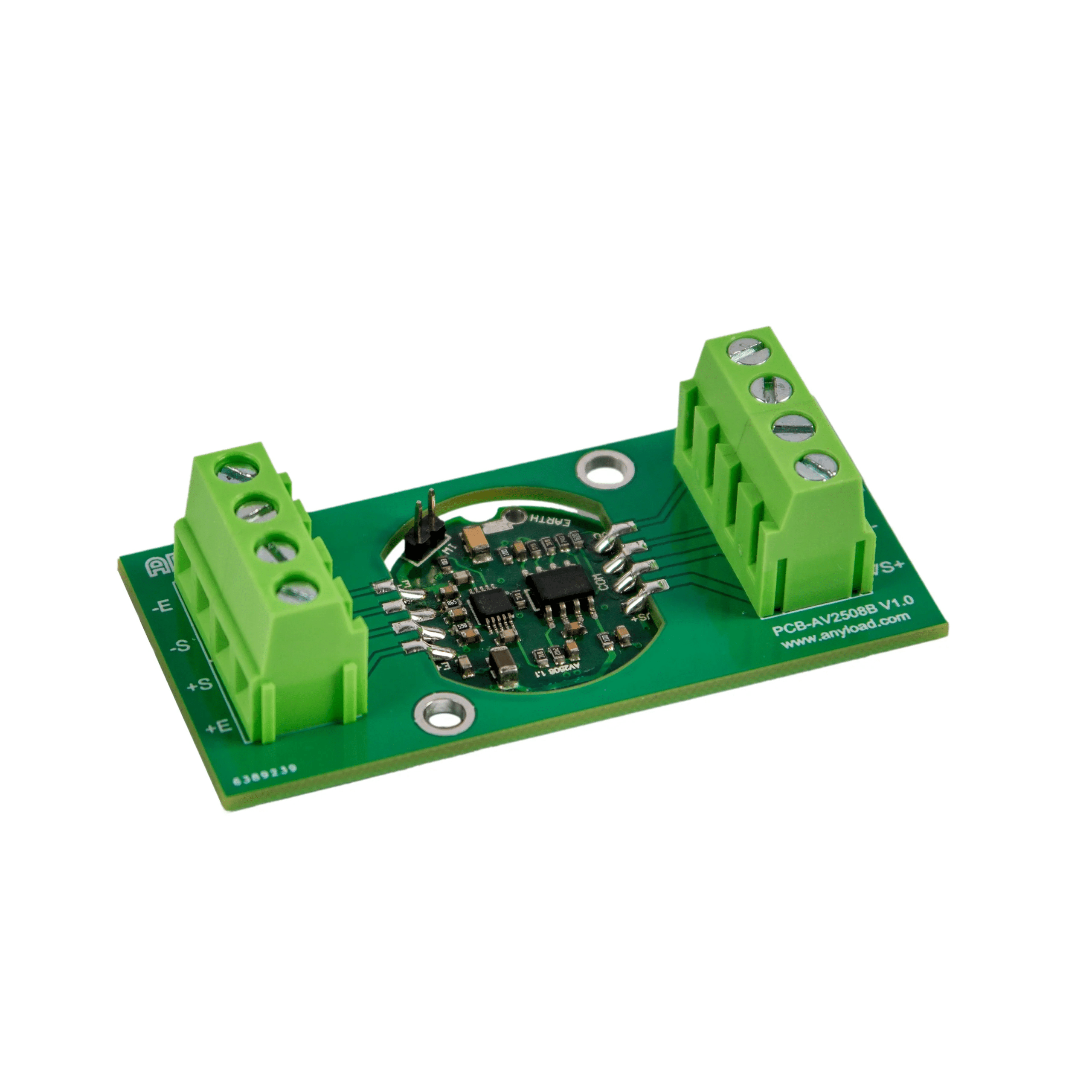

The DGB-A Chip is a compact 24.6mm analog signal amplifier designed for strain gauge sensors, including tension, compression, torque, and pressure load cells. It supports direct connection to 1×350Ω load cell at 12V DC or 2×350Ω load cells at 24V DC, with an input range of 0.2–10.0 mV/V and reverse polarity protection. The chip can be embedded within load cells for built-in amplification and offers PC software for calibration, operation, and data acquisition.
Contact us with any product-related or implementation-related questions.
| Quantity | Price |
|---|---|
| 1 - 9 | $214.00 |
| 10 - 24 | $203.30 |
| 25 - 49 | $196.88 |
| 50 - 99 | $190.46 |
| 100 + | $181.90 |
ANYLOAD DGB-A Digiboard, Analogue Amplifier Features
The DGB-A DigiBoard Analogue Amplifier is a dependable signal amplifier designed to strengthen analogue load cell signals used in industrial weighing systems. It enhances signal clarity and stability, ensuring more accurate and reliable weight measurements. Built for consistent performance, it helps minimize signal interference and fluctuations during operation. This makes it ideal for use in a wide range of scales and industrial measurement applications where precision is essential. Durable and efficient, the DGB-A DigiBoard supports smooth and stable system performance.
- One input port, can connect directly to 1×350Ω load cell @ 12 V DC power, or 2×350Ω load cells @ 24 V DC power
- Input range: 0.2 – 10.0 mV/V
- Reverse polarity protection
- The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification
- Software is used for calibration
- DGB-A Chips can be embedded into load cells for built-in analog signal amplification (special order required)
- Designed for all strain gauge sensors, including tension, compression, torque, and pressure load cells.
- PC Softwareis available for calibration, operations, and data acquisition.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD DGB-A Digiboard, Analogue Amplifier General Specifications
| Load Cell Type | All strain gage types |
| Power Supply and Consumption | 12-24 V DC |
| Input Range | 0.2-10.0 mV/V |
| Working Temperature | -22°F – 122°F / -30°C – 50°C |
| Excitation Voltage to Load Cell | 5 V DC |
| Non-linearity | ≤0.02% |
| Non-linearity | ≤100ppm/ °C |
| Output Signal | 0 – 20 mA; 4 – 20 mA (DGB-AI2508); 0 – 5 V DC; 0 – 10 V DC; -5 – 5 V DC (DGB-AV2508) |
Technical Documents
 |
DGB-A Amplifier Datasheet |
 |
DGB-AI2508x, AV2508x Manual |
 |
Amplifier Software Guide Video |
