ANYLOAD ACT1 Conditioning Transmitter

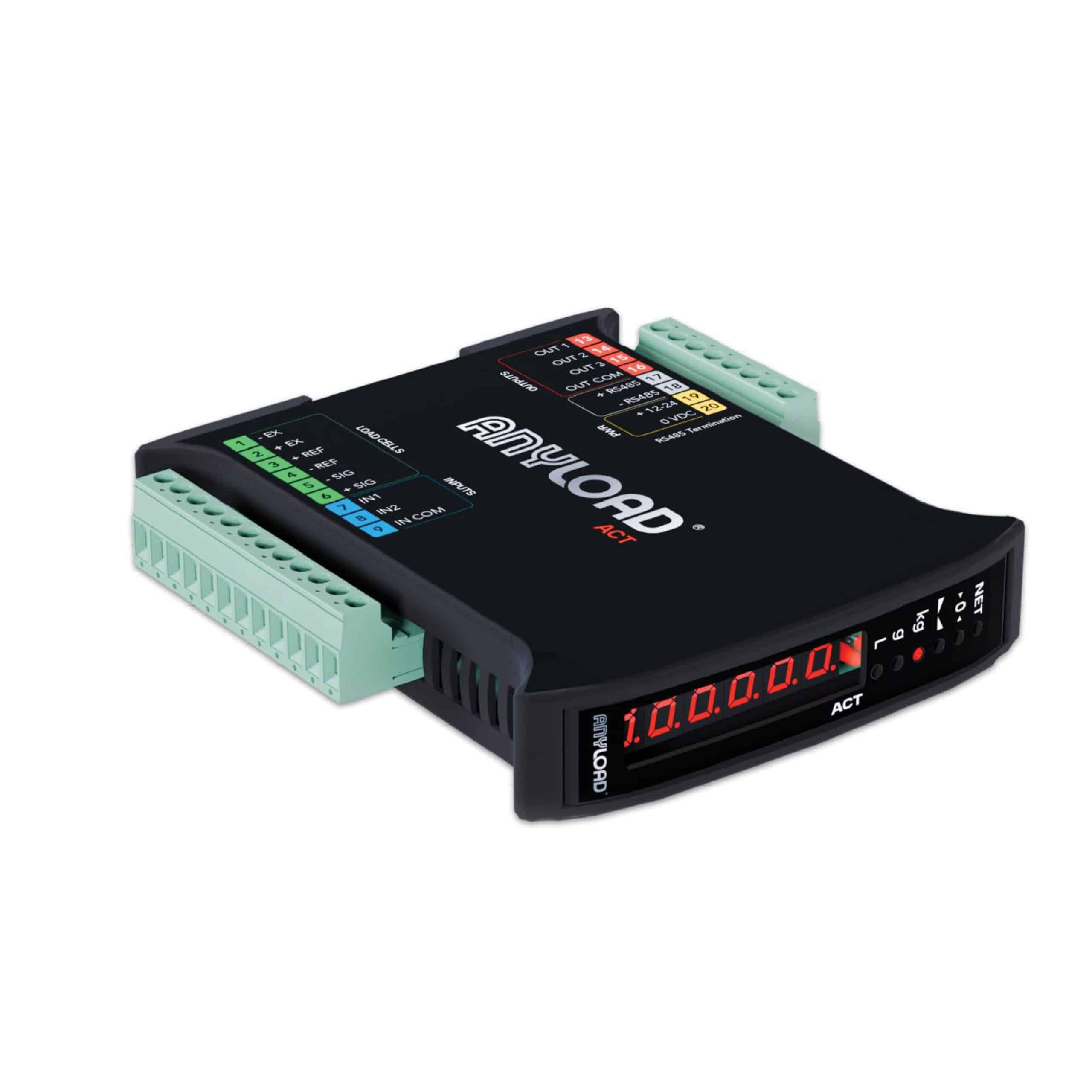

The ANYLOAD ACT1-series signal conditioning transmitter is designed to convert load cell signals into analog, serial, or network outputs such as Ethernet TCP/IP and Modbus. It provides accurate, calibrated weight data for PLC systems, making it ideal for industrial and process weighing applications. The ACT1 offers flexible connectivity options, ensuring compatibility with a wide range of control and automation systems. Its compact vertical design allows for efficient use of space, while the six-digit LED display and tactile buttons make setup and operation straightforward. With convenient DIN-rail mounting and multiple I/O ports, integration into existing systems is simple. Built for reliability and precision, the ACT1 enhances data communication and process control efficiency.
| Quantity | Price |
|---|---|
| 1 - 9 | $678.00 |
| 10 - 24 | $644.10 |
| 25 - 49 | $623.76 |
| 50 - 99 | $603.42 |
| 100 + | $576.30 |
ANYLOAD ACT1 Conditioning Transmitter Features
The ANYLOAD ACT1-series signal conditioning transmitter converts load cell signals into analog, serial, or network outputs such as Ethernet TCP/IP and Modbus. Designed for seamless integration in process weighing systems, it delivers accurate, calibrated weight data to PLCs. Its compact vertical design, six-digit LED display, intuitive controls, and DIN-rail mount make installation and operation simple and efficient.
- Space-saving vertical design with DIN-rail mounting for compact control panel integration
- High-visibility red LED display with six semi-alphanumeric digits and dedicated indicator LEDs for weight, calibration, and error conditions
- Comprehensive calibration options, including theoretical, real-weigh,t, and linearity calibration with intuitive push-button or preset tare functionality
- Versatile digital-to-analog conversion with full-scale output, zero setting, and optional network protocols (Ethernet TCP/IP, ASCII, or Modbus-RTU)
- Flexible data formatting with configurable bit-swapping for little or big endian formats and support for RS-232 transmit or RS-485 half-duplex communication
- Integrated digital I/O featuring two digital inputs and three digital outputs for expanded system interfacing
- User-friendly system management with removable mounting hardware and free Instrument Manager software for easy configuration, calibration, and maintenance
Specifications
ANYLOAD ACT1 Conditioning Transmitter General Specifications
| Power Supply | 12 – 24VDC ± 10% |
| Consumption | 5W |
| Number of load cells | Up to 8(350Ω) – 4/6 wires |
| Load cells supply | 5VDC/120mA |
| Linearity | <0.01% full scale |
| Analog output linearity (only for ACT1-ANA) | <0.01% full scale |
| Thermal drift | <0.0005% full scale °C |
| Analog output Thermal drift (only for ACT1-ANA) | <0.003% full scale °C |
| A/D Converter | 24bit(16000000 points)-4.8kHz |
| Divisions (with measurement range ±10mV and sensitivity 2mV/V) | ±999999·0.01μV/d |
| Input Range | ±39mV |
| Usable load cells sensitivity | ±7mV/V |
| Conversions per second | 300/s |
| Decimals | 0-4 |
| Display increments | x1x2x5x10x20x50x100 |
| Digital filter | 10 levels |
| Readings per second | 5-300Hz |
| Max.Output Current | 3-max 115 VAC/150mA |
| Opto-isolated digital inputs | 2-5-24VDC PNP |
| Serial ports | RS485 |
| Baud rate | 2400, 4800, 9600, 19200, 38400, 115200(bit/s) |
| Opto-isolated analog output (only for ACT1-ANA) | 16bit=65535divisions. 0-20mA; 4-20mA(up to 300Ω) 0-10V; 0-5V; ±10V; ±5V(min 10kΩ) |
| Humidity (condensate-free) | 85% |
| Storage temperature | -30°C to 80°C |
| Operating temperature range | -20°C to 60°C |
Technical Documents
 |
ACT 1 Amplifiers/Transmitter Datasheet |
 |
ANYLOAD-ACT1-Tech-Manual-signal-conditioning-transmitter |
3D Drawing
 |
ACT1 Amplifiers/Transmitter |
