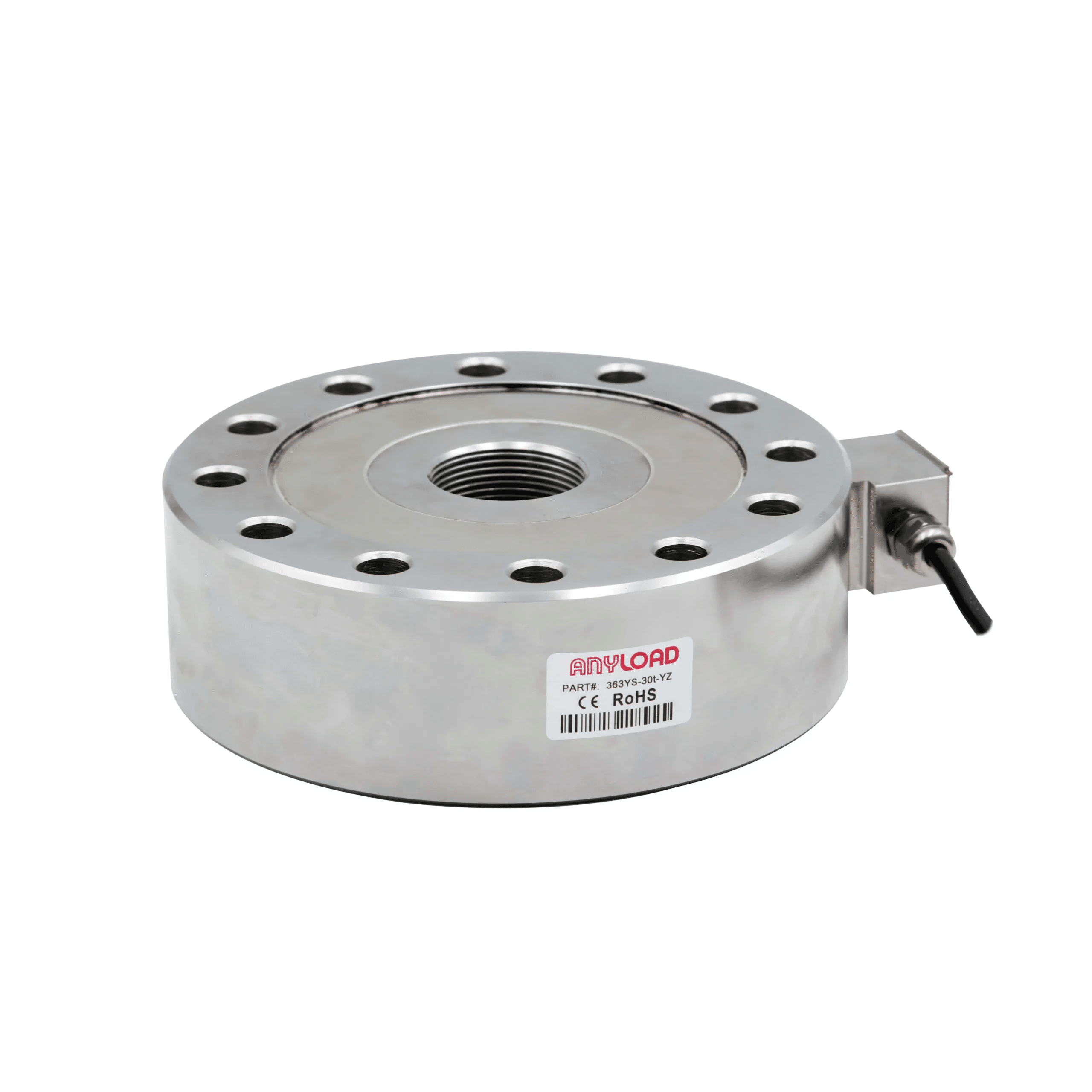

ANYLOAD 363YS Stainless Steel Compression and Tension Load Cell
The ANYLOAD 363YS tension/compression load cell is a versatile, high-capacity solution designed for precise weighing and force measurement across demanding industrial applications. Built with IP68-rated stainless steel, its low-profile disk/canister design ensures durability and reliable performance even in harsh environments. Offering capacities from 1t to 300t with a 2.0mV/V full-scale output, it features a high safety margin with 150% safe overload and 300% breaking overload.
| Quantity | Price |
|---|---|
| 1 - 9 | $914.00 |
| 10 - 24 | $868.30 |
| 25 - 49 | $840.88 |
| 50 - 99 | $813.46 |
| 100 + | $776.90 |
ANYLOAD 363YS Load Cell Features
The ANYLOAD 363YS tension/compression load cell is a versatile, high-capacity solution engineered for precise weighing and force measurement across demanding industrial applications. Built with a rugged stainless-steel, low-profile disk/canister design, it delivers exceptional durability and long-term stability even in harsh environments. Its IP68 protection rating ensures reliable performance against water, dust, and challenging outdoor or washdown conditions. Available in an extensive range of rated capacities from 1 ton up to 300 tons, it offers flexibility for both light and extremely heavy-duty requirements.
- Material: Stainless Steel
- Available Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t.
- Full-Scale Output: 2.0mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
- CE and RoHS-certified
- ATEX, FM, IECEx available upon request
Available Options: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, & 200t.
Please contact us with any product-related questions including availability of other capacities and options.
Specifications
ANYLOAD 363YS Load Cell Specifications
| Capacities | 363YS (1t – 5t) | 363YS (10t – 300t) |
| Rated Capacity | 1t, 2t, 3t, 5t | 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t |
| Full-Scale Output | 2mV/V ± 1% | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V | ± 0.02mV/V |
| Non-linearity | < ± 0.050% | < ± 0.30% |
| Repeatability | < ± 0.030% | < ± 0.20% |
| Hysteresis Error | < ± 0.050% | < ± 0.30% |
| Creep in 30 minutes | < ± 0.050% | < ± 0.10% |
| Input Resistance | 770Ω ± 30Ω | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k | < ± 0.0120% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale | 150% of full scale |
| Breaking Overload | 300% of full scale | 300% of full scale |
| Seal Type | Welded Seal | Welded Seal |
| IP Rating | IP67 | IP67 |
Technical Documents
 |
ANYLOAD 363YS Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
