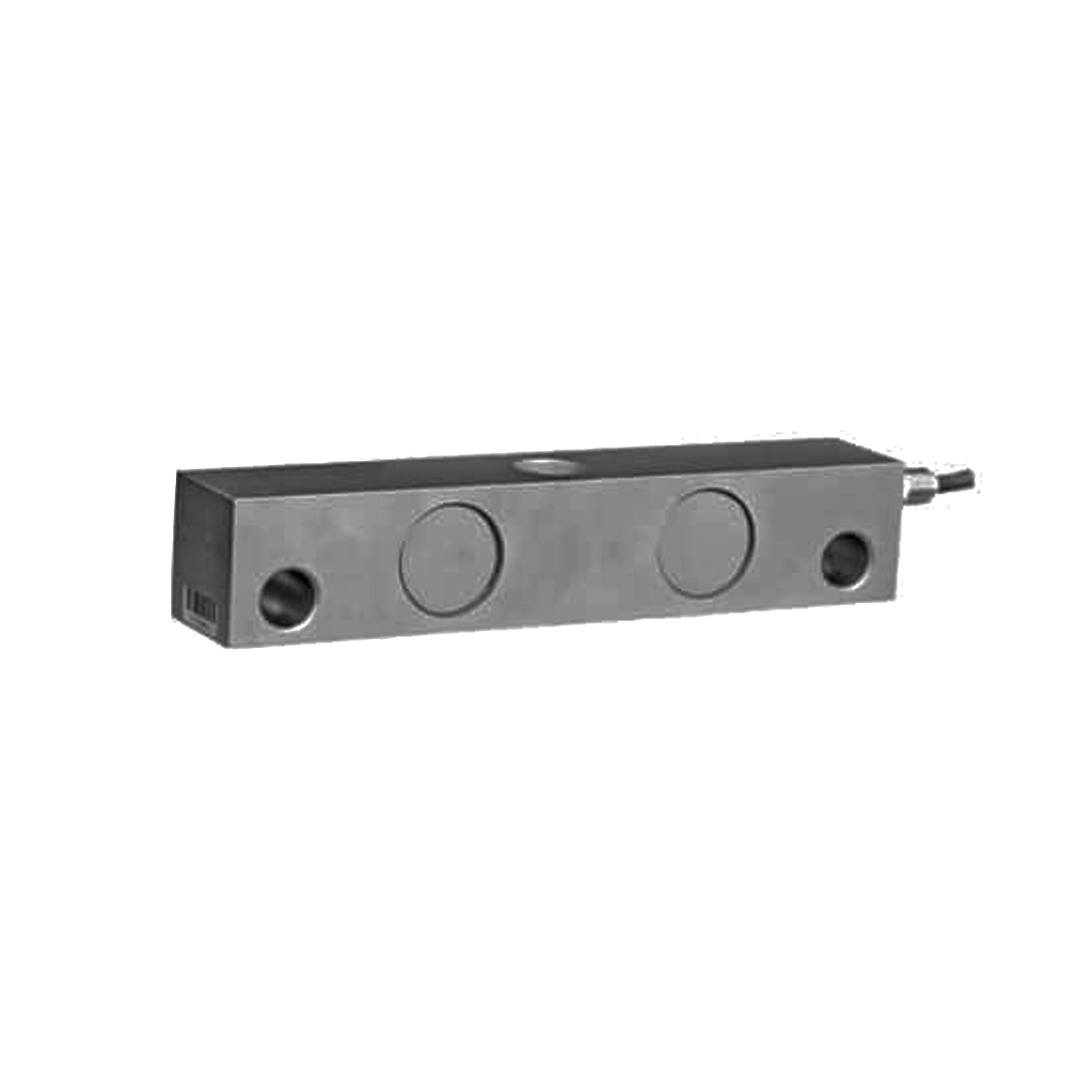

ANYLOAD 102EHEL Alloy Steel Double-Ended Beam Load Cell
The 102EHEL is a high-capacity double-ended beam load cell with a 50Klb capacity and IP67 water resistance. Its robust alloy steel construction is ideal for heavy-duty applications like truck and rail scales. It is interchangeable with Coti Global CG-STR and Epelsa STR models and offers optional mounting pins.
Other load cell capacities and configurations are available – please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $884.00 |
| 10 - 24 | $839.80 |
| 25 - 49 | $813.28 |
| 50 - 99 | $786.76 |
| 100 + | $751.40 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
The 102EHEL is a high-capacity double-ended beam load cell designed for heavy-duty applications, such as truck and rail scales. With a 50Klb-rated capacity, it features a robust, environmentally sealed alloy steel construction with IP67 water resistance, ensuring reliable performance in challenging environments. Interchangeable with Coti Global CG-STR and Epelsa STR models, the 102EHEL offers flexibility in installation. Optional mounting pins are available separately to further enhance its stability and functionality.
ANYLOAD 102EHEL Features
- Material: Nickel-plated alloy steel
- Rated Capacities: 40Klb, 50Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex-certified
- ATEX, FM, IECEx available upon request
PARTS Option Includes:
- 2 x PIN 101
- 1 x PIN 102
- 4 x PIN 101 clip rings
Available Options: 50Klb, 40-50Klb-PARTS
Please contact us with any product-related questions.
Specifications
ANYLOAD 102EHEL Load Cell Specifications
| Rated Capacity | 40Klb, 50Klb |
| Full-Scale Output | 3.0mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.015% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 minutes | < ± 0.020% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
102EHEL Double-Ended Beam Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
 |
102EHEL-(40-50)Klb |
|---|
Interchangeable Cross Reference
| Manufacturer | Model |
| Coti Global | CG-STR |
| Epelsa | STR |
