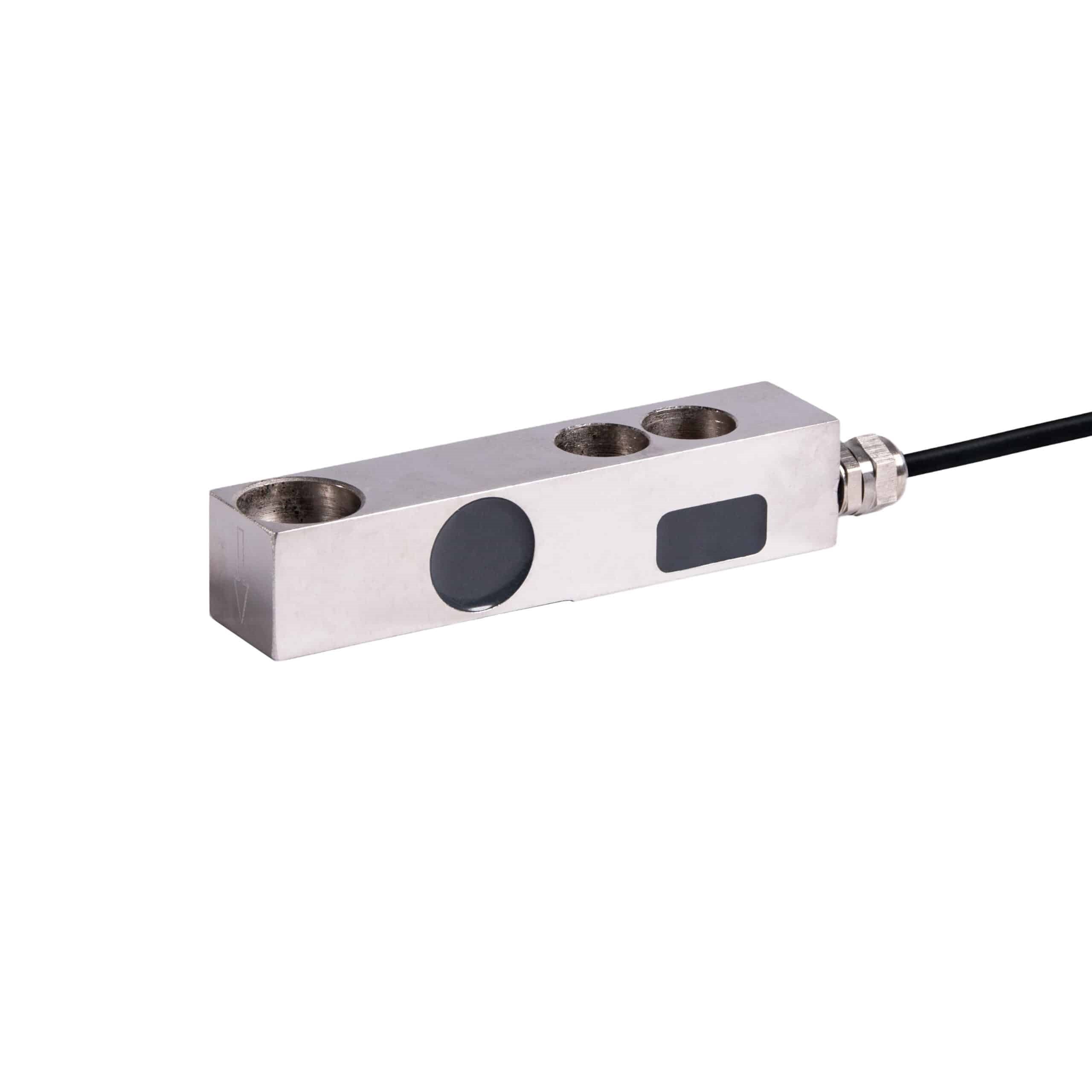

ANYLOAD 563YSLB Stainless Steel Single-Ended Beam Load Cell

The ANYLOAD 563YSLB Single-Ended Beam Load Cell is environmentally sealed 2Cr13 stainless steel with an ingress protection rating of IP66. Available in 500-2500lb capacities. Other configurations available upon request — please contact us with any questions.

$280.00

SKU: 563YSLB Category:

ANYLOAD 563YSLB Key Features

  • 2Cr13 stainless steel material
  • Rated Capacities: 500lb, 1Klb, 2.5Klb
  • Full Scale Output: 1.85mV/V -1.9mV/V
  • Safe Overload: 150%
  • Breaking Overload:300%
  • IP Rating: IP66
  • CE, RoHS and Ex certified

Available options: 563YSLB-500kg-YZ, 563YSLB-1000kg-YZ, 563YSLB-2500kg-YZ

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 563YSLB Load Cell Specifications

Rated Capacity 500lb, 1500lb, 2500lb
Full Scale Output 1.85-1.9mV/V
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Glue sealed
IP Rating IP66

Interchangeable Cross Reference

ANYLOAD 563YSBK Interchangeable Cross Reference

Manufacturer Equivalent Model ANYLOAD Part Number
Cardinal LFB-500HMT* 563YSLB-500lb-YZ
Cardinal LFB-1000HMT* 563YSLB-1Klb-YZ
Cardinal LFB-2500HMT* 563YSLB-2.5Klb-YZ
Coti Global CG-HMT

*Refer to H2 dimension on diagram on data sheet: Cardinal LFB-500HMT, LFB-1000HMT, LFB-2500HMT have a sunken hole depth of 9.53mm; ANYLOAD 563YSLB-500lb, 563YSLB-1Klb, 563YSLB-2.5Klb have a sunken hole depth of 14.9mm

Technical Documents

563YSLB Single-Ended Beam Load Cell Datasheet
Certificate Icon NTEP Certificate of Conformance
CE Certificate of Conformity
RoHS Certificate of Conformity
Explosion Protection Certificate of Conformity
