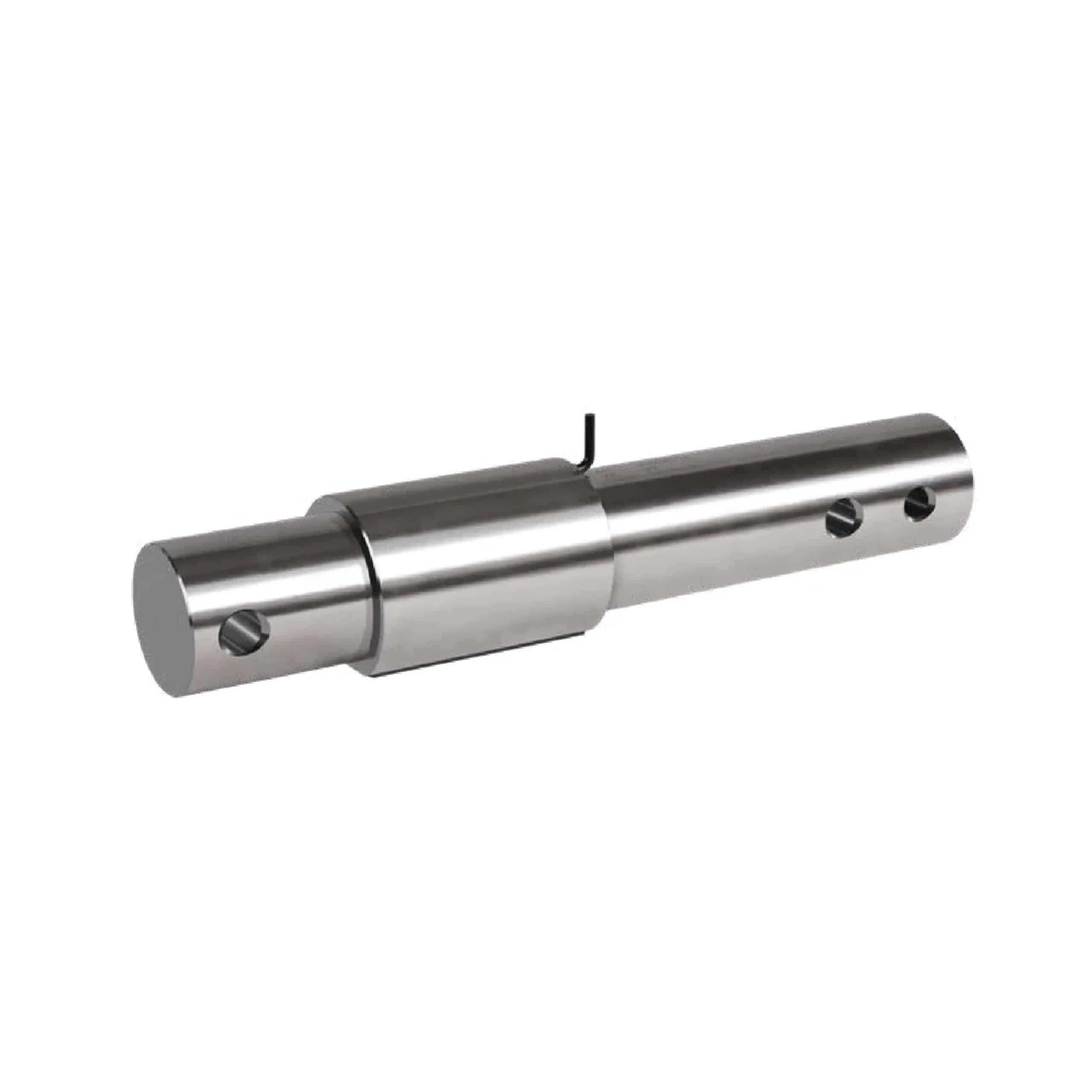

ANYLOAD 563WH-24B Alloy Steel Single-Ended Beam Load Cell
The 563WH-24B Single-Ended Beam Load Cell is constructed from durable alloy steel and offers a rated capacity of 23Klb with a full-scale output of 1.5 mV/V ± 1%. Designed for demanding environments, it features IP67 environmental sealing and a 300% breaking overload for enhanced safety.
Other capacities and configurations are available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $746.00 |
| 10 - 24 | $708.70 |
| 25 - 49 | $686.32 |
| 50 - 99 | $663.94 |
| 100 + | $634.10 |
ANYLOAD 563WH-24B Features
- Material: Nickel-Plated Alloy Steel
- Rated Capacities: 23Klb
- Full-Scale Output: 1.5 mV/V ± 1%
- Breaking Overload: 300%
- IP Rating: Environmentally Sealed / IP67
- CE, RoHS, and Ex(NEPSI) Certified
- ATEX, FM, IECEx available upon request
Available Option: 10Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563WH-24B Load Cell Specifications
| Rated Capacity | 23Klb |
| Full-Scale Output | 1.5mV/V ± 1% |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | <±0.05% |
| Repeatability | <±0.02% |
| Hysteresis Error | <±0.05% |
| Creep in 30 minutes | <±0.03% |
| Input Resistance | 375 ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | Alloy Steel, Nickel Plated and Electrophoretic Paint |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C/ 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
| Cable Color Code | Exc+ Red; Exc-Black; Sig+ Green; Sig- White; Shield Bare |
Technical Documents
 |
563WH-24B Single-Ended Beam Load Cell Datasheet |
 |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
