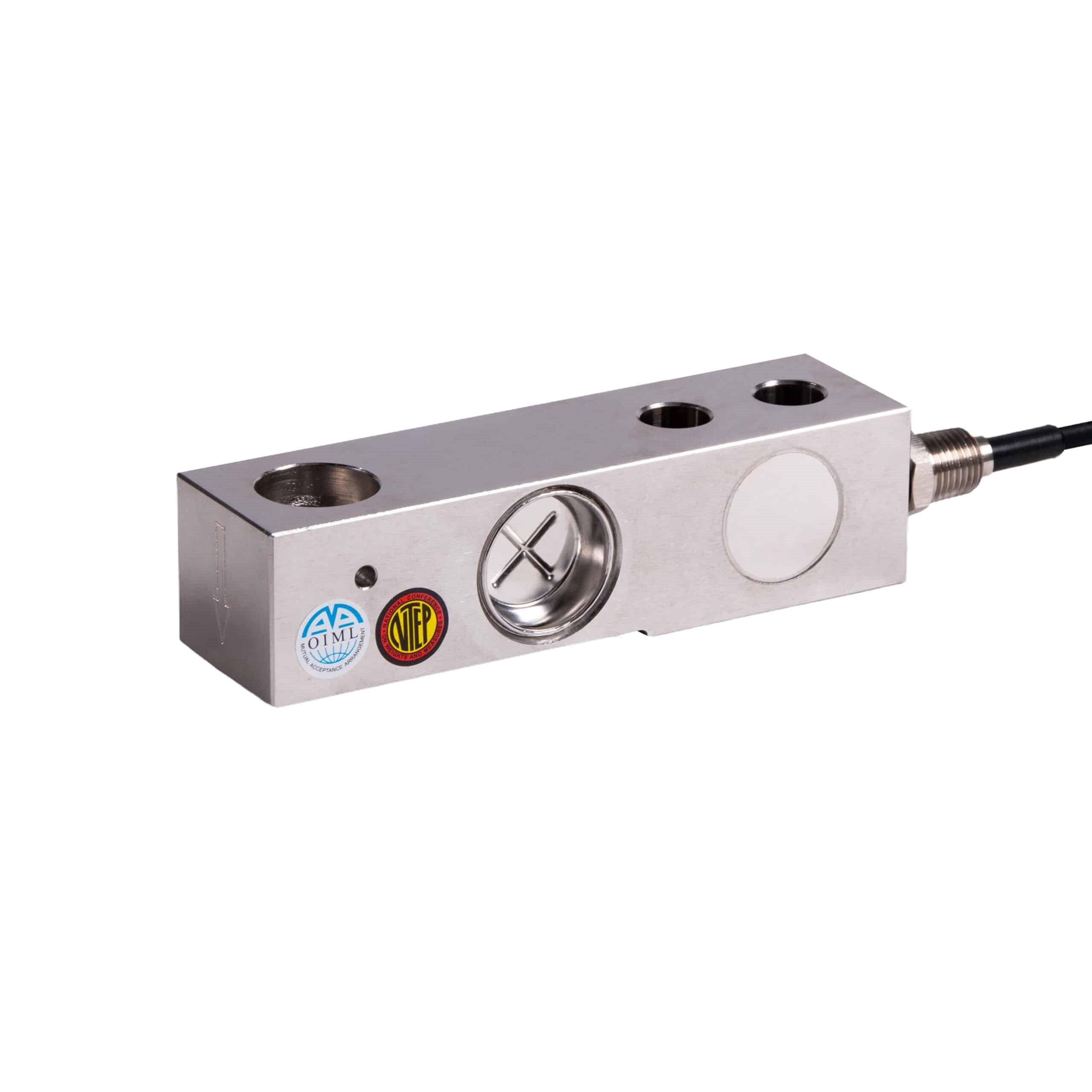

ANYLOAD 563YSMT Stainless Steel Single-Ended Beam Load Cell
The 563YSMT Single-Ended Beam Load Cell features a compact, low-profile design ideal for lower to medium-capacity applications like platform and hopper scales. Its cost-effective, 17-4PH stainless steel construction offers IP68 water resistance and welded sealing for reliable performance in rugged environments. Available in capacities from 250lb to 10Klb, the 563YSMT is interchangeable with models such as Mettler Toledo MT0744 and Rice Lake RL30745.
Other configurations may be available upon request—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $42.00 |
| 10 - 24 | $39.90 |
| 25 - 49 | $38.64 |
| 50 - 99 | $37.38 |
| 100 + | $35.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YSMT Features
The 563YSMT Single-Ended Beam Load Cell is a compact and cost-effective solution designed for lower to medium-capacity applications, such as platform scales and hopper scales. Its robust 17-4PH stainless steel construction, with IP68-rated water resistance, ensures reliable performance even in rugged environments. Available in capacities ranging from 250lb to 10Klb, the load cell features a weld-sealed design for enhanced durability, with the 250lb-rated option offering IP66 protection. The 563YSMT is also interchangeable with models like Mettler Toledo MT0744 and Rice Lake RL30745, providing versatile compatibility for various industrial applications.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68 / IP66 (250lb only)
- CE, RoHS, and Ex Certified
- Pin available for 500lb-5000lb capacities only
Available Options: 250lb, 500lb, 1.25Klb, 2.5Klb, 5Klb, & 10Klb.
Available Mounting Hardware (for 500lb to 5Klb capacities only):
563YSMT-(0.5-5)Klb-PIN (See product datasheet for pin dimensions.)
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSMT Load Cell Specifications
| Rated Capacity | 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal (500lb ) / Environmental Seal (250lb) |
| IP Rating | IP68 (500lb ) / IP66 (250lb) |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 563YSMT Equivalents
| Manufacturer | Equivalent Model | Info |
| Coti Global | CG-745 | |
| HBM | THC | |
| Mettler-Toledo | MT0744 | Environmentally sealed & interchangeable with ANYLOAD 563YSMT-250lb |
| Mettler-Toledo | MT0745 | |
| Rice Lake | RL30745 |
