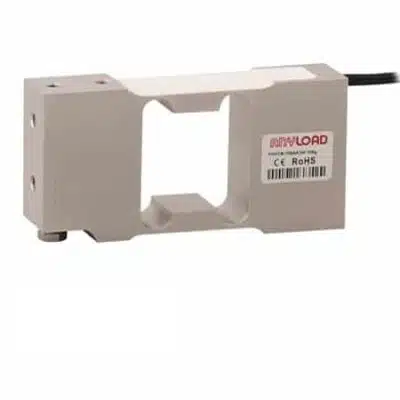

ANYLOAD 108AA3MUN Aluminum Single Point Load Cell
The 108AA3MUN is a robustly designed single-point load cell known for its superior value and reliability, making it ideal for packaging scales and other direct mounting applications. It is also interchangeable with the Vishay Tedea-Huntleigh 1010/1015 models. This product is available in capacities from 3kg to 90kg. All capacities have built-in overload protection to prevent damage.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $174.00 |
10-24 | 10 - 24 | 5% $165.30 |
25-49 | 25 - 49 | 8% $160.08 |
50-99 | 50 - 99 | 11% $154.86 |
100+ | 100 + | 15% $147.90 |
ANYLOAD 108AA3MUN Features
The ANYLOAD 108AA3MUN is a robustly designed single-point load cell that offers superior value and reliability, making it an ideal choice for various weighing applications. Its durable construction is well-suited for use in packaging scales and other direct mounting applications where precision and dependability are crucial. The load cell’s design ensures consistent and accurate measurements, providing confidence in its performance. Furthermore, it is interchangeable with the Vishay Tedea-Huntleigh 1010/1015 models, offering flexibility and compatibility for different systems. This versatility, combined with its high-quality design, makes it a popular and trusted solution for a wide range of weighing needs.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 90kg
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
- CE and RoHS-Certified
Available Options: 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg & 90kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108AA3MUN Load Cell Specifications
Rated Capacity | 3kg, 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 90kg |
Reference Max. Platform Size | 500mm x 500mm |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.030% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.030% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108AA3MUN Aluminum Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108AA3MUN Equivalents
Manufacturer | Model |
---|---|
Vishay Tedea-Huntleigh | 1010 |
Vishay Tedea-Huntleigh | 1015 |
