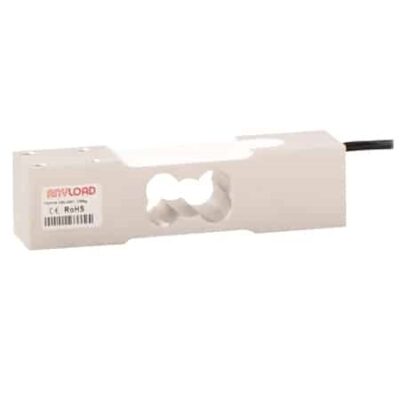

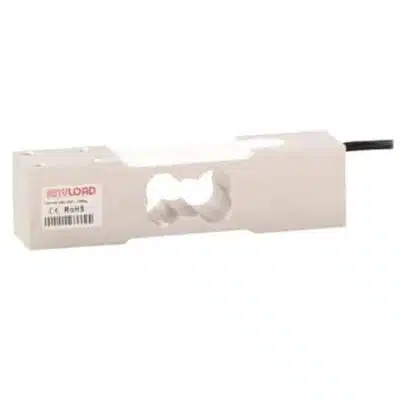

ANYLOAD 108LAMT Aluminum Single Point Load Cell
The ANYLOAD 108LAMT Aluminum Single Point Load Cell is a durable and accurate weighing solution designed for a variety of applications. Its aluminum construction ensures reliable performance, making it ideal for platform scales, bench scales, and other precision weighing systems.
Other capacities and configurations may be available—please Contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $188.00 |
10-24 | 10 - 24 | 5% $178.60 |
25-49 | 25 - 49 | 8% $172.96 |
50-99 | 50 - 99 | 11% $167.32 |
100+ | 100 + | 15% $159.80 |
ANYLOAD 108LAMT Features
The ANYLOAD 108LAMT Aluminum Single Point Load Cell is a high-precision weighing solution designed for a variety of applications, including small platform scales, bench scales, counting scales, and other precision weighing equipment. Constructed from high-quality aluminum, this load cell offers a perfect balance of strength and lightweight design, ensuring durability and ease of installation. It provides accurate and reliable measurements even in demanding environments, making it ideal for use in industries where precision is crucial. It is also designed to handle off-center loads effectively, providing consistent and dependable performance. With its robust construction and superior accuracy, the Single Point Load Cell is an excellent choice for a wide range of weighing needs.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 50kg, 60kg, 100kg, 150kg, 200kg, 300kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Available Options: 30kg, 50kg, 100kg, 150kg, 200kg & 300kg.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108LAMT Load Cell Specifications
Rated Capacity | 30kg, 50kg, 60kg, 100kg, 150kg, 200kg, 300kg |
Reference Max. Platform Size | 500mm x 500mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.06mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
ANYLOAD 108LAMT Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108JA Equivalents
Manufacturer | Model |
---|---|
Mettler-Toledo | MT1241 |
