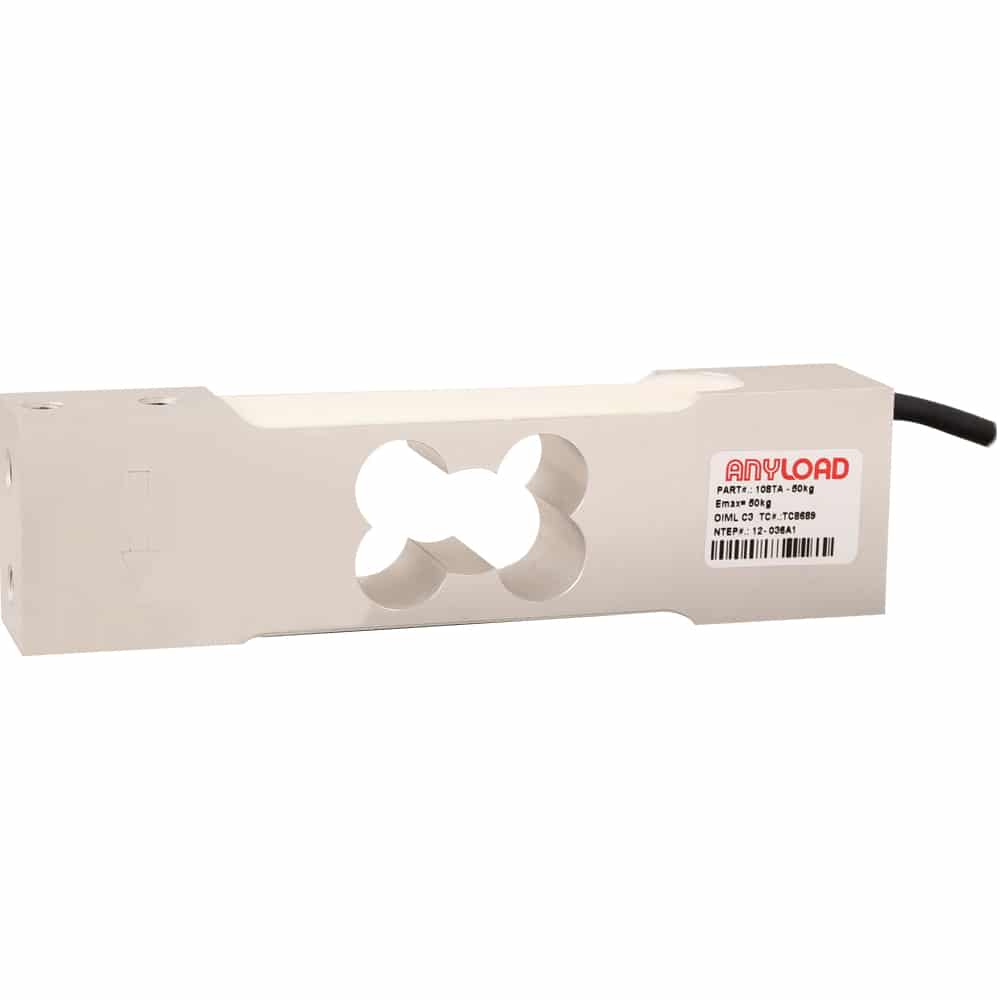

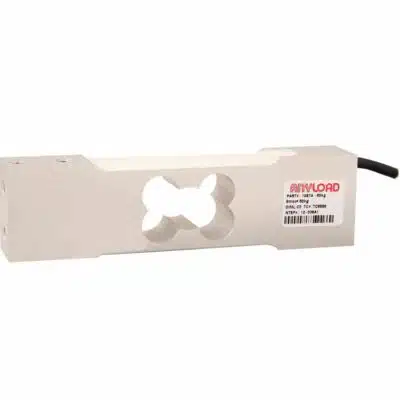

ANYLOAD 108TA Aluminum Single Point Load Cell
The ANYLOAD 108TA is widely used in process supervision systems, retail check out, postal scales, packaging devices, and airport baggage systems. Available in capacities from 3kg to 200kg, its aluminum body is rated IP66. Complies with multiple industry standards. The 108TA has metric mounting threads; for imperial, see the 108TAUN.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $115.00 |
10-24 | 10 - 24 | 5% $109.25 |
25-49 | 25 - 49 | 8% $105.80 |
50-99 | 50 - 99 | 11% $102.35 |
100+ | 100 + | 15% $97.75 |
SKU: 108TA
Category: Single Point
ANYLOAD 108TA Key Features
- Aluminum material
- Thread: Metric
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
- OIML C3 certified from 1kg-200kg
- CE and RoHS
Available options: 108TA-3kg, 108TA-5kg, 108TA-7kg, 108TA-10kg, 108TA-15kg, 108TA-20kg, 108TA-30kg, 108TA-50kg, 108TA-75kg, 108TA-100kg, 108TA-150kg, 108TA-200kg
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 108TA Load Cell Specifications
Rated Capacity | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg |
Reference Max. Platform Size | 400mm x 450mm |
Full Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
Technical Documents
108TA Single Point Load Cell Datasheet | |
|
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
Interchangeable Cross Reference
ANYLOAD 108TA Interchangeable Cross Reference
Manufacturer | Equivalent Model | Info |
Flintec | PC42 (20kg-150kg) | Flintec PC42-200kg has an M8 mounting hole |
Vishay Tedea-Huntleigh | 1042 | Has metric threads |
Vishay Revere Transducers | 642C |
