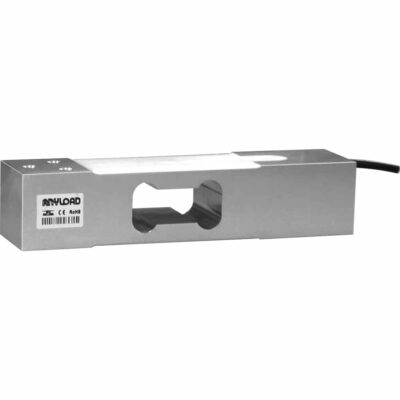

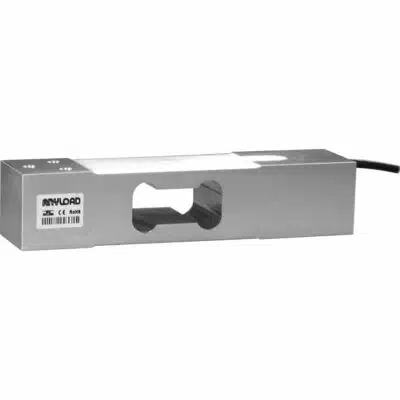

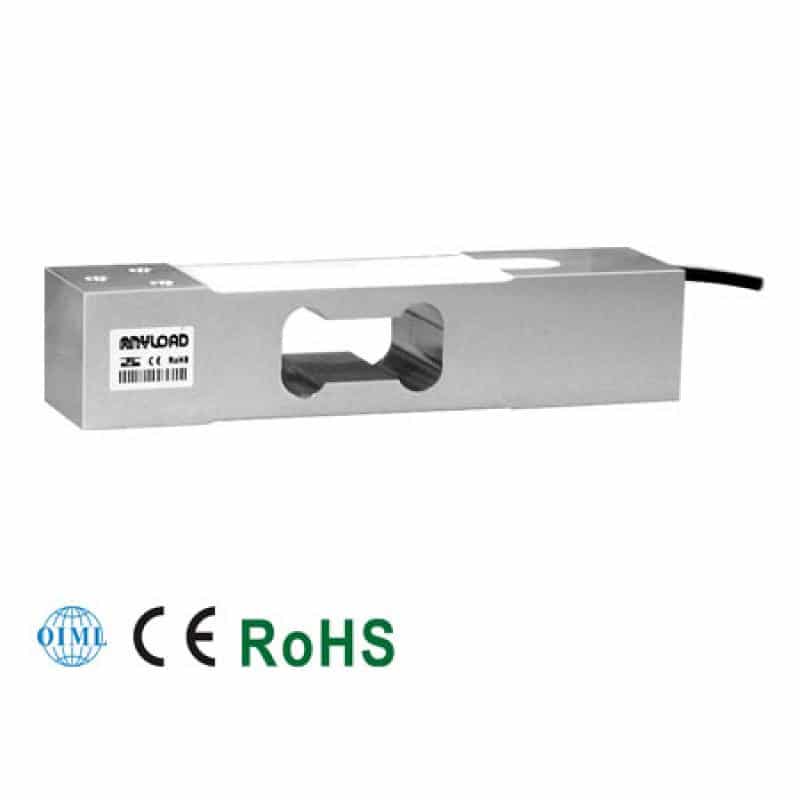

ANYLOAD 108TAAL Aluminum Single Point Load Cell

$408.00

The ANYLOAD 108TAAL is popular for process supervision systems, retail check out, postal scales, packaging devices, and airport baggage systems. Available in capacities from 30kg to 150kg, its aluminum body is rated IP66. Complies with multiple industry standards.

Other capacities and configurations available – please contact us with any questions.

Clear
SKU: 108TAAL Category:

ANYLOAD 108TAAL Key Features

  • Aluminum material
  • Rated Capacities: 30kg, 60kg, 150kg
  • Full Scale Output: 1mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • OIML C3 certified from 30kg-200kg
  • CE and RoHS certified

Available options: 108TAAL-30kg, 108TAAL-60kg, 108TAAL-150kg

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 108TAAL Load Cell Specifications

Rated Capacity 30kg, 60kg, 150kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 1mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Documents

108TAAL Single Point Load Cell Datasheet
Certificate Icon CE Certificate of Conformity
RoHS Certificate of Conformity
OIML Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 108TAAL Interchangeable Cross Reference

Manufacturer Equivalent Model
A & D LC-4103
