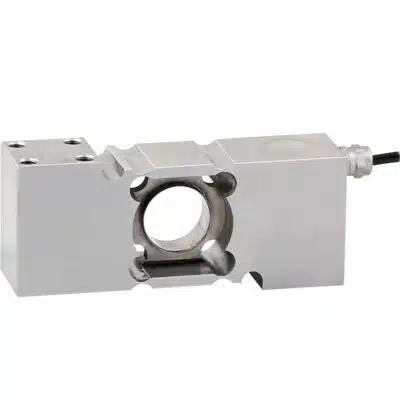

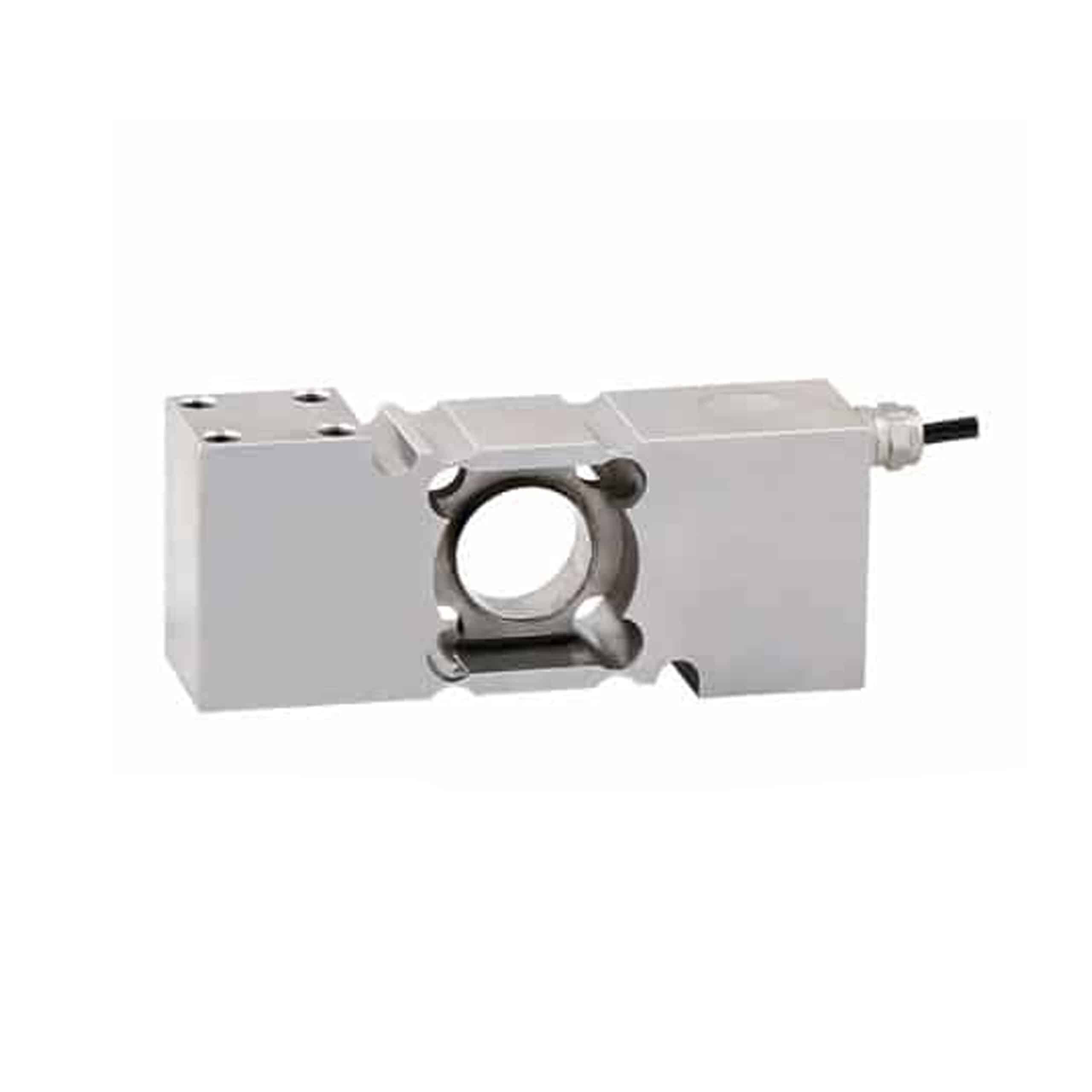

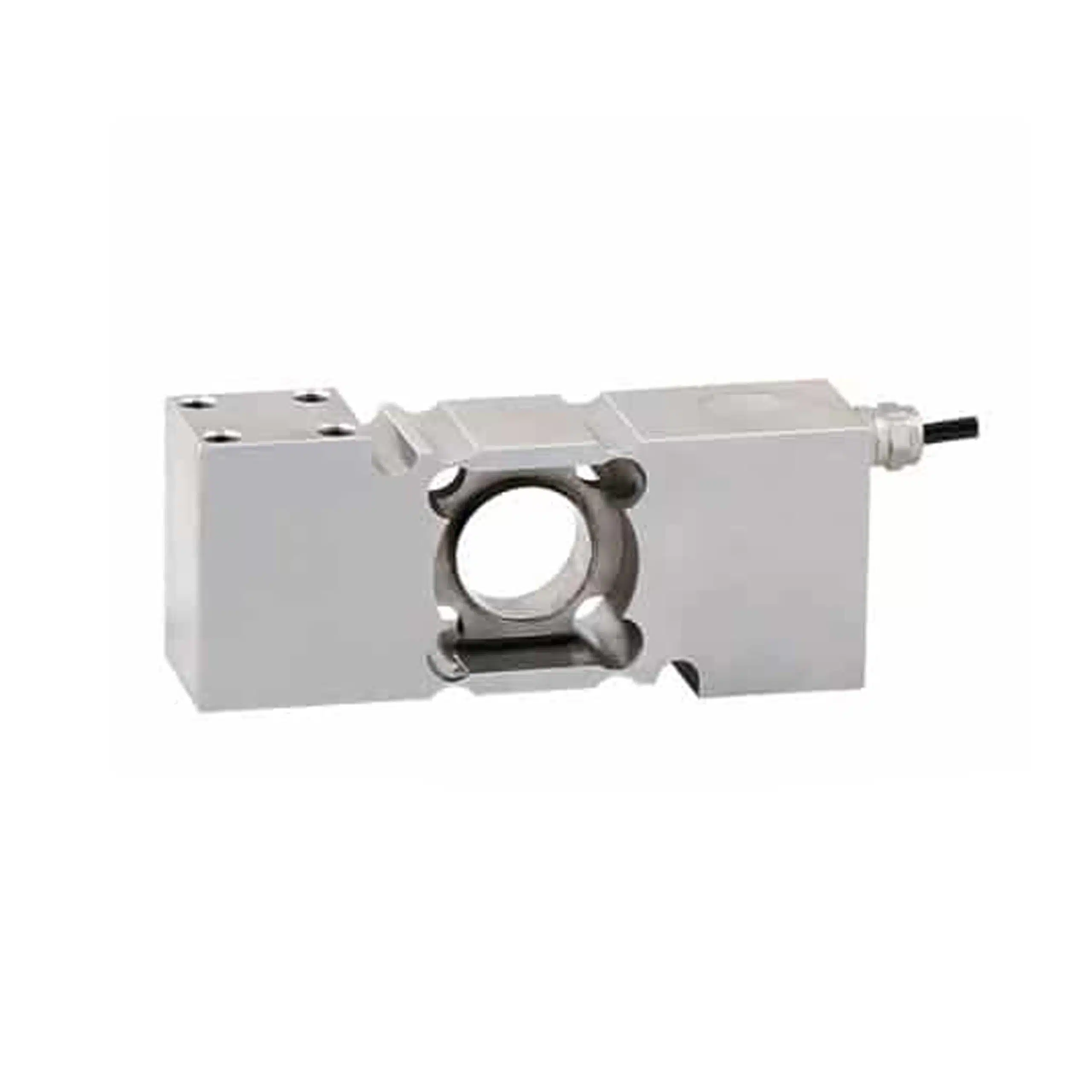

ANYLOAD 651KS22 Stainless Steel Single Point Load Cell
The 651KS22 Stainless Steel Single Point Load Cell is an OIML-certified C9 model, offering the highest accuracy for legal-for-trade applications in the 10kg to 100kg range. Constructed with IP68/69K-rated 17-4PH stainless steel, it is designed to perform reliably in extreme conditions, making it ideal for lower-capacity applications such as hopper scales and process weighing in industries like chemical, pharmaceutical, food processing, farming, and fishing.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $832.00 |
10-24 | 10 - 24 | 5% $790.40 |
25-49 | 25 - 49 | 8% $765.44 |
50-99 | 50 - 99 | 11% $740.48 |
100+ | 100 + | 15% $707.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651KS22 Features
The 651KS22 Stainless Steel single-point load Cell is an OIML-certified C9 load cell, offering unparalleled accuracy for legal-for-trade applications in the 10kg to 100kg range. Built with robust IP68/69K-rated 17-4PH stainless steel construction, it ensures exceptional durability and reliable performance even in extreme conditions. With temperature compensation from 14°F to 122°F and a 150% safe overload capacity, the 651KS22 is the ultimate solution for a wide variety of lower-capacity applications, including hopper scales and process weighing. Its innovative design is perfectly suited for demanding environments, such as those found in the chemical, pharmaceutical, food processing, farming, and fishing industries. This load cell represents the highest level of precision and resilience in industrial weighing technology.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 50kg, 100kg, 250kg, 500kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
- OIML MAA C9, Y=18 000 certified from 50kg-100kg
- OIML MAA C4, Y=26 000 certified from 250kg-500kg
Available Options: 50kg, 100kg, 250kg & 500kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651KS22 Load Cell Specifications
Rated Capacity | 50kg, 100kg, 250kg, 500kg |
Reference Max. Platform Size | 600mm x 600mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.03% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.03% |
Creep in 30 minutes | < ± 0.03% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 651KS22 Stainless Steel Single Point Load Cell Datasheet | |
OIML Certificate of Conformity NTEP Certificate of Conformity |
3D Drawing
651KS22-(50-500)kg |
Interchangeable Cross Reference
ANYLOAD 651KS22 Equivalents
Manufacturer | Equivalent Model | Comment |
Flintec | PC7 | * H of Flintec PC7 & Tedea 1510 are 73mm |
Mettler-Toledo | SSH | |
Vishay Tedea-Huntleigh | 1510 | * H of Flintec PC7 & Tedea 1510 are 73mm |
