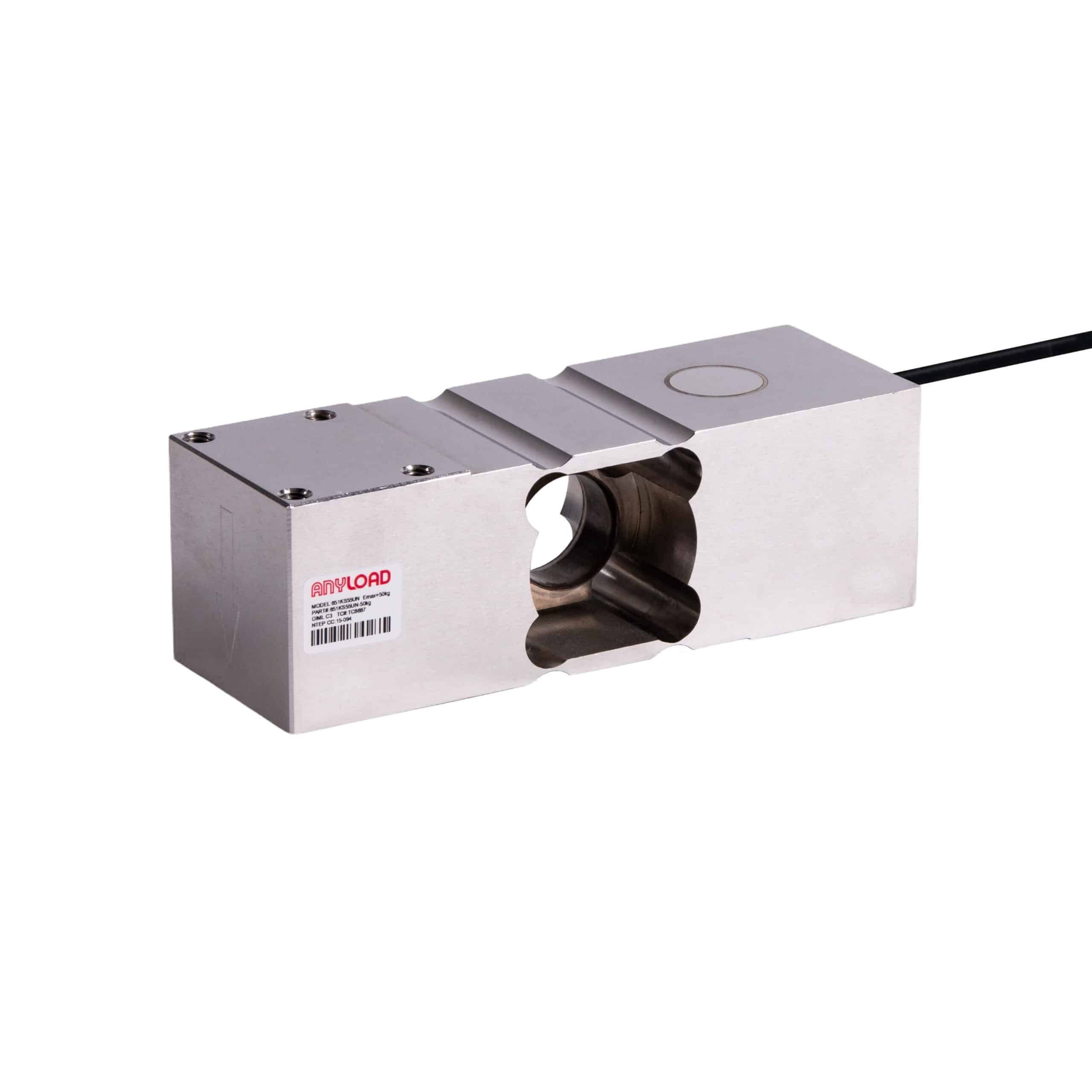

ANYLOAD 651KS55UN Stainless Steel Single Point Load Cell
The ANYLOAD 651KS55UN Single Point Load Cell offers reliable weighing for a broad array of industrial applications. Ingress protection rated IP68, it can withstand the harshest environments. This model is available in 50kg-500kg capacities and features imperial threads for mounting.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,772.00 |
| 10 - 24 | $1,683.40 |
| 25 - 49 | $1,630.24 |
| 50 - 99 | $1,577.08 |
| 100 + | $1,506.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651KS55UN Features
The 651KS55UN Single Point Load Cell from ANYLOAD is a robust and high-precision weighing solution designed for platform scale applications. Built from durable stainless steel, it offers excellent strength and corrosion resistance for long-term reliability. Suitable for platforms up to 610 × 700 mm, it supports a wide range of rated capacities from 50 kg to 500 kg. Its IP68 welded sealing provides superior protection against dust and moisture, ensuring dependable performance even in harsh industrial environments. Ideal for demanding weighing tasks, it delivers accurate and consistent results across various applications.
- Rated Capacities: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg
- Material: 17-4PH Stainless Steel
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
Available Options: 50kg, 100kg, 150kg, 200kg, 250kg & 500kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651KS55UN Single Point Load Cell Specifications
| Rated Capacity | 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg |
| Reference Max. Platform Size | 610mm x 700mm |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.02% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 960Ω ± 50Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
651KS55UN Stainless Steel Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformity |
3D Drawing
 |
651KS55UN-200kg |
Interchangeable Cross Reference
ANYLOAD 651KS55UN Equivalents*
| Manufacturer | Equivalent Model |
| Coti Global | CG-50-1* |
| HBM | PW16 |
| Rice Lake | RL1260 |
| Vishay Tedea-Huntleigh | 1260 |
*All models listed above are aluminum rather than stainless steel
