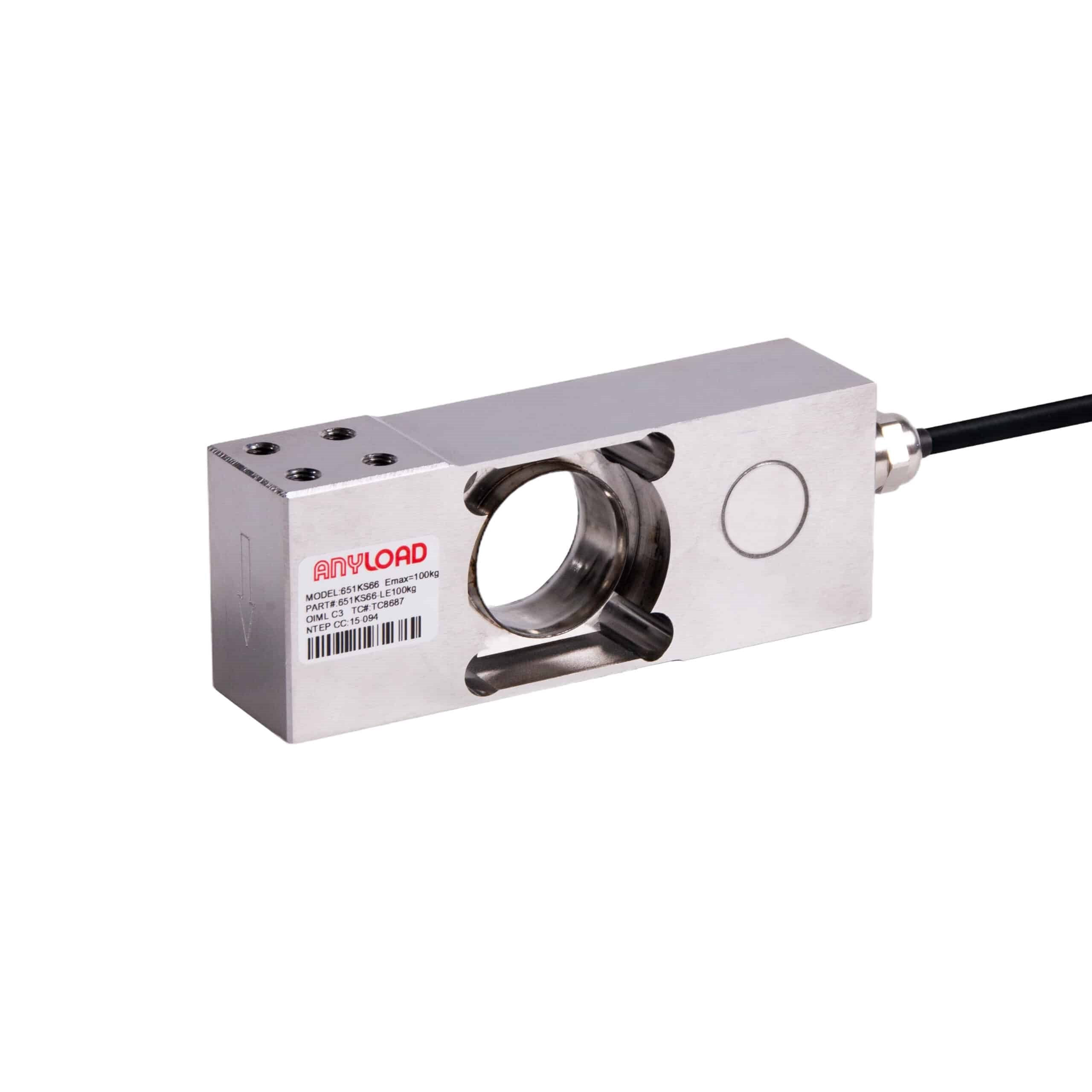

ANYLOAD 651KS66 Stainless Steel Single Point Load Cell
The ANYLOAD 651KS66 Single Point Load Cell offers reliable weighing for a broad array of industrial applications. Ingress protection rated IP68 & IP69K, it can withstand the harshest environments. Available in LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg capacities.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $2,131.20 |
10-24 | 10 - 24 | 5% $2,024.64 |
25-49 | 25 - 49 | 8% $1,960.70 |
50-99 | 50 - 99 | 11% $1,896.77 |
100+ | 100 + | 15% $1,811.52 |
ANYLOAD 651KS66 Key Features
- Stainless steel
- Rated Capacities: LE10kg, LE20kg, LE50kg, LE100kg, LE200kg
- Full Scale Output: 2mV/V ± 5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Seal/IP68/IP69K
Available options: 651KS66-LE10kg, 651KS66-LE20kg, 651KS66-LE50kg, 651KS66-LE100kg, 651KS66-LE200kg
Please contact us with any product interfacing inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD 651KS66 Single Point Load Cell Specifications
Rated Capacities | LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg |
Reference Max. Platform Size | 610mm x 700mm |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.03% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.03% |
Creep in 30 minutes | < ± 0.02% |
Input Resistance | 1100Ω ± 50Ω |
Output Resistance | 960Ω ± 50Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68/IP69K |
Technical Documents
![]() |
651KS66 Stainless Steel Single Point Load Cell Datasheet |
![]() |
651KS66-(LE10-LE200)kg |
![]() |
OIML Certificate of Conformity NTEP Certificate of Conformity CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 651KS66 Interchangeable Cross Reference*
Manufacturer | Equivalent Model |
Flintec | PC6 |
