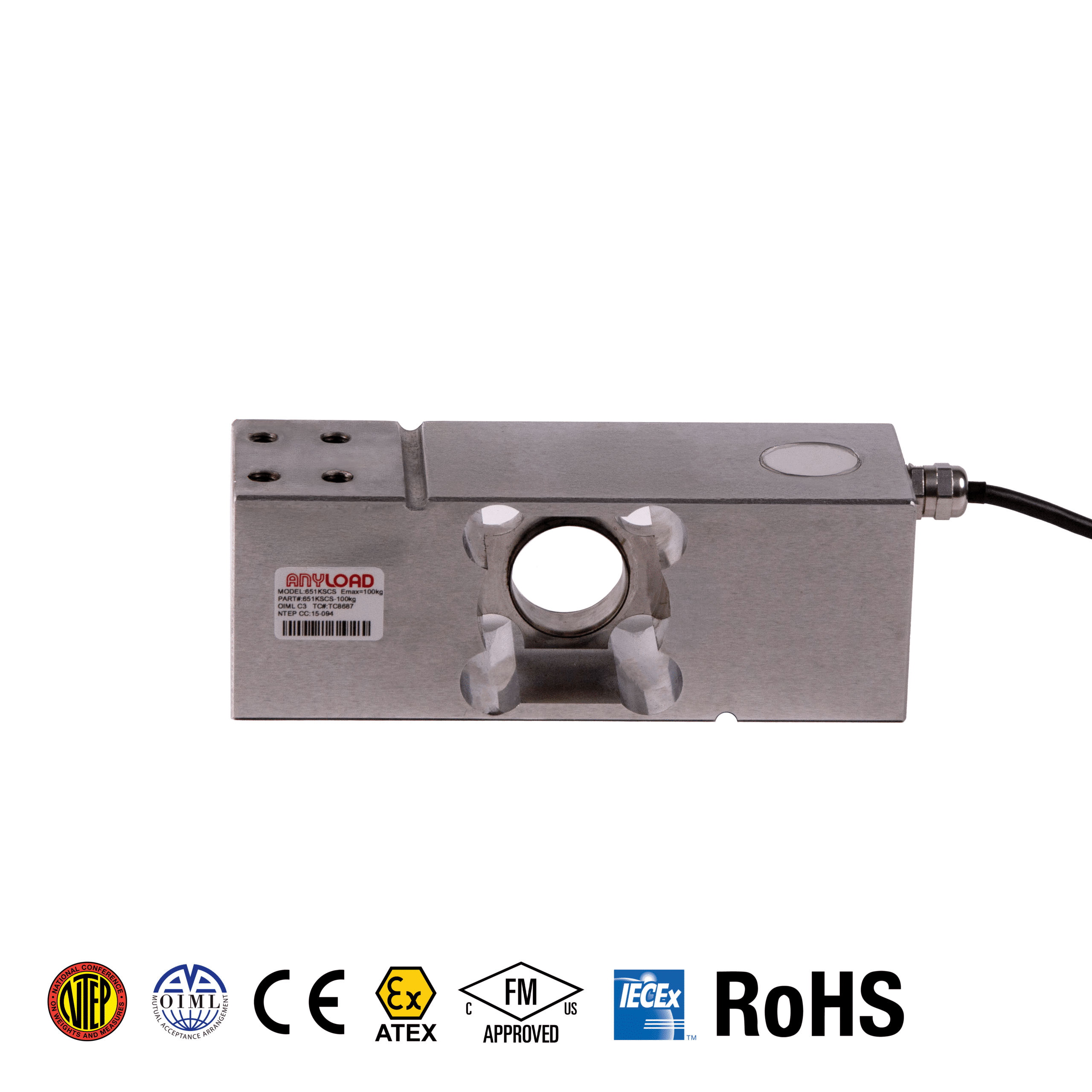

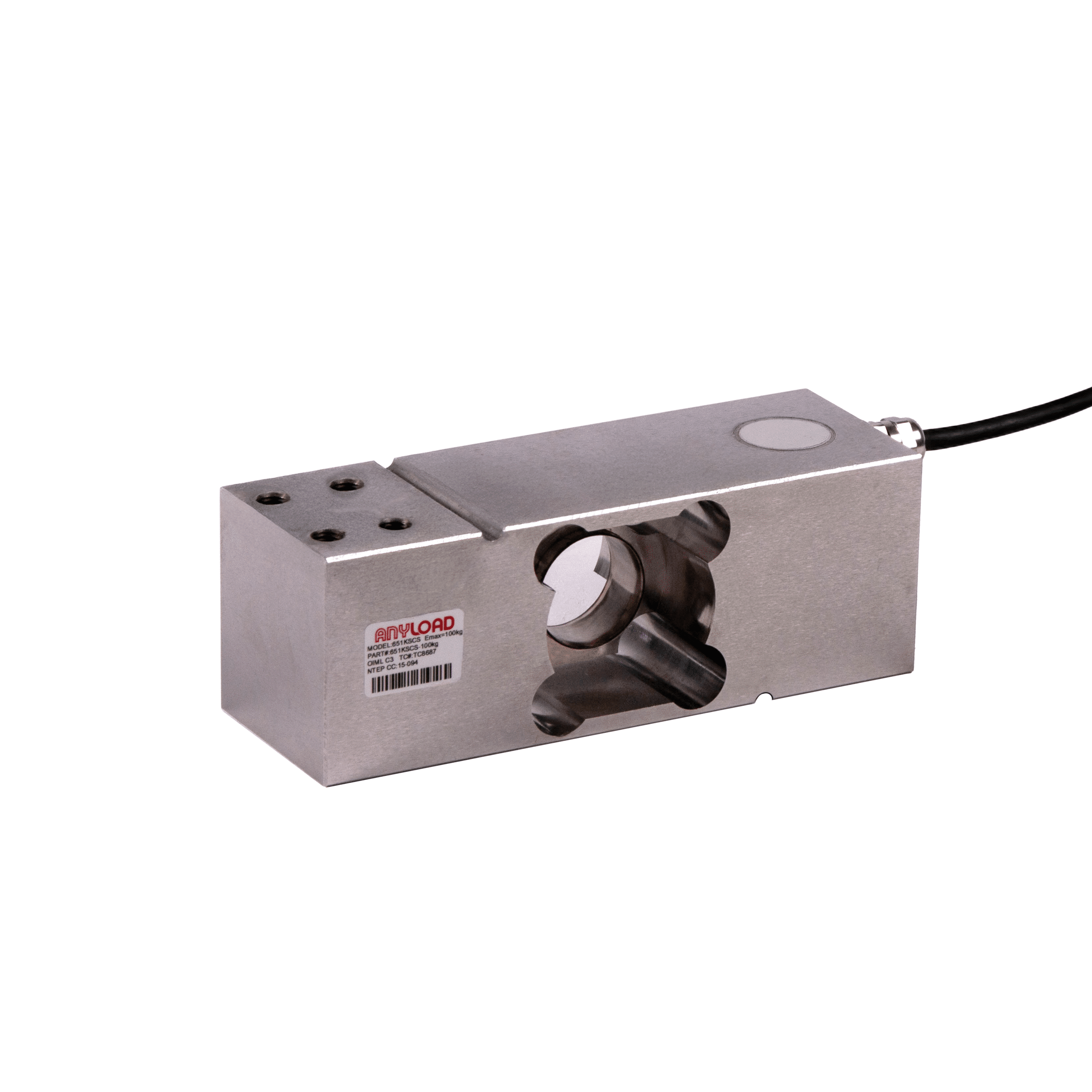

ANYLOAD 651KSCS Stainless Steel Single Point Load Cell
The ANYLOAD 651KSCS stainless steel single-point load cell delivers reliable and accurate weight measurements in harsh environments (IP68). Currently available in 100kg rated capacity, this load cell may be available in other capacities and configurations via special order—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,386.00 |
10-24 | 10 - 24 | 5% $1,316.70 |
25-49 | 25 - 49 | 8% $1,275.12 |
50-99 | 50 - 99 | 11% $1,233.54 |
100+ | 100 + | 15% $1,178.10 |
SKU: 651KSCS
Category: Single Point
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651KSCS Features
- Material: 17-4PH Stainless Steel
- Rated Capacities: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- Seal Type/IP Rating: Welded Seal/IP68
Available Option: 100kg
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651KSCS Single Point Load Cell Specifications
Rated Capacity | 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t |
Reference Max. Platform Size | 600mm x 700mm |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.03% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.02% |
Creep in 30 minutes | < ± 0.03% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 651KSCS Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
651KSCS-(60-1000)kg |
Interchangeable Cross Reference
ANYLOAD 651KSCS Equivalents
This load cell has the same envelope as the aluminum ANYLOAD 108CA single point load cell. |
