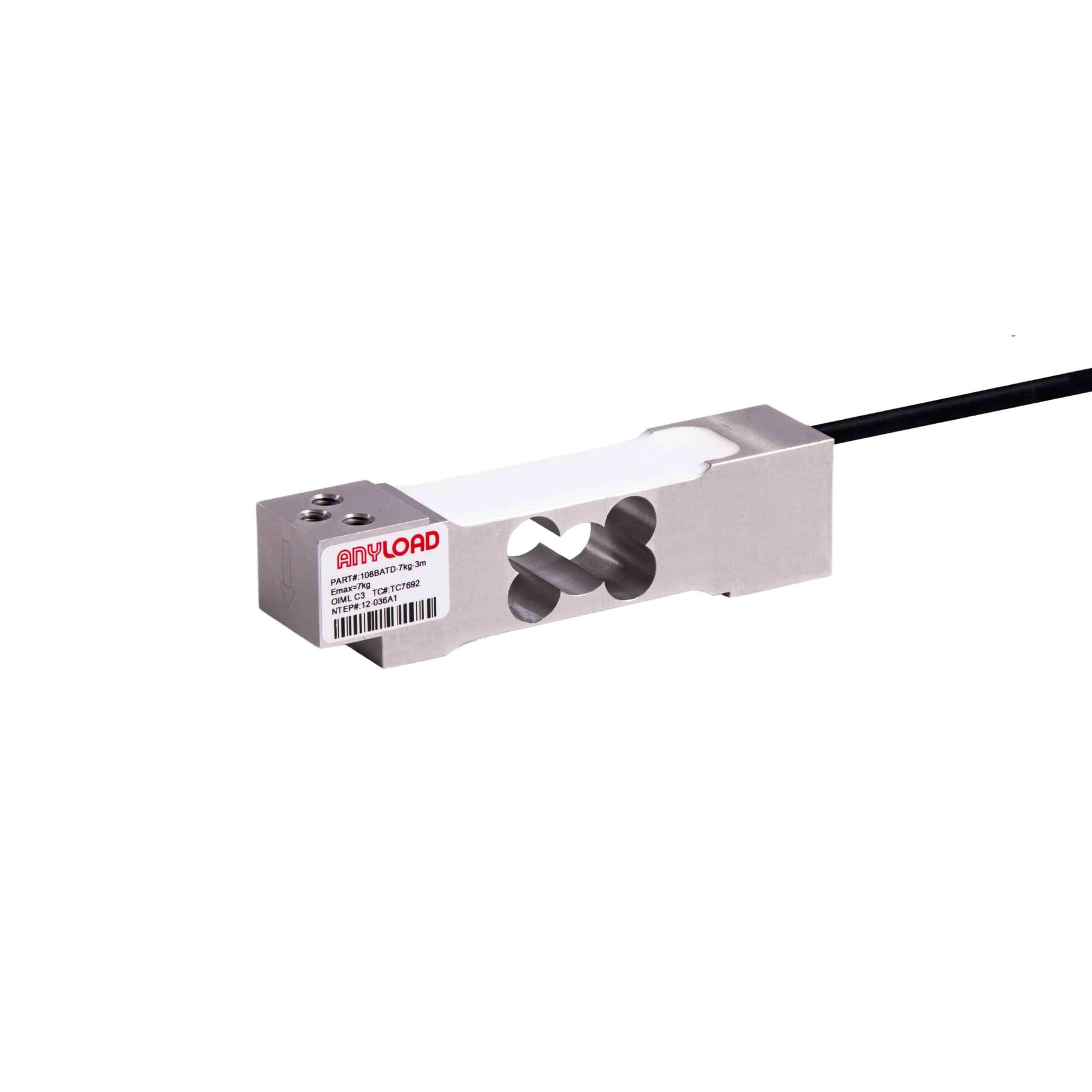

ANYLOAD 108BATD Aluminum Single Point Load Cell
The ANYLOAD 108BATD Single Point Load Cell is an NTEP– and OIML-certified, IP66 waterproof aluminum load cell. Designed for excellent off-center compensation, it is easy to install and ideal for applications such as bench scales, counting scales, and process weighing. Available in capacities ranging from 3kg to 100kg, this load cell meets leading industry safety standards, ensuring reliable performance across various industries.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $166.00 |
10-24 | 10 - 24 | 5% $157.70 |
25-49 | 25 - 49 | 8% $152.72 |
50-99 | 50 - 99 | 11% $147.74 |
100+ | 100 + | 15% $141.10 |
ANYLOAD 108BATD Features
The ANYLOAD 108BATD Single Point Load Cell is an NTEP- and OIML-certified weighing solution, designed with IP66 waterproof aluminum construction for durability in various industrial environments. Its design provides excellent off-center compensation, making it an easy-to-install option for applications such as bench scales, counting scales, and process weighing. Available in capacities ranging from 3kg to 100kg, the 108BATD ensures reliable and accurate measurements. The load cell complies with leading industry safety standards, offering peace of mind in its performance and dependability. Its robust construction and certification make it a versatile and trusted choice for precise weighing needs across a wide range of industries.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell
- 5kg-30kg: OIML MAA C7.5, Y=20 000;
- 50kg-100kg: OIML MAA C6, Y=29 000
- CE, RoHS, NTEP, and Ex Certified
Available Options: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg & 100kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108BATD Load Cell Specifications
Rated Capacity | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg |
Reference Max. Platform Size | 350mm x 350mm |
Full Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 108BATD Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Vishay Tedea-Huntleigh | 1030 |
