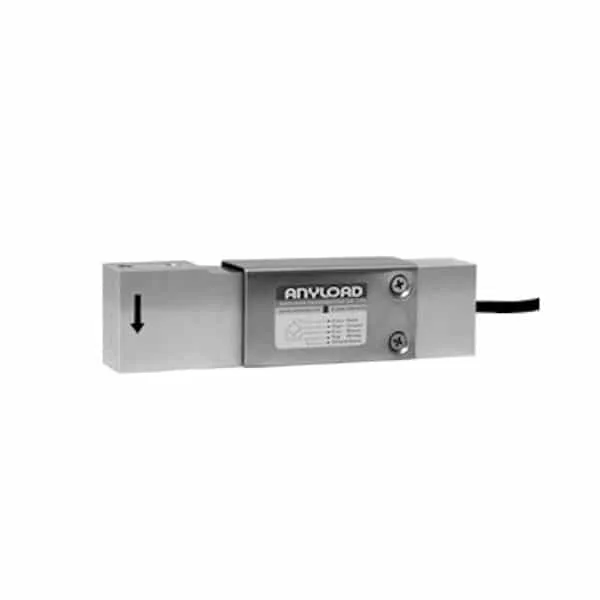

ANYLOAD 651TA Aluminum Single Point Load Cell
The ANYLOAD 651TA single-point load cell is suitable for a wide range of weighing applications, especially those involving off-center loads. Available in capacities from 10kg to 100kg, its aluminum construction is rated IP66. This product complies with leading industry safety standards. The 651TA has metric mounting threads; for imperial threads, see the 651TAUN.
| Quantity | Price |
|---|---|
| 1 - 9 | $200.00 |
| 10 - 24 | $190.00 |
| 25 - 49 | $184.00 |
| 50 - 99 | $178.00 |
| 100 + | $170.00 |
ANYLOAD 651TA Features
- Material: Aluminum, Clear Anodized
- Mounting threads: Metric
- Rated Capacities: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
Available Options: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg & 100kg.
Other capacities may be available; Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651TA Load Cell Specifications
| Rated Capacity | 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg |
| Reference Max. Platform Size | 450mm x 500mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed, Potted |
| IP Rating | IP66 |
| Element Material | Aluminum, Clear Anodized |
| Cable Length | 3.1m |
Technical Documents
 |
651TA Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
651TA-(10-200)kg |
Interchangeable Cross Reference
ANYLOAD 651TA Equivalents
| Manufacturer | Equivalent Model |
| Vishay Tedea-Huntleigh | 1040 (Mounting hole: M6) |
| Vishay Tedea-Huntleigh | 1041 (Mounting hole: M6) |
| Mettler Toledo | MT1041 |
