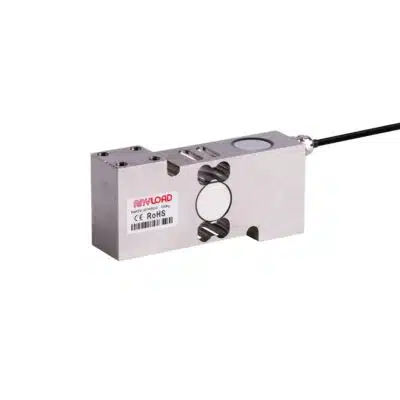

ANYLOAD 651KSGS Stainless Steel Single Point Load Cell
Introducing the 651KSGS Stainless Steel Single Point Load Cell: OIML certified for 50kg-100kg, this IP68-rated load cell is the highest accuracy legal-for-trade solution worldwide. Designed for versatility across various applications, it features temperature compensation from 14°F to 122°F and 150% safe overload capacity. Interchangeable with Mettler Toledo and other models, the 651KSGS is your ultimate weighing solution. Additionally, explore the ANYLOAD 651KSCS variant, offering IP66 protection and available in 100kg, 250kg, and 500kg capacities. Limited availability—contact us before ordering.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $740.00 |
10-24 | 10 - 24 | 5% $703.00 |
25-49 | 25 - 49 | 8% $680.80 |
50-99 | 50 - 99 | 11% $658.60 |
100+ | 100 + | 15% $629.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651KSGS Features
The 651KSGS Stainless Steel Single Point Load Cell is an OIML-certified C9 load cell, offering the highest accuracy for legal-for-trade applications worldwide, with capacities ranging from 50kg to 100kg. Built with IP68-rated stainless steel, it ensures durability and reliability even in harsh environments, featuring temperature compensation between 14°F to 122°F and a 150% safe overload capacity. This load cell is highly versatile, suited for various applications, and is interchangeable with Mettler Toledo models and more (see INTERCHANGEABLE tab for details). Additionally, the ANYLOAD 651KSCS variant provides similar reliable and accurate weight measurements, available in 100kg, 250kg, and 500kg capacities with an IP66 ingress protection rating. Please note that the ANYLOAD 651KSCS has limited availability, so we recommend contacting us before placing an order.
- Material: 17-4PH Stainless Steel
- Environmentally Sealed
- Rated Capacities: 100kg, 250kg, 500kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Available Options: 100kg, 250kg & 500kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651KSGS Load Cell Specifications
Rated Capacity | 100kg, 250kg, 500kg |
Reference Max. Platform Size | 600mm x 600mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.05% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.05% |
Creep in 30 minutes | < ± 0.03% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
ANYLOAD 651KSGS Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
651KSGS-(100-250)kg |
Interchangeable Cross Reference
ANYLOAD 651KSGS Equivalents
Manufacturer | Equivalent Model | Comment |
Mettler-Toledo | SSH | See data sheet for difference in height dimension |
Vishay Tedea-Huntleigh | 1510 |
