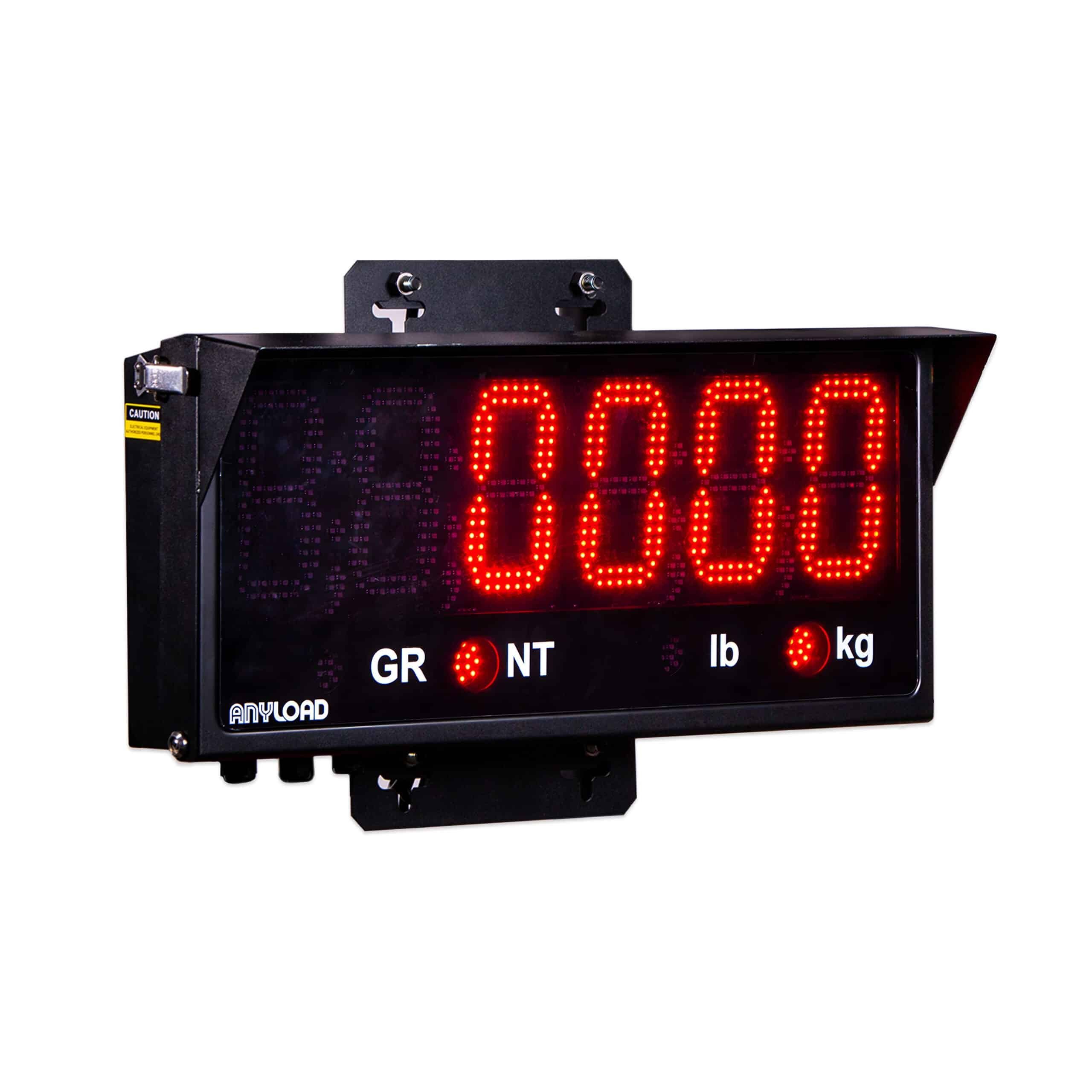

ANYLOAD 808AH Remote Display
The ANYLOAD 808AH is a versatile and rugged industrial remote display designed with an end-user focus. Featuring six five-inch high-intensity LED digits with a wide viewing angle, it ensures clear readability. The IP65-rated weatherproof chassis and easy installation make it ideal for harsh environments. It also includes an Auto-Learn communication and protocol feature for seamless compatibility with a variety of indicators and weighing instruments. A wireless option is available for added flexibility.
$2,128.00
| Quantity | Price |
|---|---|
| 1 - 9 | $2,128.00 |
| 10 - 24 | $2,021.60 |
| 25 - 49 | $1,957.76 |
| 50 - 99 | $1,893.92 |
| 100 + | $1,808.80 |
ANYLOAD 808AH Remote Display Features
The ANYLOAD 808AH is an advanced industrial remote display designed for versatility, durability, and ease of use. With an end-user-focused design, it features six five-inch high-intensity LED digits, providing clear and wide-angle visibility in any environment. The rugged, weatherproof IP65-rated chassis ensures reliable performance even in harsh conditions. The 808AH incorporates an Auto-Learn communication and protocol feature, allowing seamless compatibility with a wide range of indicators and weighing instruments. This remote display is easy to install, making it a practical choice for various industrial applications. For added flexibility, a wireless option is also available. This product conforms to the European Union’s CE safety standards.
Easy-to-Read Display:
- Six 5” (125mm) tall digits LED industrial remote display
- High-intensity, wide viewing angle, discrete LEDs
- Standard seven segments
- Adjustable brightness settings for day and night
- Ambient light sensor for day and night brightness control
Smart Auto-Learn Technology:
- Automatic learn mode to set communication baud rates
- Automatic learn mode to detect incoming string formats
Versatile Settings:
- Displays up to two decimal places with a choice of dot or comma
- Software configuration for custom string formats
- Reverse digits mode for visibility in mirrors
- Menu-driven setup function using a membrane keypad
- Customized software utility programs
- Customized addressable configuration
- Indication of GROSS (GR) or NET (NT) status by annunciators
- Indication of KG (kg) or LB (lb) units by annunciators
Multi-Port Communication Formats:
- Independent ESD protected RS232, RS422/RS485 and 20mA
- Echo out port for RS-232 and RS-422/RS-485
- Switch inputs and a relay output module to control the traffic light
Exterior for Various Environments:
- Standard wall mount and pole mount kits
- Standard sun visor and rain shade
- Metal enclosure with hinged front cover for easy service
- Grey front safety glass
- Weatherproof mild steel powder-coated enclosure
- Internal folding electronic plate for easy wiring
- UL/CSA-approved encapsulated multi-sense voltage power supply
- Breather ventilation to avoid condensation inside the enclosure
Available Option: 808AH (See product brochure)
Contact us with any design or product-related questions before purchase.
Specifications
ANYLOAD 808AH Remote Display Specifications
| Display Digits | 5” (125mm) height, 6 digits, 7 segments |
| Digit Segments | 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 Annunciators for GR, NT, lb, and kg (some versions in kg and t) |
| Decimal Point | 2 Decimal point places with choice of dot or coma |
| Membrane Keypad | 4 Keys dome membrane keypad |
| Brightness Control | 550nm Ambient light sensor to adjust brightness in day and night |
| Communication Ports | 3 Independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse the incoming string |
| Echo Port | 2 Independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 Independent transmit port for non-legal trade printing applications |
| Digital Output | 1 Form C relay output rated at 2A / 60VDC |
| Digital inputs | 2 Independent dry contact switch inputs |
| Main Enclosure | Mild steel powder-coated NEMA 4 / IP65 weatherproof, suitable for outdoor applications |
| Power Supply | Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated |
| Power Consumption | 120VAC @ 0.5A / 12VDC @ 2.5A ( 60W AC / 30W DC ) typical |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 22.2” W X 9.8” H X 3.5” D (565mm X 250mm X 89mm) or 25.9” W X 13.7” H X 5.9” D (658mm X 348mm X 149mm) – mounting brackets & canopy included |
| Total Weight | 7.5 kg (17 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately |
| Industry Approvals | UL/CSA approved class II power supply |
| Certification of Conformity | CE Marking, EMC, and LVD Directives |
