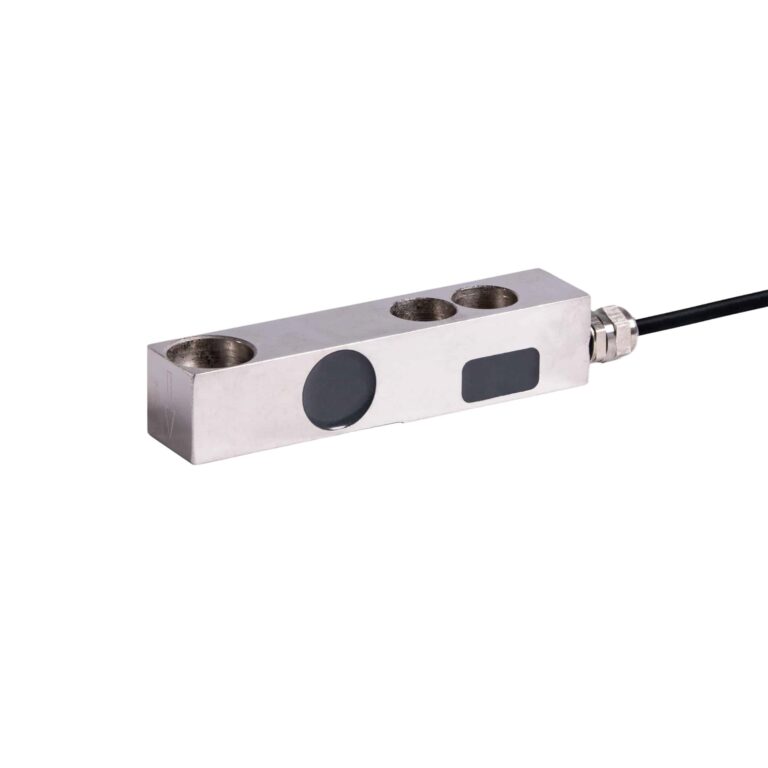

 | ANYLOAD 563YSLB FeaturesThe ANYLOAD 563YSLB Single-Ended Beam Load Cell is a highly… +more ANYLOAD 563YSLB FeaturesThe ANYLOAD 563YSLB Single-Ended Beam Load Cell is a highly reliable and durable weighing solution, designed for demanding applications where precision and resilience are essential. Constructed from 2Cr13 stainless steel, this load cell offers robust water and corrosion resistance with an IP67 rating, making it suitable for harsh environments. Its environmentally sealed design ensures protection against moisture and contaminants, with an IP66 ingress protection rating. Available in capacities ranging from 500lb to 2500lb, the 563YSLB is a versatile and cost-effective alternative to models like the Cardinal LFB-500HMT, LFB-1000HMT, and LFB-2500HMT. Commonly used in floor scales, tank scales, hopper scales, and platform scales, this load cell is engineered to deliver consistent performance in various industrial settings.Material: 2Cr13 stainless steelRated Capacities: 500lb, 1Klb, 2.5KlbFull-Scale Output: 1.85mV/V -1.9mV/VSafe Overload: 150%Breaking Overload:300%IP Rating: IP67CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 500lb, 1Klb, & 2.5Klb.Contact us with any product-related or implementation-related questions. -less | Price: $302.00 | |

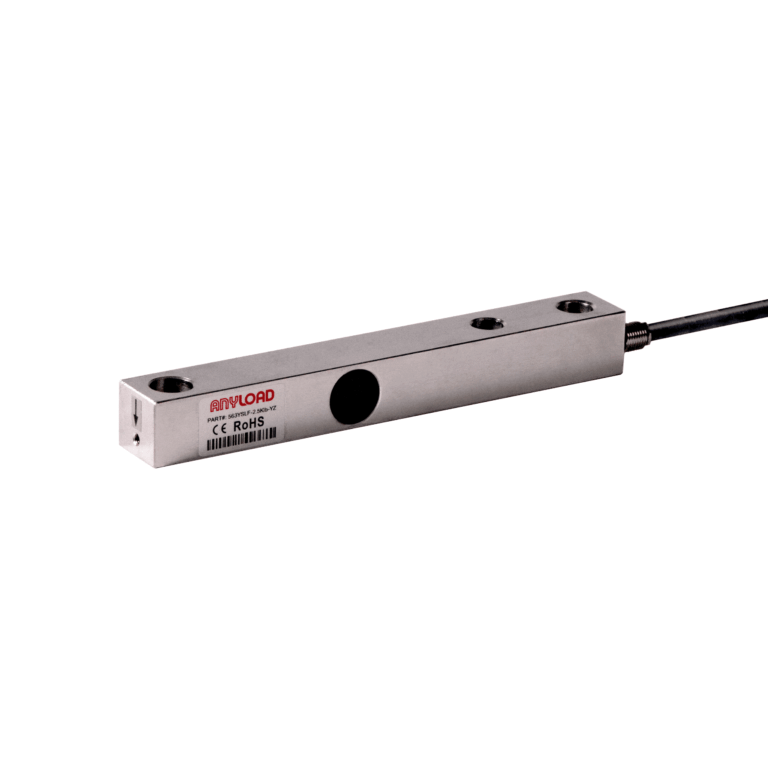

 | ANYLOAD 563YSLF FeaturesThe 563YSLF Single-Ended Beam Load Cell is a robust and… +more ANYLOAD 563YSLF FeaturesThe 563YSLF Single-Ended Beam Load Cell is a robust and reliable stainless steel weighing solution, featuring IP67-rated water and corrosion resistance for demanding environments. Designed for compression applications, it is ideal for use in floor scales, tank scales, hopper scales, and platform scales. This model is interchangeable with Fairbanks 3-53581-X and Cardinal BLF, ensuring versatility and cost-effectiveness. Constructed from environmentally sealed 2Cr13 stainless steel, the 563YSLF load cell is available in capacities ranging from 1.5Klb to 5Klb, with other configurations potentially available upon request. For those seeking durable and accurate performance in medium-capacity applications, the 563YSLF offers an excellent solution.Material: 2Cr13 Stainless SteelRated Capacities: 1.5Klb, 2.5Klb, 5KlbFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 1.5Klb, 2.5Klb, & 5Klb.Contact us with any product-related or implementation-related questions. -less | Price: $474.00-$574.00 | |
 | ANYLOAD 563YSM2 Compression Weigh Module FeaturesAssembles: 563YS Single-Ended Beam Load CellMaterial: 304… +more ANYLOAD 563YSM2 Compression Weigh Module FeaturesAssembles: 563YS Single-Ended Beam Load CellMaterial: 304 Stainless steelDesign capacities: 100lb-10Klb/250kg-2tCenter-pivoted and self-checking with 50% rated load anti-lifting protectionLoad cell not included563YS Load Cell CertificationsNTEP-certified load cells from 1Klb-10KlbOIML-certified load cells from 500kg-2.5tCE, RoHS, and Ex-certified load cellsAvailable Options: 563YSM2-500lb-SE5KlbOther capacities and configurations available – please contact us with any questions -less | Price: $1,062.00 | |

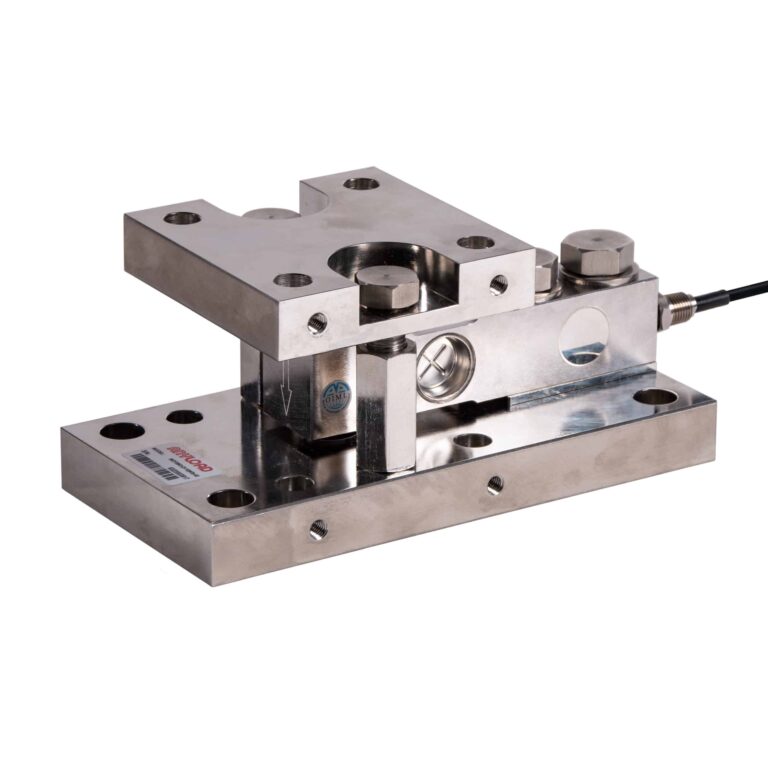

 | ANYLOAD 563YSM3 Compression Weigh Module FeaturesAssembles the 563YS Single-Ended Beam Load CellStainless… +more ANYLOAD 563YSM3 Compression Weigh Module FeaturesAssembles the 563YS Single-Ended Beam Load CellStainless Steel MaterialAvailable Capacities: 500lb-10Klb/250kg-5tRocker pin loading designEquipped with lateral stopsFeatures both overload and 50% anti-lifting protectionLoad cell not included.563YS Load Cell CertificationsNTEP-certified load cells ranging from 1Klb-10KlbCE, RoHS, and Ex ex-certified load cellsAvailable Options: 500lb-SE5Klb, 5Klb, 10Klb, 15Klb, 20KlbContact us for any related questions. -less | Price: $814.00-$1,312.00 | |

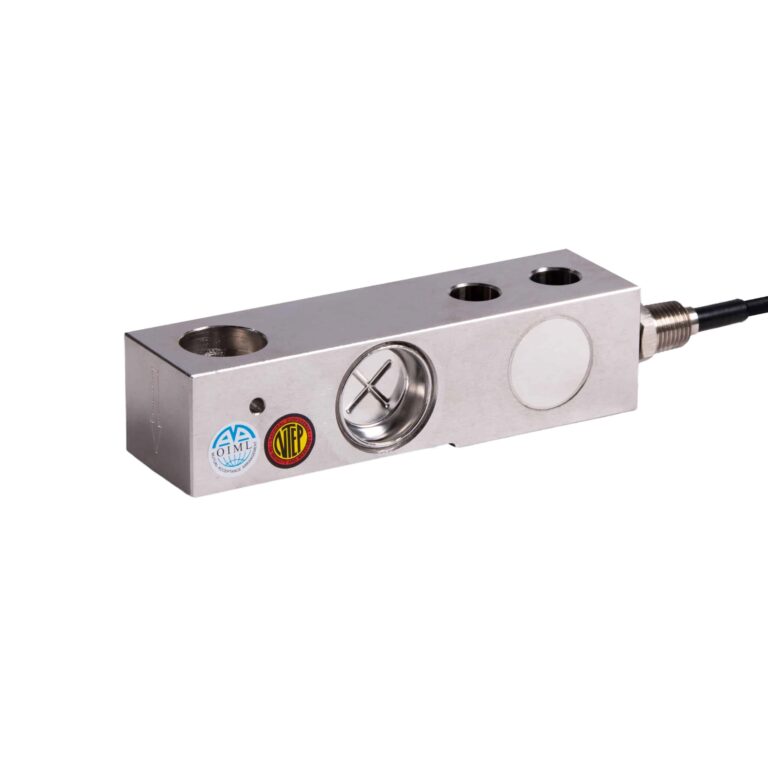

 | ANYLOAD 563YSMT FeaturesThe 563YSMT Single-Ended Beam Load Cell is a compact and… +more ANYLOAD 563YSMT FeaturesThe 563YSMT Single-Ended Beam Load Cell is a compact and cost-effective solution designed for lower to medium-capacity applications, such as platform scales and hopper scales. Its robust 17-4PH stainless steel construction, with IP68-rated water resistance, ensures reliable performance even in rugged environments. Available in capacities ranging from 250lb to 10Klb, the load cell features a weld-sealed design for enhanced durability, with the 250lb-rated option offering IP66 protection. The 563YSMT is also interchangeable with models like Mettler Toledo MT0744 and Rice Lake RL30745, providing versatile compatibility for various industrial applications.Material: 17-4PH Stainless SteelRated Capacities: 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10KlbFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68 / IP66 (250lb only)250lb-2.5Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple4Klb-10Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell1.25Klb-5Klb: up to OIML MAA C5, Y=26 000;10Klb: up to OIML MAA C6, Y=8 500CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestPin available for 500lb-5000lb capacities onlyAvailable Options: 250lb, 500lb, 1.25Klb, 2.5Klb, 5Klb, & 10Klb.Available Mounting Hardware (for 500lb to 5Klb capacities only):563YSMT-(0.5-5)Klb-PIN (See product datasheet for pin dimensions.)Contact us with any product-related or implementation-related questions. -less | Price: $46.00-$760.00 | |

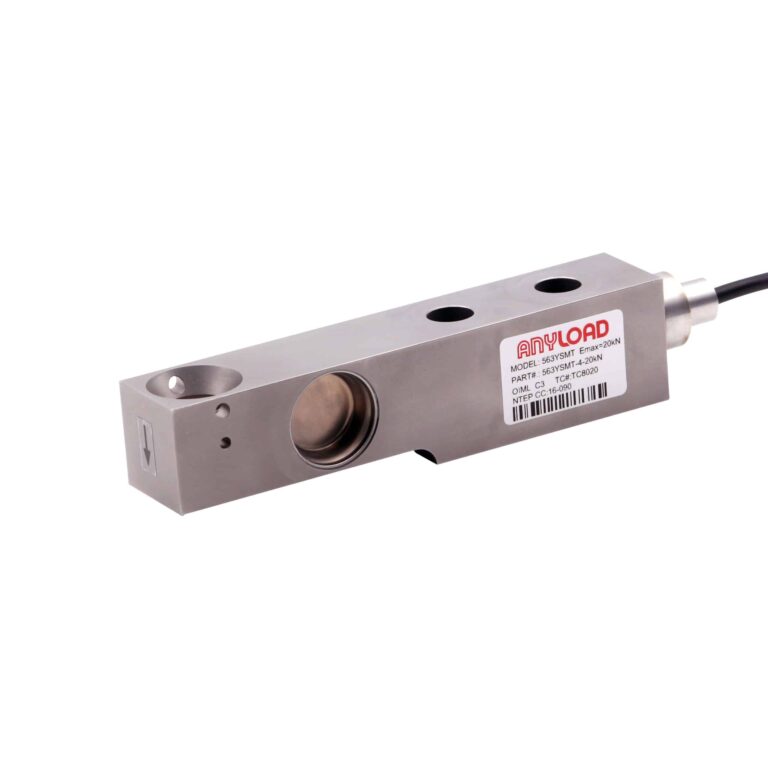

 | 563YSMT-4 Single-Ended Beam Load Cell FeaturesThe 563YSMT-4 is a durable, cost-effective single-ended… +more 563YSMT-4 Single-Ended Beam Load Cell FeaturesThe 563YSMT-4 is a durable, cost-effective single-ended beam load cell designed for precision in low to medium-capacity weighing applications such as platform scales, hopper scales, and other industrial systems. Its compact and low-profile design makes it ideal for installations with limited space without compromising performance. Built with rugged stainless steel and featuring IP68-rated welded sealing, it provides superior resistance to water, moisture, and harsh environmental conditions, ensuring reliable, long-term operation even in demanding field use. This load cell is engineered for versatility and durability, making it an excellent choice for various industrial and commercial weighing setups. Notably, the 563YSMT-4 is fully interchangeable with the Flintec SB4 model, allowing for seamless replacement or system upgrades with minimal adjustments. Whether in food processing, manufacturing, or logistics, this load cell offers exceptional accuracy, longevity, and ease of integration.Material: Stainless SteelRated Capacities: 5kN, 10kN, 20kN, 50kN, 100kNFull-Scale Output: 2.0 mV/V± 0.1%Safe Overload: 200%Breaking Overload: 300%IP Rating: IP685kN-10kN: NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell20kN-50kN: NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell5kN-20kN: OIML MAA C5, Y=26 000;50kN-100kN: OIML MAA C6, Y=8 500CE, RoHS and Ex(NEPSI) certifiedATEX, FM, IECEx available upon requestAvailable Options: 10kN & 20kN.Please contact us with any questions. -less | Price: $906.00 | |

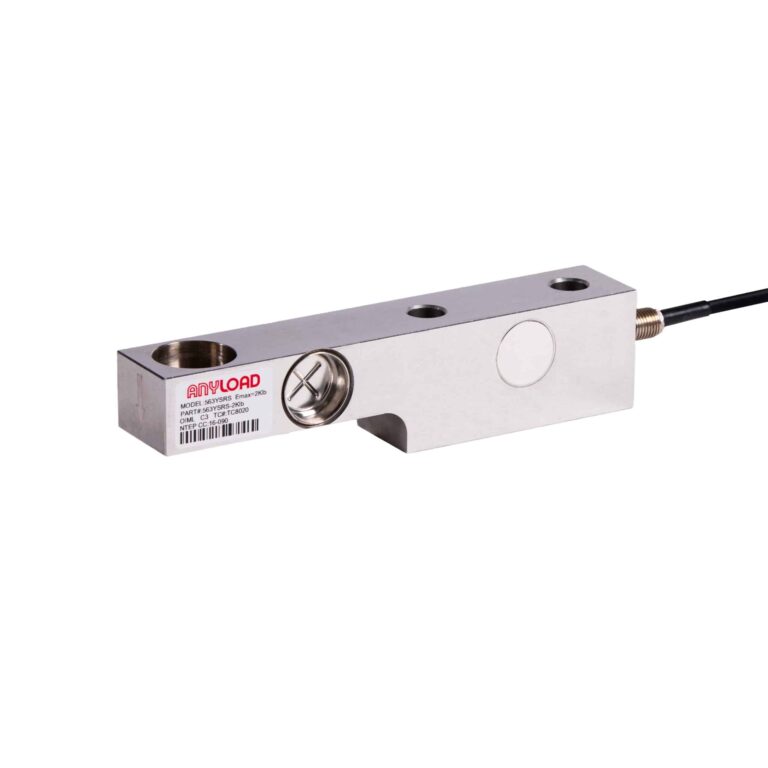

 | ANYLOAD 563YSRS FeaturesThe 563YSRS Single-Ended Beam Load Cell is a compact, low-profile… +more ANYLOAD 563YSRS FeaturesThe 563YSRS Single-Ended Beam Load Cell is a compact, low-profile solution designed for medium-capacity applications such as platform scales, hopper scales, and bench scales. Its cost-effective design is built with weld-sealed 17-4PH stainless steel, providing IP68-rated water and corrosion resistance, making it ideal for rugged environments. Available in capacities ranging from 1Klb to 10Klb, the 563YSRS ensures excellent performance and durability under demanding conditions. Additionally, this load cell is interchangeable with models like the HBM SB3, Rice Lake RLSSB, and Vishay Revere SSB, offering versatile compatibility for various industrial needs.Material: Stainless SteelRated Capacities: 1Klb, 2Klb, 5Klb,10KlbFull-Scale Output: 2mV/V ± 1%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP681Klb-2Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cel5Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple CellUp to OIML MAA C5, Y=26 000CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 1Klb, 2Klb, 5Klb & 10Klb.Contact us with any product-related or implementation-related questions. -less | Price: $732.00-$918.00 | |
 | ANYLOAD 563YSSB FeaturesThe 563YSSB Single-Ended Beam Load Cell is a heavy-duty weighing… +more ANYLOAD 563YSSB FeaturesThe 563YSSB Single-Ended Beam Load Cell is a heavy-duty weighing solution designed for medium-capacity applications, featuring robust IP68-rated, weld-sealed 17-4PH stainless steel construction. This durable design ensures reliable performance across a wide range of applications, including bench scales, process weighing, platform scales, check weighing, and hopper scales, all while maintaining affordability. The 563YSSB is available in capacities ranging from 2.5Klb to 20Klb, with optional rocker pin and spacer insert configurations for enhanced loading flexibility. Additionally, this load cell is interchangeable with models such as the Cardinal SB2500S and Rice Lake RLSB50, making it a versatile and cost-effective choice for various industrial weighing needs.Material: Stainless SteelRated Capacities: 2.5Klb, 5Klb, 10Klb, 20KlbFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP682.5Klb: up to NTEP 1:5000 Class III, Single Cell; NTEP 1:9500 Class III, Multiple Cell5Klb-20Klb: up to NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell2.5Klb-5Klb: up to OIML MAA C5, Y=2600010K-20Klb: up to OIML MAA C6, Y=8500CE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestRocker pin and specialty spacer insert are available for all capacities 2.5Klb-20KlbAvailable Options: 2.5Klb, 5Klb, 10Klb & 20Klb.Available Loading Hardware Options (for capacities 2.5Klb-20Klb – see datasheet for dimensions):F563YSSB-1 Specialty spacer insertF563YSSB-2 Rocker pinContact us with any product-related or implementation-related questions. -less | Price: $38.00-$1,004.00 | |
 | ANYLOAD 651AA FeaturesMaterial: Aluminum, Clear AnodizedRated Capacities: 10kg, 15kg, 30kg, 50kg, 100kgFull-Scale… +more ANYLOAD 651AA FeaturesMaterial: Aluminum, Clear AnodizedRated Capacities: 10kg, 15kg, 30kg, 50kg, 100kgFull-Scale Output: 2mV/V ± 10%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP66Available Options: 10kg, 15kg, 30kg, 50kg, & 100kg.Please contact us with any product-related or implementation-related questions. -less | Price: $222.00 | |
 | ANYLOAD 651BAUN FeaturesMaterial: AluminumThread: ImperialRated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 635kg… +more ANYLOAD 651BAUN FeaturesMaterial: AluminumThread: ImperialRated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1tFull-Scale Output: 2mV/V ± 10%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67Available Options: 100kg, 200kg, 300kg, 500kg, 635kg & 1t.Please contact us with any product-related or implementation-related questions. -less | Price: $302.00 |
