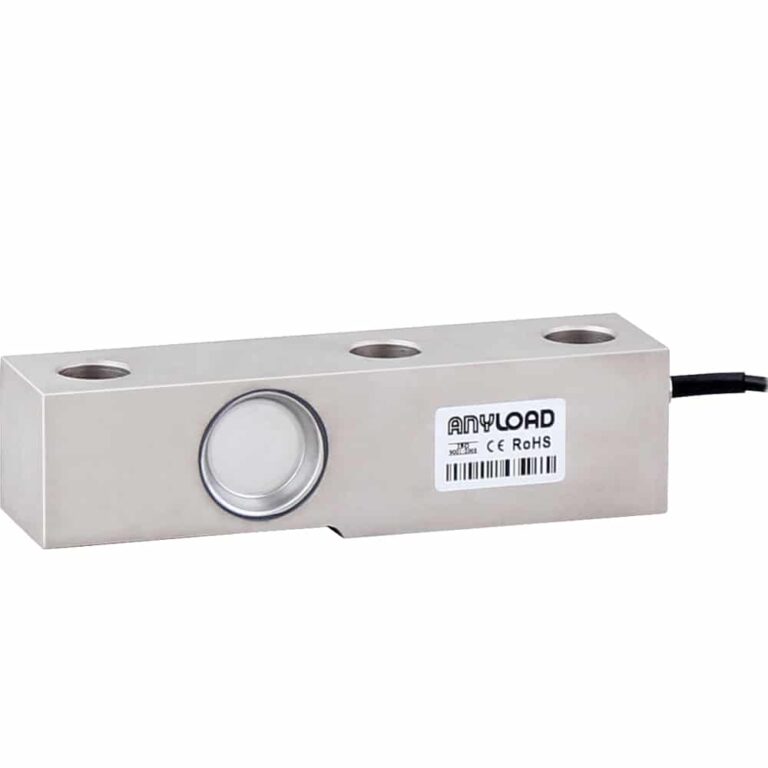

 | ANYLOAD 563YHFK FeaturesThe 563YHFK Single-Ended Beam Load Cell is a versatile and… +more ANYLOAD 563YHFK FeaturesThe 563YHFK Single-Ended Beam Load Cell is a versatile and cost-effective weighing solution designed for lower to medium-capacity applications. Constructed from environmentally sealed, nickel-plated alloy steel, this load cell provides reliable and accurate performance with an ingress protection rating of IP67, ensuring water resistance and durability in demanding environments. It is ideal for use in platform scales, hopper scales, check weighing, and other industrial and technical weighing applications. The 563YHFK is interchangeable with Kelba models (KA125N up to KA10000N), offering flexible compatibility across various systems. This load cell delivers precision and reliability, making it a dependable choice for a wide range of weighing needs.Material: Alloy SteelRated Capacities: 125kg, 250kg, 500kg, 1t, 2.5t, 5t, 10tFull Scale Output: 2.2mV/V ± 0.25% or 2.2mV/V ± 0.05%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP, NCE, RoHS, and Ex Certified125kg-1t: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell2.5t-5t: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell500kg-2.5t: OIML MAA C5, Y=26 000;5t-10t: OIML MAA C6, Y=8 500CE, RoHS and Ex(NEPSI) certifiedATEX, FM, IECEx available upon requestAvailable Options: 125kg, 250kg, 500kg, 1t, 2.5t, 5t & 10t.Contact us with any product-related or implementation-related questions. -less | Price: $350.00-$806.00 | |

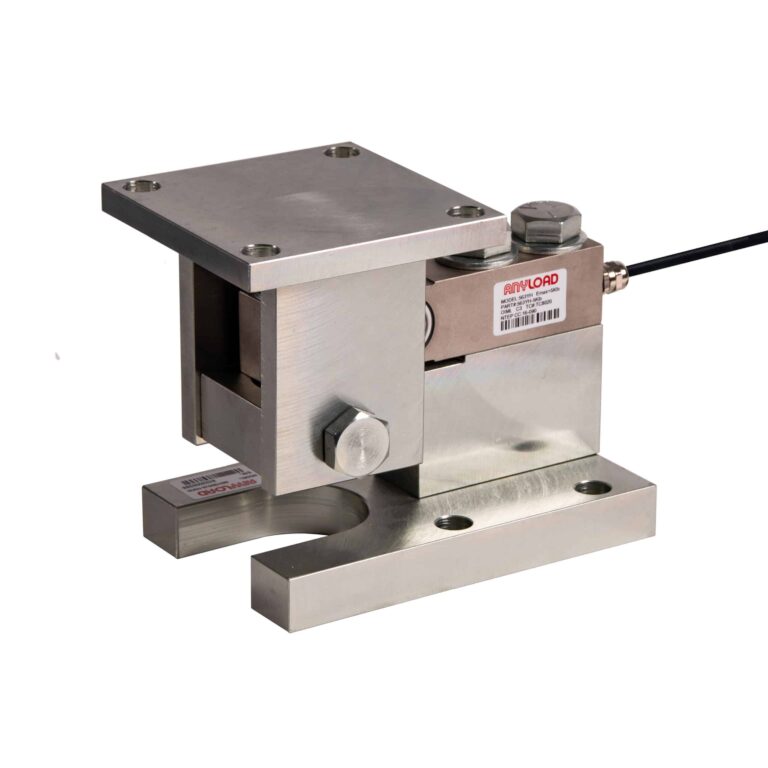

 | ANYLOAD 563YHM2 Compression Weigh Module FeaturesThe ANYLOAD 563YHM2 converts tension loads to… +more ANYLOAD 563YHM2 Compression Weigh Module FeaturesThe ANYLOAD 563YHM2 converts tension loads to compression loads.Assembles the 563YH Single-Ended Beam Load Cell.Material: Alloy SteelCapacities: 100lb-10Klb/250kg-2tCenter-pivoted and self-checking with 50% rated load anti-lifting protectionTension load applied to the load cell is converted to compression load application for the weigh moduleLoad cell not included563YH Load Cell CertificationsNTEP-certified load cells from 1Klb-10KlbOIML-certified load cells from 500kg-2.5tCE, RoHS, and Ex -certified load cellsAvailable Options: 100lb-5Klb-SE & 5Klb-10Klb.Contact us for any inquiries on load cell interfacing. -less | Price: $396.00-$462.00 | |

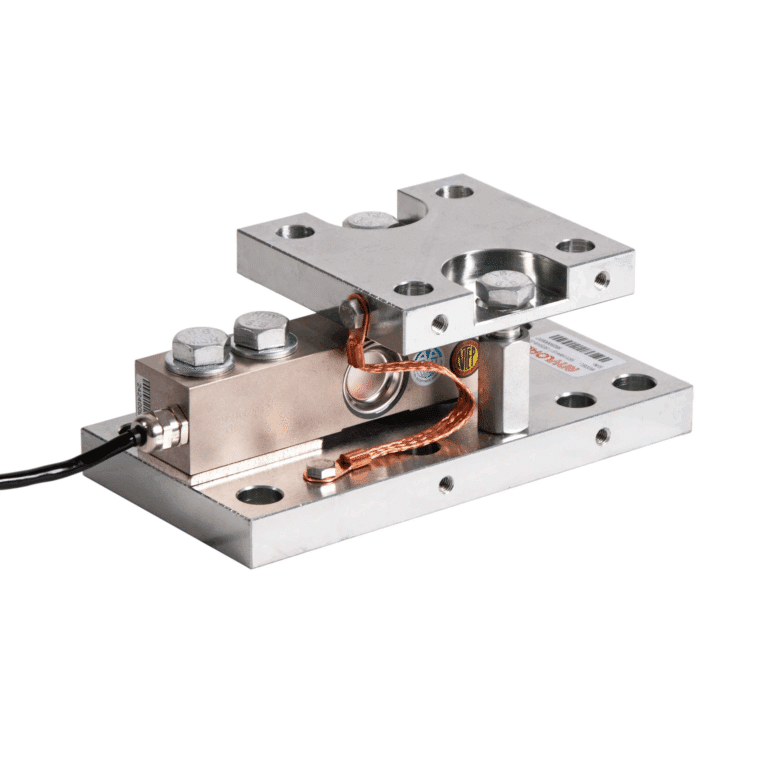

 | ANYLOAD 563YHM4 Compression Weigh Module FeaturesThe ANYLOAD 563YHM4 is a heavy-duty compression… +more ANYLOAD 563YHM4 Compression Weigh Module FeaturesThe ANYLOAD 563YHM4 is a heavy-duty compression weigh module built from high-strength alloy steel for demanding industrial environments. It is specifically designed to pair with the 563YH shear beam load cells (available separately) to deliver accurate, dependable performance in process weighing systems. The module features a compact, low-profile structure with a rocker-pin assembly that allows full 360° movement to accommodate thermal expansion. Integrated uplift restraint, overload protection, and lateral stops help safeguard the system from unexpected forces. Its adaptable mounting design makes it suitable for standard tank and vessel leg configurations. Additional side mounting holes simplify transportation and make bracket installation more convenient. Overall, it provides a robust and reliable solution for weighing tanks, silos, hoppers, and other industrial vessels.Assembles: 563YH Alloy Steel Shear Beam Load CellCapacities: 100lb-20Klb/100kg-10tIntegral “Jacking” for easy load cell removal/installationRocker pin design allows for 360° thermal expansionBoth uplift and overload protection with lateral stopsVersatile mounting options for conventional tank/vessel legAble to use existing 4-square tank leg mount holes in the floorFree to rotate for fixed position 360° w/same 4-mount holesAble to flip the entire mount 180° for further mount optionsSide holes on each side for shipping & installation bracketsFlexible stainless steel braided grounding strapLoad cell sold separately.563YH Load Cell CertificationsNTEP-certified load cells ranging from 1Klb – 10KlbOIML-certified load cells from 500kg – 2.5tCE, RoHS, and Ex certified for all capacitiesAvailable Options: 100lb-SE5Klb & 5Klb-10Klb.Contact us with any related questions. -less | Price: $346.00-$456.00 | |
 | ANYLOAD 563YHM5 Compression Weigh Module FeaturesAssembles: 563YH Single-Ended Beam Load CellMaterial: Alloy steel;… +more ANYLOAD 563YHM5 Compression Weigh Module FeaturesAssembles: 563YH Single-Ended Beam Load CellMaterial: Alloy steel; elastomer bearingCapacities: 100lb-1Klb/100kg-500kgCenter-pivoted and self-checking with 50% rated load anti-lifting protectionCompensates for multi-directional movementsLoad cell not included563YHM CertificationsNTEP certified load cells from 1Klb-10KlbOIML certified load cells from 500kg-2.5tCE , RoHS and Ex certified load cellsAvailable Options: 563YHM5-100lb-1000lbOther capacities and configurations available – please contact us with any related questions. -less | Price: | |

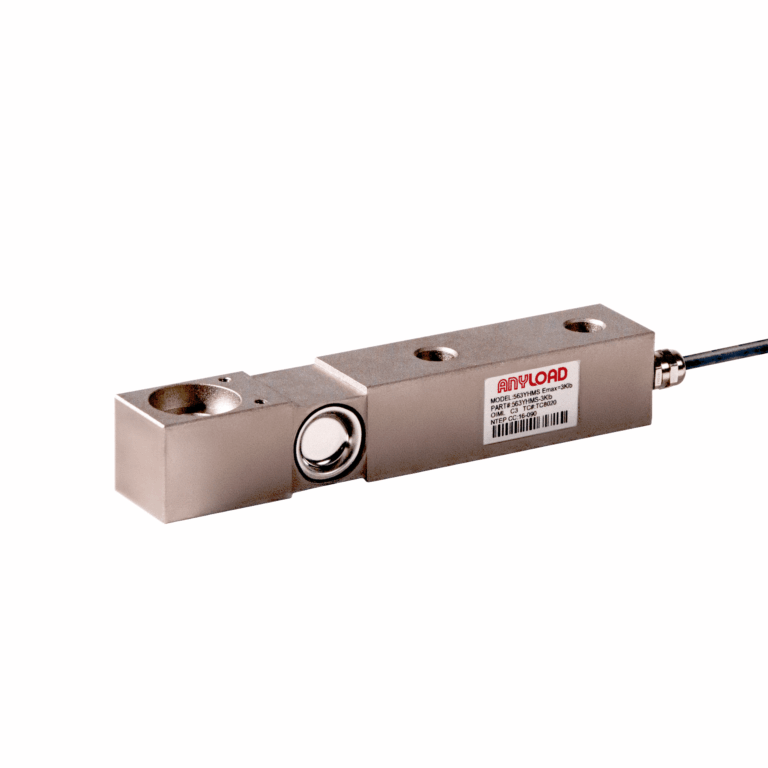

 | ANYLOAD 563YHMS FeaturesThe 563YHMS Single-Ended Beam Load Cell is a heavy-duty, IP67-rated… +more ANYLOAD 563YHMS FeaturesThe 563YHMS Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution designed for superior accuracy and durability in challenging environments. Constructed from nickel-plated, environmentally sealed alloy steel, it offers excellent water resistance and cost-effectiveness, making it ideal for applications such as platform weighing, truck and rail scales, and hopper weighing. Interchangeable with models from Rice Lake (RLSB2MLW, RLSB2L) and Mettler-Toledo (ML4311-4449), the 563YHMS provides versatile compatibility across various industrial settings. Available in capacities ranging from 3Klb to 20Klb, this load cell ensures reliable performance and precise measurements for a wide range of heavy-duty weighing needs.Material: Alloy SteelRated Capacities: 1Klb, 2.5Klb, 3Klb, 4Klb, 5Klb, 10Klb, 20KlbFull-Scale Output: 2mV/V ± 0.07%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP671Klb-3Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell5Klb-20Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell1Klb-5Klb: up to OIML MAA C5, Y=26 000;10Klb-30Klb: up to OIML MAA C6, Y=8 500ATEX, FM, IECEx available upon requestNTEP, NCE, RoHS, and Ex CertifiedAvailable Options: 3Klb, 5Klb, 10Klb, & 20Klb.Contact us with any product-related or implementation-related questions. -less | Price: $584.00-$1,326.00 | |
 | ANYLOAD 563YHRT FeaturesThe 563YHRT Single-Ended Beam Load Cell is a heavy-duty, IP67-rated… +more ANYLOAD 563YHRT FeaturesThe 563YHRT Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution designed for superior accuracy and durability in demanding environments. Constructed from nickel-plated, environmentally sealed alloy steel, it offers excellent water resistance and long-lasting performance. This cost-effective load cell is ideal for applications such as platform weighing, hopper weighing, and more, ensuring reliable measurements even under challenging conditions. Interchangeable with the Vishay Revere 5723, the 563YHRT is available in capacities ranging from 1Klb to 10Klb, making it a versatile choice for various industrial weighing needs.Material: Alloy SteelRated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10KlbNTEP 1:3 500 Class III, Single Cell certified from 1Klb-10KlbOIML MAA C4, Y=15 000 certified from 500kg-2.5tCE, RoHS, and Ex CertifiedATEX, FM, IECEx available upon requestAvailable Options: 1Klb, 2.5Klb, 4Klb, 5Klb & 10Klb.Contact us with any product-related or implementation-related questions. -less | Price: $380.00-$550.00 | |
 | ANYLOAD 563YS FeaturesThe 563YS Single-Ended Beam Load Cell is a robust and… +more ANYLOAD 563YS FeaturesThe 563YS Single-Ended Beam Load Cell is a robust and reliable weighing solution, featuring stainless steel welded-seal construction with an IP68 rating for water and corrosion resistance. Its low-profile design is easy to install and is compatible with VPG, Rice Lake, HBM, and Coti Global models, making it a versatile choice for various applications, including platform scales, hopper scales, tank scales, and process weighing. With a Full-Scale Output (FSO) of 2mV/V, this cost-effective load cell is frequently used in OEM applications where precision and durability are essential. To ensure optimal performance, an optional 563YSM3 compression weight module is available, offering easy installation, thermal expansion allowance, and protection from irregular loading and lifting forces. This makes the 563YS an excellent choice for industrial weighing needs where reliability and ease of installation are paramount.Material: 17-4PH Stainless SteelRated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10tFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10KlbCE, RoHS, and Ex CertifiedATEX, FM, and IECEx available upon requestAvailable Options: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb & 20Klb.Installation modules: ANYLOAD 563YSM2, 563YSM3Contact us with any product-related or implementation-related questions. -less | Price: $356.00-$988.00 | |

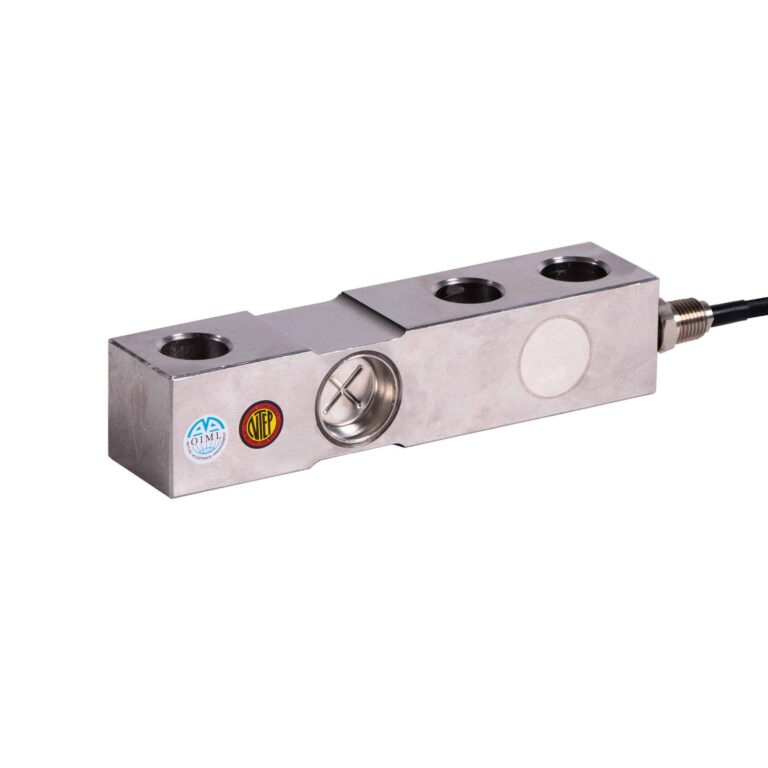

 | ANYLOAD 563YS30 FeaturesThe 563YS30 Single-Ended Beam Load Cell is a medium-to-high-capacity weighing… +more ANYLOAD 563YS30 FeaturesThe 563YS30 Single-Ended Beam Load Cell is a medium-to-high-capacity weighing solution, featuring stainless steel welded-seal construction with IP68-rated water and corrosion resistance. This 3mV/V iteration of the 563YS model is designed for reliable performance in demanding environments, making it ideal for platform scales, hopper scales, tank scales, and process weighing. Its low-profile design is easy to install and is interchangeable with models from VPG, Rice Lake, HBM, and Coti Global, providing versatile compatibility for various applications, including OEM use. To facilitate proper loading and installation, the 563YS30 can be paired with the 563YSM3 compression weigh module, which offers easy mounting, thermal expansion allowance, and protection from irregular loading and lifting forces. This cost-effective load cell is an excellent choice for those seeking durability and accuracy in industrial weighing applications.Material: 17-4PH Stainless SteelRated Capacities: 500lb, 1Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68563YS30, 500lb-2.5Klb: up to NTEP 1:5 000 Class III, S; NTEP 1:9 500 Class III, M4Klb-20Klb: up to NTEP 1:6 000 Class III, S; NTEP 1:10 000 Class III, M563YS30, 1Klb-5Klb: up to OIML MAA C4, Y=15 000;10Klb-20Klb: up to OIML MAA C6, Y=8 500;NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10KlbCE, RoHS, and Ex certifiedATEX, FM, IECEx available upon requestAvailable Options: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb & 20Klb.Installation Modules: ANYLOAD 563YSM2, 563YSM3Contact us with any product-related or implementation-related questions. -less | Price: $356.00-$988.00 | |

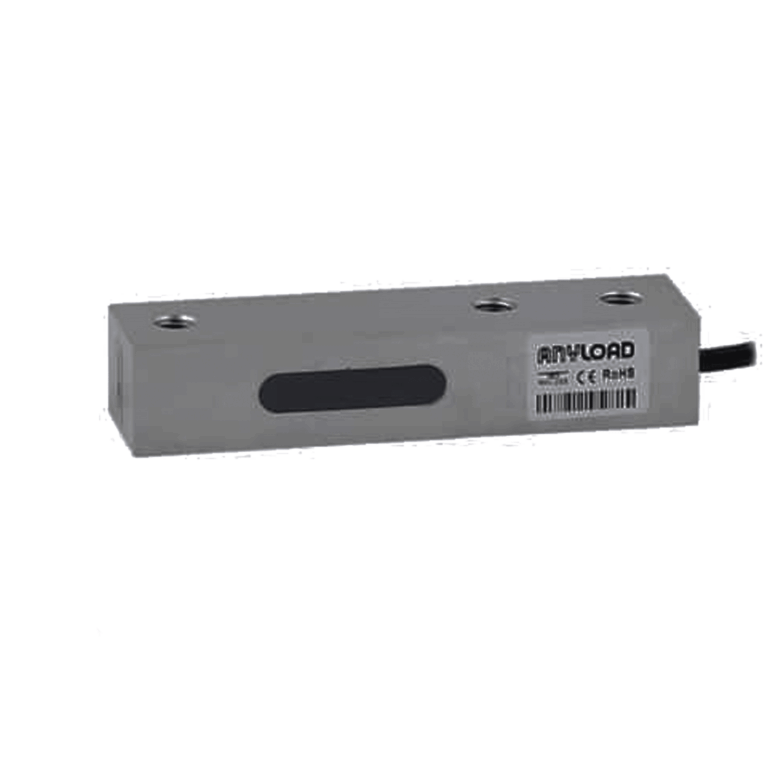

 | ANYLOAD 563YSBKUN FeaturesThe ANYLOAD 563YSBKUN Single-Ended Beam Load Cell features a low-profile… +more ANYLOAD 563YSBKUN FeaturesThe ANYLOAD 563YSBKUN Single-Ended Beam Load Cell features a low-profile design ideal for applications requiring narrow clearance. Constructed from environmentally sealed 2Cr13 stainless steel, it boasts an ingress protection rating of IP67, making it water-resistant and suitable for various demanding environments. With a capacity of 500kg and imperial mounting threads, this load cell is particularly well-suited for industries needing reliable and portable compression weighing solutions. Its compact design is popular in medical applications, such as hospital beds, and in food processing, where washdown water resistance is essential. Additionally, it is commonly used in mobile weighing platforms, tank weighing, pallet scales, and hopper scales. This high-performance load cell provides an excellent balance of durability, reliability, and versatility for numerous industrial applications.Material: 2Cr13 Stainless SteelThread: ImperialRated Capacities: 200kg, 500kg, 1t, 2tFull-Scale Output: 2mV/V ± 0.1%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE, RoHS, and ExNepsi certifiedATEX, FM, IECEx available upon requestAvailable Options: 200kg, 500kg, 1t, & 2t.Contact us with any product-related or implementation-related questions. -less | Price: $290.00 | |

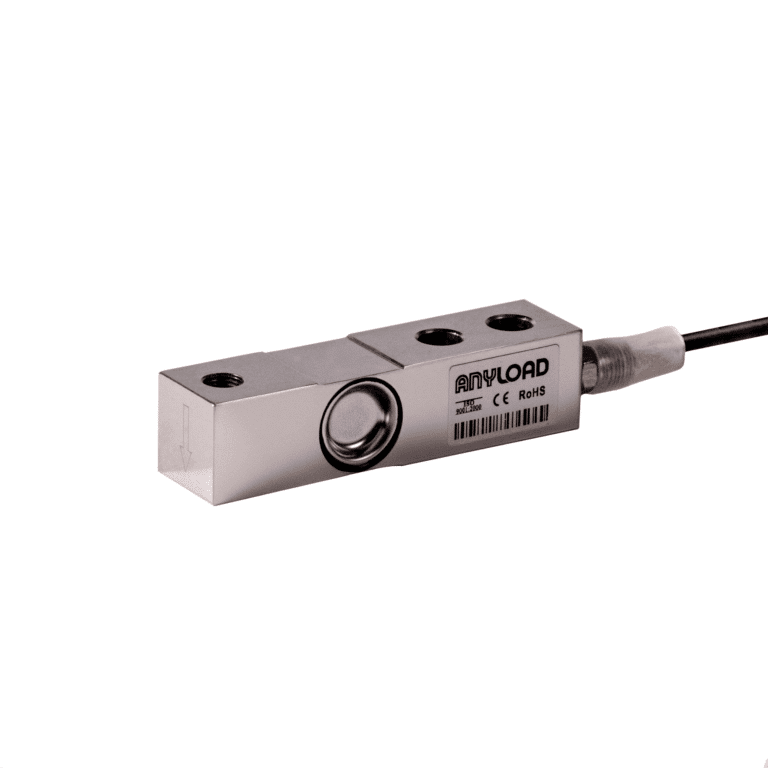

 | ANYLOAD 563YSGS FeaturesThe ANYLOAD 563YSGS Single-Ended Beam Load Cell is a compact… +more ANYLOAD 563YSGS FeaturesThe ANYLOAD 563YSGS Single-Ended Beam Load Cell is a compact, low-profile solution designed for lower to medium-capacity applications, such as platform and hopper scales. Its cost-effective design, combined with the rugged durability of glue-sealed stainless steel construction, ensures reliable performance in demanding environments. With an IP67 ingress protection rating, this load cell is water-resistant, making it ideal for use in harsh conditions. It is available in capacities ranging from 1Klb to 4Klb, with additional configurations offered upon request. For more information or to explore custom options, please contact us.Material: Stainless SteelRated Capacities: 1Klb, 2.5Klb, 4KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb500kg-2t: up to OIML MAA C4, Y=15 000;3t-10t: up to OIML MAA C6, Y=8 500CE, RoHS, and Ex certifiedATEX, FM, IECEx available upon requestAvailable Options: 1Klb, 2.5Klb, & 4Klb.Contact us with any product-related or implementation-related questions. -less | Price: $320.00 |
