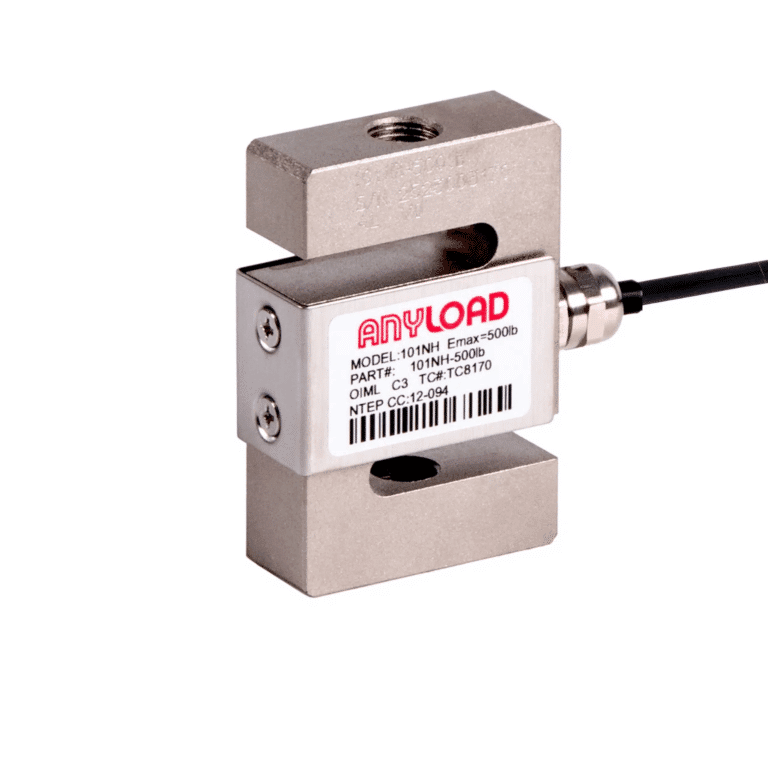

 | ANYLOAD 101NH FeaturesThe ANYLOAD 101NH S-beam load cell combines high-performance specifications with… +more ANYLOAD 101NH FeaturesThe ANYLOAD 101NH S-beam load cell combines high-performance specifications with a robust, user-friendly design, making it a top choice for a broad spectrum of weighing and tension measurement applications. Certified by both OIML C3/C4.5 and NTEP, this load cell assures compliance with industry standards for accuracy and safety, suitable for tasks ranging from tank weighing to hopper and process weighing. Constructed from nickel-plated alloy steel and boasting an IP67 rating, it ensures durability and resistance to water, enhancing its utility in diverse environments. The 101NH is designed for ease of installation, featuring threaded mounting holes that accommodate a variety of fixtures, making it a straightforward choice for retrofitting or new setups. It’s also fully interchangeable with several other models like Rice Lake RL20000 and Revere 363, underscoring its versatility. Whether for basic tension weighing or complex industrial applications, the ANYLOAD 101NH provides reliable, precise measurements and is compatible with an extensive range of force measurement systems.Material: Alloy SteelRated Capacities: 50lb, 100lb, 200lb, 250lb, 300lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20KlbFull-Scale Output: 3mV/V ± 1%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:4 500 Class III, Single Cell certified from 100lb-500bNTEP 1:5 500 Class III, Single Cell certified from 1Klb-20KlbOIML MAA C3, Y=17 000 certified from 200kg-1.5tOIML MAA C4.5, Y=14 000 certified from 2t-10tCE, RoHS, and Ex certifiedAvailable Options: 50lb, 100lb, 200lb, 250lb, 300lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb & 20Klb-35ft.Installation Module: ANYLOAD 101NHM2Please contact us with any product-related questions. -less | Price: $160.00-$860.00 | |
 | ANYLOAD 101NH-LE FeaturesMaterial: Alloy SteelRated Capacities: 5Klb, 10KlbFull-Scale Output: 3mV/V ± 0.25%Safe… +more ANYLOAD 101NH-LE FeaturesMaterial: Alloy SteelRated Capacities: 5Klb, 10KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:5 000 Class IIIL, Multiple Cell accuracyOIML MAA C4.5, Y=14 000 AccuracyCE, RoHS, and Ex(NEPSI) certifiedATEX, FM, and IECEx available upon requestAvailable Options: LE5Klb & LE10KlbPlease contact us with any product-related questions. -less | Price: $352.00 | |
 | ANYLOAD 101NHM2 Tension Weigh ModuleAssembles: 101NH S-Beam Load CellMaterial: Alloy SteelCapacities: 50lb-10KlbNTEP-certified… +more ANYLOAD 101NHM2 Tension Weigh ModuleAssembles: 101NH S-Beam Load CellMaterial: Alloy SteelCapacities: 50lb-10KlbNTEP-certified load cells from 100lb-20KlbOIML-certified load cells from 200kg-10tCE, RoHS, and ex-certified load cellsPushes stray currents through the grounding strap to bypass the load cellEnables high-accuracy tension loadingLoad cell is not includedAvailable Options: 50lb-250lb, 500lb-2Klb, 5Klb & 10Klb.Please contact us with any product-related questions. -less | Price: $328.00-$692.00 | |
 | ANYLOAD 101NHM3 Tension Weigh ModuleAssembles: 101NHM3 S-Beam Load CellMaterial: Alloy SteelCapacities: 500lb-10KlbNTEP-certified… +more ANYLOAD 101NHM3 Tension Weigh ModuleAssembles: 101NHM3 S-Beam Load CellMaterial: Alloy SteelCapacities: 500lb-10KlbNTEP-certified load cellsOIML-certified load cellsCE, RoHS, and Ex-certified load cellsEnables high accuracy tension loading & repeatabilityAlso available for our stainless steel load cells 101NSGS and 101BS S-Beam load cells up to 10KlbLoad cell is not includedAvailable Options: (0.5-3)Klb & (5-10)Klb.Please contact us with any product-related questions. -less | Price: $386.00-$428.00 | |

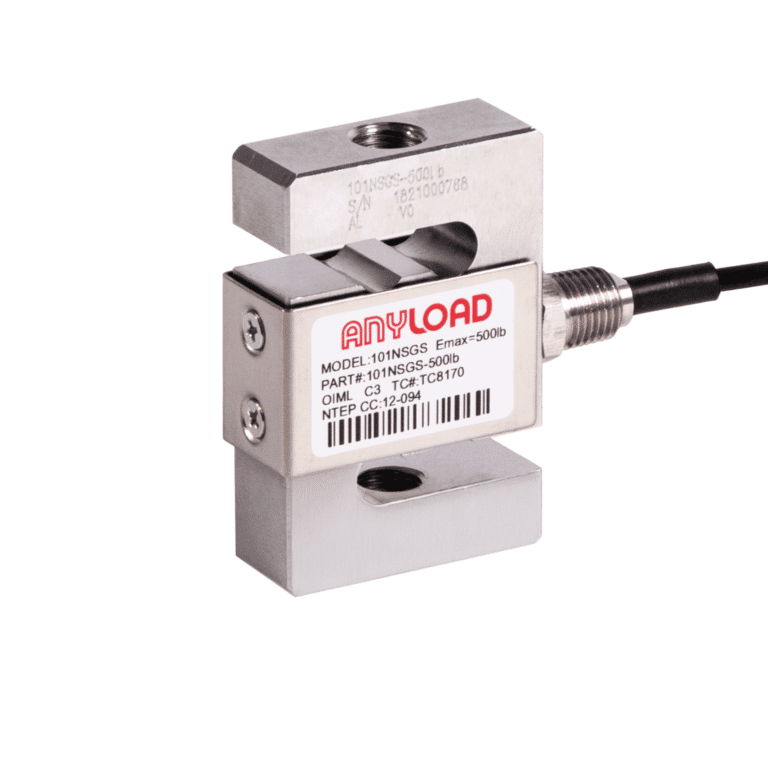

 | ANYLOAD 101NSGS FeaturesThe ANYLOAD 101NSGS S-Beam Load Cell is made from durable… +more ANYLOAD 101NSGS FeaturesThe ANYLOAD 101NSGS S-Beam Load Cell is made from durable 17-4PH stainless steel and offers capacities from 500lb to 10,000lb. With its IP67 rating, it resists water and corrosion, ensuring reliable performance in tough conditions. Additionally, it meets international safety standards and is certified to OIML C3/C4.5 and NTEP standards. Moreover, it is compatible with models from Vishay, Coti Global, and Rice Lake, making it easily interchangeable. Commonly, it is used for tank weighing, process weighing, and hoppers. Overall, this versatile load cell handles various force measurement and tension weighing needs.Material: Stainless SteelRated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20KlbFull-Scale Output: 3mV/V ± 1%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:3 000 Class III, Single Cell certified from 100lb-3KlbNTEP 1:4 500 Class III, Single Cell certified from 5Klb-20KlbOIML MAA C3, Y=17 000 certified from 200kg-1.5tOIML MAA C4.5, Y=14 000 certified from 2t-10tCE, RoHS, and Ex certifiedATEX, FM, and IECEx available upon requestAvailable Options: 50lb, 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb & 20Klb.Please contact us with any product interfacing inquiries. -less | Price: $346.00-$1,390.00 | |

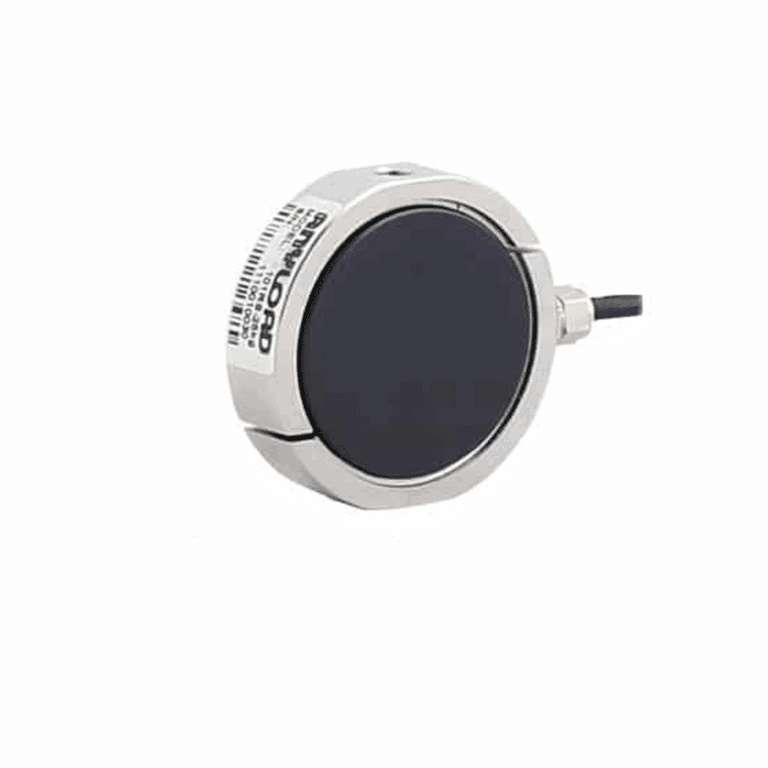

 | ANYLOAD 101RS FeaturesThe ANYLOAD 101RS is a sleek and durable S-beam type… +more ANYLOAD 101RS FeaturesThe ANYLOAD 101RS is a sleek and durable S-beam type load cell, built for reliable tension and compression measurements in compact or lightweight applications, such as testing instruments and hand-held portable devices. Constructed from 17-4PH stainless steel, it features intrinsic overload stops for both tension and compression, ensuring robust performance. With a compact size of approximately 2 inches in diameter, it is ideal for precise measurements in medical, laboratory, and other environments requiring compact solutions. The IP66 water-resistant rating allows it to perform reliably in challenging conditions. Available in capacities ranging from 100 to 750 Newtons, the 101RS is a versatile solution for a variety of weighing and force measurement needs. This environmentally sealed transducer meets leading international safety requirements, making it a trusted choice for accurate and dependable measurements.Material: 17-4PH Stainless SteelRated Capacities: 100N, 250N, 500N, 750NFull-Scale Output: 2mV/V ± 1.0%Safe Overload: 150%Breaking Overload: 300%Overload stops in both compressive and tensile directionsEnvironmentally Sealed; IP Rating: IP66 CE, RoHS, and ExNEPSI-certifiedATEX, FM, IECEx available upon requestAvailable Options: 100N, 250N, 500N & 750N.Please contact us with any product-related questions. -less | Price: $940.00 | |
 | ANYLOAD 101RSLS FeaturesThe ANYLOAD 101RSLS Stainless Steel S-Beam Load Cell is a… +more ANYLOAD 101RSLS FeaturesThe ANYLOAD 101RSLS Stainless Steel S-Beam Load Cell is a high-quality, versatile solution designed for both tension and compression weighing applications. Its robust stainless steel construction provides excellent durability and resistance to corrosion, making it ideal for use in harsh industrial environments. With an IP40 ingress protection rating, it is well-suited for applications that require protection against water and dust, ensuring reliable performance over time. Commonly used in hanging scales, hopper scales, and force measurement systems, this load cell delivers superior accuracy and consistency in demanding applications. Available in various capacities, the ANYLOAD 101RSLS is a reliable choice for industrial weighing and force measurement needs.Material: Stainless SteelRated Capacities: 250g, 1lb, 2lb, 3lb, 5lb, 10lb, 25lb, 50lb, 100lbFull-Scale Output: 1.0mV/V ± 20% (250g); 2.0mV/V ± 20% (1-100lb)Safe Overload: 1000% of full scale (1-25lb); 200% of full scale (50-100lb) for tension onlyIP Rating: IP40Available Options: 250g, 1lb, 2lb, 3lb, 10lb, 25lb, 50lb & 100lb. -less | Price: $1,084.00 | |

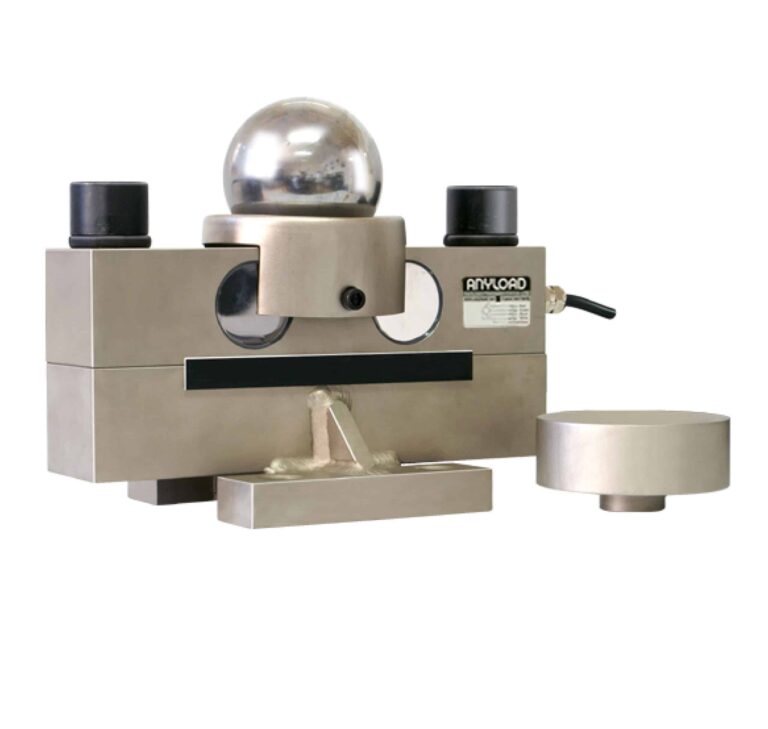

 | ANYLOAD 102AH FeaturesMaterial: Alloy SteelRated Capacity: 5t, 10t, 15t, 20t, 25t, 30t… +more ANYLOAD 102AH FeaturesMaterial: Alloy SteelRated Capacity: 5t, 10t, 15t, 20t, 25t, 30t, 50tFull Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE, RoHS, and Ex -certifiedATEX, FM, IECEx available upon requestAvailable Options: 20t & 30t.Please contact us with any product-related questions. -less | Price: $826.00 | |

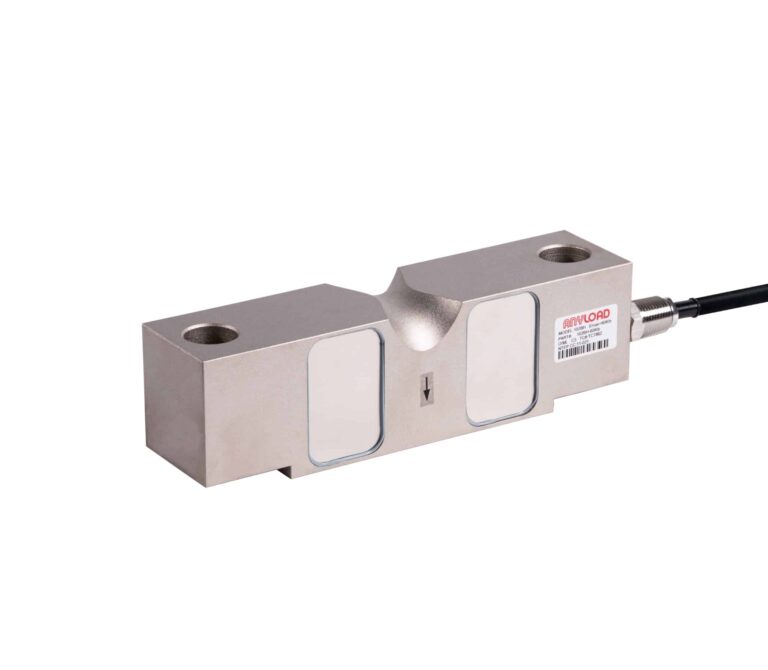

 | ANYLOAD 102BH FeaturesThe ANYLOAD 102BH Double-Ended Beam Load Cell is made from… +more ANYLOAD 102BH FeaturesThe ANYLOAD 102BH Double-Ended Beam Load Cell is made from nickel-plated alloy steel and is sealed for durability. Moreover, it has a capacity range of 10Klb to 125Klb, making it ideal for medium to high-capacity uses. Additionally, with an IP67 rating, it is water-resistant and suitable for tough environments. It is commonly used in truck and rail scales, as well as other heavy-duty systems. Furthermore, the load cell is compatible with Rice Lake and Vishay models, allowing for easy integration. Finally, a compression weigh module (102BHM1) is available to improve accuracy and performance.Material: Alloy SteelRated Capacities: 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50tFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125KlbOIML MAA C3, Y=7 500 certified from 11t-55tCE, RoHS, and Ex-certifiedATEX, FM, IECEx available upon requestLightning Protection Version (50Klb-02, 60Klb-02, 75Klb-02)Rodent Protected Cable Version (75Klb-RP)Interchangeable with Rice Lake RL75058Available Standard Options: 10Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 100Klb-SE & 125Klb.Available options with weld seal and surge absorb: 50Klb-02, 60Klb-02, 75Klb-02Available options with rodent-protected cable: 75Klb-RPContact us for availability on other rated capacities.Installation Module: ANYLOAD 102BHM1 -less | Price: $614.00-$1,900.00 | |

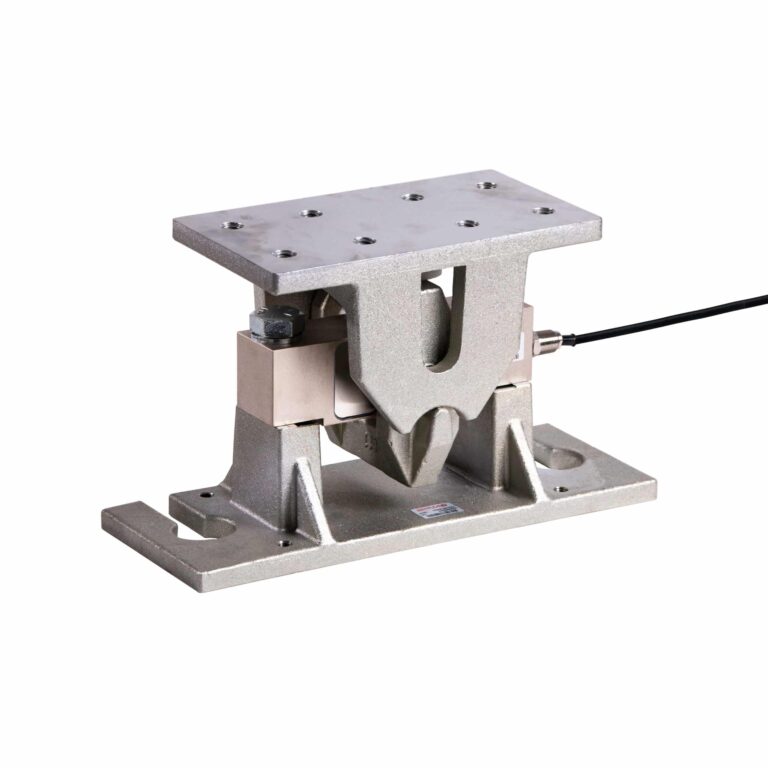

 | ANYLOAD 102BHM1 Weigh ModuleAssembles: 102BH Double-Ended Beam Load CellMaterial: Alloy steel, zinc… +more ANYLOAD 102BHM1 Weigh ModuleAssembles: 102BH Double-Ended Beam Load CellMaterial: Alloy steel, zinc platedCapacities: 10Klb-200Klb/5t-35tNTEP-certified load cells from 25Klb-125KlbOIML-certified load cells from 11t-55tCE, RoHS, and ex-certified load cellsCenter pivoted with self-aligning suspension link designAllows for multi-directional movementsNo check rods requiredIt can be easily integrated into machines, trucks, and other scale systemsLoad cell not includedAvailable Options: 10Klb-25Klb, 50Klb-75Klb & SE100Klb.Please contact us to order capacity options 100Klb and 125KlbContact us with any product-related questions. -less | Price: $530.00-$1,670.00 |
