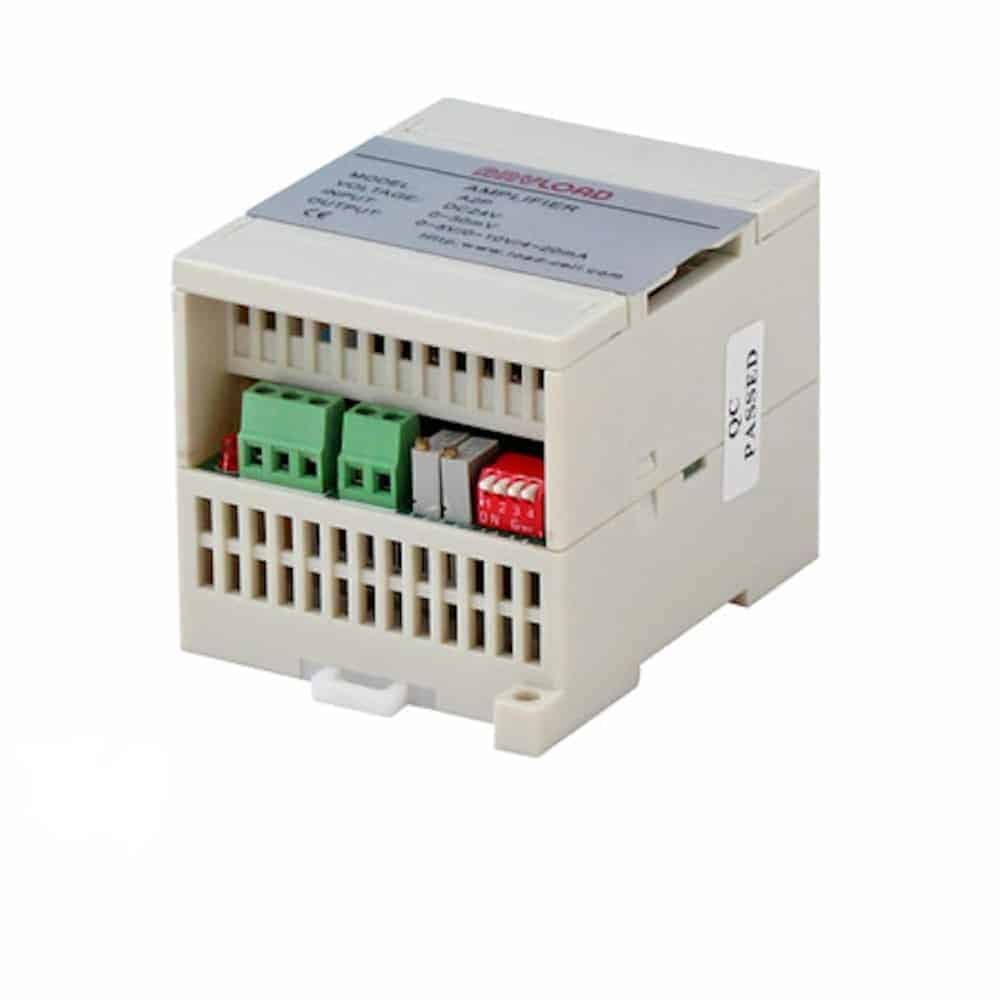

ANYLOAD A2P & A2P-D2 Load Cell Amplifier
The ANYLOAD A2P and A2P-D2 strain gage amplifiers offer reliable signal conditioning for load cells and transducers, capable of directly driving up to 2 x 350Ω load cells or up to 8 load cells via a junction box. Housed in a PVC enclosure, these DC-powered amplifiers feature adjustable resistors and can be easily installed on a standard rail channel. They are fully compliant with CE Electromagnetic Compatibility standards and offer flexible input and output options, including wide input signals of 0±36mV and outputs of 0±10V or 4-20mA. The A2P-D2 model also provides two excitation voltage options to suit various applications.
For a quick comparison of this product to our other amplifier products, see our Load Cell Amplifier Comparison Table in our Knowledge Base.
| Quantity | Price |
|---|---|
| 1 - 9 | $452.00 |
| 10 - 24 | $429.40 |
| 25 - 49 | $415.84 |
| 50 - 99 | $402.28 |
| 100 + | $384.20 |
ANYLOAD A2P & A2P-D2 Load Cell Amplifier
The ANYLOAD A2P and A2P-D2 series strain gage amplifiers are designed to provide precise signal conditioning for load cells and force transducers. These DC-powered amplifiers can directly drive up to 2 x 350Ω load cells or, when used with a junction box, support up to 8 load cells (4 x 350Ω, 8 x 700Ω, or 8 x 350Ω for the -D2 option). Housed in a durable PVC enclosure, the A2P amplifiers are easily installed on a standard rail channel, making them adaptable for various applications. They feature adjustable resistors for fine-tuning and offer wide input signals of 0±36mV with output options of 0±10V or 4-20mA. Fully compliant with the CE Electromagnetic Compatibility Directive, the A2P-D2 model also provides flexible excitation voltage options of 5VDC or 12VDC to meet diverse operational requirements.
- AC & DC powered
- Housed in PVC enclosure
- Individual adjustable resistors
- Contains 2 through holes for easy installation
- Compliance: Conformité Européenne (CE) – Electromagnetic Compatibility Directive
- The A2P has a 12V excitation voltage and an AC power supply option
- The A2P-D2 has two excitation voltages, 5VDC or 12VDC
- The A2P-D2B is the same as the A2P-D2 but adds Balluff IO-Link compatibility
Available Option: A2P-D2B
Previous models may be available. Please contact us with any product-related questions.
Specifications
ANYLOAD A2P-D2 Load Cell Amplifier Specifications
| Specification | A2P | A2P-D2* |
| Capacity | Up to 2×350Ω directly connected or 4×350Ω or 8×700Ω through a junction box |
Up to 2×350Ω directly connected or 4×350Ω or 8×700Ω or 8×350Ω through a junction box |
| Compatibility | N/A | Compatible with IO-LINK Balluff’s |
| Load Cell Type | All strain gauge types | All strain gauge types |
| Power Supply | 24VDC or 95-250VAC | 24VDC ± 20% |
| Input Range | 0-30mV | 0±36mV |
| Output Signal (Voltage) | 0-10V | 0±10V |
| Output Signal (Current) | 4-20mA | 4-20mA |
| Excitation Voltage to Load Cell | 12V | 5V or 12V |
| Operating Temperature Range | -10 to 50°C or 14 to 122°F | -10 to 50°C or 14 to 122°F |
| Enclosure Material | PVC casting | PVC casting |
| Offset Range | ±2V | ±2V |
| IP Rating | IP40 | IP40 |
| Installation | Standard rail channel | Standard rail channel |
| Tare Limit | Shall not exceed 30% of the full load | Shall not exceed 30% of the full load |
*A2P-D2B is compatible with Balluff IO-Link
Technical Documents
 |
A2P Load Cell Amplifier Datasheet A2P-D2 & A2P-D2B Datasheet |
 |
A2P Manual A2P-D2 Manual |
 |
CE Certificate – Electromagnetic Compatibility Directive |
