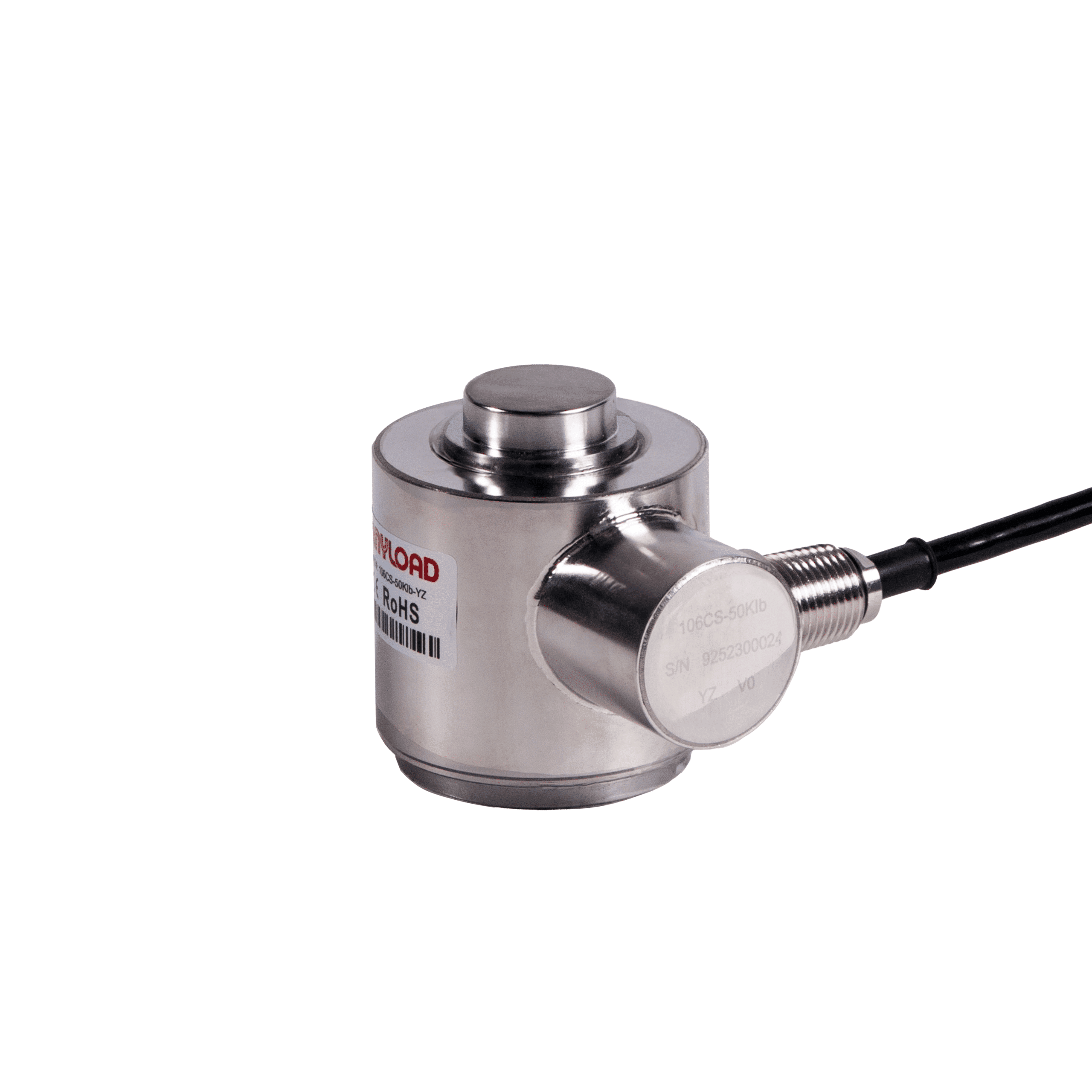

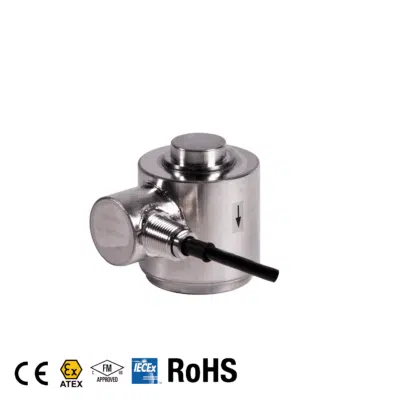

ANYLOAD 106CS Stainless Steel Canister Load Cell
The ANYLOAD 106CS is a heavy-duty stainless steel compression canister load cell with IP68 water and corrosion resistance, designed to perform under extreme conditions. Ideal for railroad and truck scales, tank weighing, and hydraulic test machines, it is also interchangeable with Cardinal CP1 and Vishay Revere CP & 392B models.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,076.00 |
| 10 - 24 | $1,022.20 |
| 25 - 49 | $989.92 |
| 50 - 99 | $957.64 |
| 100 + | $914.60 |
ANYLOAD 106CS Features
The ANYLOAD 106CS is a heavy-duty compression canister load cell designed for demanding industrial applications. Constructed from stainless steel with an IP68 rating, it offers excellent water and corrosion resistance, ensuring reliable performance even under extreme conditions. This rugged load cell is ideal for use in railroad and truck scales, tank weighing systems, and hydraulic test machines. The 106CS is designed for easy interchangeability with other models such as the Cardinal CP1 and Vishay Revere CP & 392B, offering flexibility in various setups. With its durable design and high accuracy, the 106CS provides a long-lasting and dependable solution for high-capacity compression weighing applications.
- Material: 2Cr13 Stainless steel
- Rated Capacities: 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
- Full-Scale Output: 1.75mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS-certified
Available Option: 50Klb
Please contact us with any product-related questions.
Specifications
ANYLOAD 106CS Load Cell Specifications
| Rated Capacity | 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t |
| Full-Scale Output | 1.75mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 450Ω ± 4.5Ω |
| Output Resistance | 480Ω ± 4.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
ANYLOAD 106CS Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106CS20 Interchangeable Cross Reference
| Manufacturer | Model |
|---|---|
| Artech | 90210 |
| Coti Global | CG-175 |
| Cardinal | CP1 |
| Vishay Revere Transducers | CP |
| Vishay Revere Transducers | 392B |
