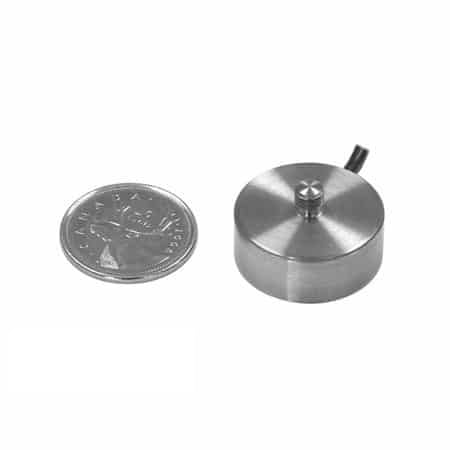

ANYLOAD 247AA Miniature Aluminum Load Button
The ANYLOAD 247AA is a reliable and cost-effective miniature load button designed for compression applications, particularly in space-constrained environments. Widely used in the medical, automotive, and automation industries, this versatile load button is available in capacities ranging from 1kg to 20kg. Its environmentally sealed aluminum body provides IP66-rated protection, meeting leading international safety standards.
| Quantity | Price |
|---|---|
| 1 - 9 | $526.00 |
| 10 - 24 | $499.70 |
| 25 - 49 | $483.92 |
| 50 - 99 | $468.14 |
| 100 + | $447.10 |
ANYLOAD 247AA Features
The ANYLOAD 247AA Miniature Load Button is a dependable and cost-effective solution for precise compression measurements, ideal for applications where space and weight are critical factors. This load button is widely utilized in industries such as medical, automotive, and automation, where accurate force measurement and weighing are essential. Constructed with an environmentally sealed aluminum body, the 247AA offers an IP66 ingress protection rating, ensuring durability and resistance to water and dust in demanding environments. Available in capacities of 1kg, 2kg, 5kg, 10kg, and 20kg, this load button meets leading international safety standards, making it a reliable choice for various industrial applications. For higher capacity requirements, the stainless steel ANYLOAD 247AS Miniature Load Button provides a suitable alternative.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 1kg, 2kg, 5kg, 10kg, 20kg
- Full-Scale Output: 1mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Available Options: 1kg, 2kg, 5kg, 10kg & 20kg.
Please contact us with any product-related questions.
Specifications
ANYLOAD 247AA Miniature Load Button Specifications
| Rated Capacity | 1kg, 2kg, 5kg, 10kg, 20kg |
| Full-Scale Output | 1mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.5% |
| Repeatability | < ± 0.3% |
| Hysteresis Error | < ± 0.5% |
| Creep in 30 minutes | < ± 0.5% |
| Input Resistance | 375Ω ±25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.020% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.020% of Cn/k |
| Compensated Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
ANYLOAD 247AA Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
247AA-(1-20)kg |
