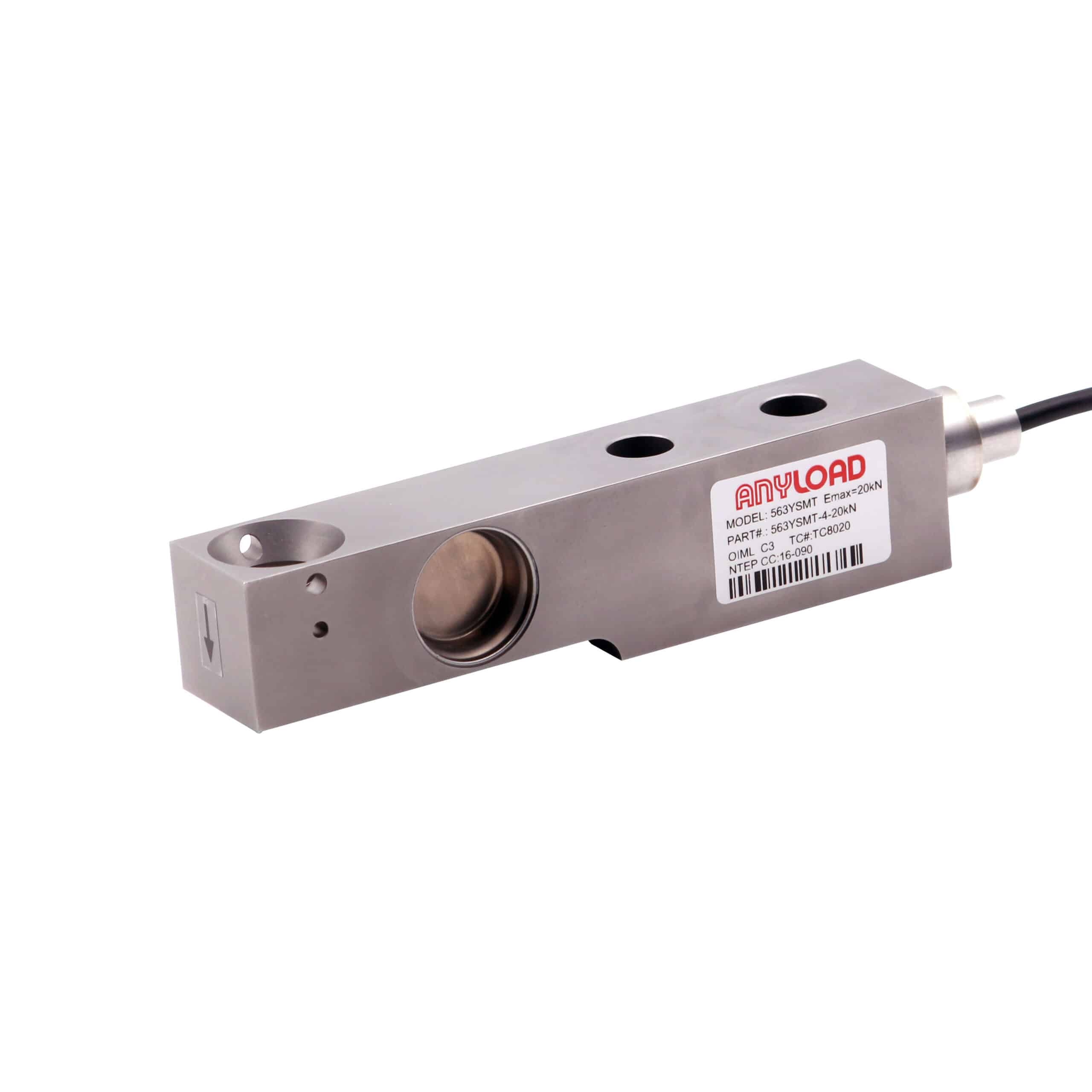

ANYLOAD 563YSMT-4 Single Ended Beam Load Cell

The 563YSMT-4 is a compact, cost-effective single-ended beam load cell ideal for low to medium-capacity uses like platform and hopper scales. With a rugged IP68-rated stainless steel sealed design, it performs reliably even in harsh environments and is fully interchangeable with the Flintec SB4.

Capicity

Clear

Title	Quantity	Price
1-9	1 - 9	0% $838.00
10-24	10 - 24	5% $796.10
25-49	25 - 49	8% $770.96
50-99	50 - 99	11% $745.82
100+	100 +	15% $712.30

Tacuna Systems Price Match Guarantee

SKU: 563YSMT-4 Category: Single-Ended Shear Beam

563YSMT-4 Single-Ended Beam Load Cell Features

The 563YSMT-4 is a durable, cost-effective single-ended beam load cell designed for precision in low to medium-capacity weighing applications such as platform scales, hopper scales, and other industrial systems. Its compact and low-profile design makes it ideal for installations with limited space without compromising performance. Built with rugged stainless steel and featuring IP68-rated welded sealing, it provides superior resistance to water, moisture, and harsh environmental conditions, ensuring reliable, long-term operation even in demanding field use. This load cell is engineered for versatility and durability, making it an excellent choice for various industrial and commercial weighing setups. Notably, the 563YSMT-4 is fully interchangeable with the Flintec SB4 model, allowing for seamless replacement or system upgrades with minimal adjustments. Whether in food processing, manufacturing, or logistics, this load cell offers exceptional accuracy, longevity, and ease of integration.

Material: Stainless Steel
Rated Capacities: 5kN, 10kN, 20kN, 50kN, 100kN
Full-Scale Output: 2.0 mV/V± 0.1%
Safe Overload: 200%
Breaking Overload: 300%
IP Rating: IP68
5kN-10kN: NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
20kN-50kN: NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
5kN-20kN: OIML MAA C5, Y=26 000;
50kN-100kN: OIML MAA C6, Y=8 500
CE, RoHS and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Available Options: 10kN & 20kN.

Please contact us with any questions.

Specifications
