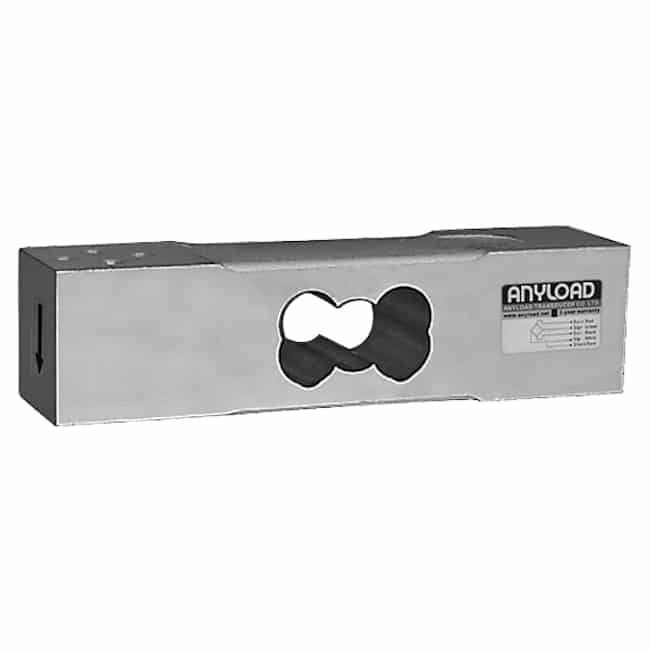

ANYLOAD 108EA Aluminum Single Point Load Cell
The ANYLOAD 108EA aluminum single-point load cell is popular for applications from 30kg to 300kg such as postal scales, retail check-out scales, medical devices, and airport baggage scales. Its aluminum construction offers IP66-rated ingress protection. This model is NTEP and OIML certified and complies with leading industry safety standards.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $130.00 |
| 10 - 24 | $123.50 |
| 25 - 49 | $119.60 |
| 50 - 99 | $115.70 |
| 100 + | $110.50 |
ANYLOAD 108EA Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 60kg, 100kg, 150kg, 200kg, 300kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell
- 30kg: OIML MAA C7.5, Y=20 000;
- 60kg-300kg: OIML MAA C6, Y=29 000
- CE and RoHS-certified
Available Options: 30kg, 60kg, 100kg, 150kg, 200kg & 300kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108EA Load Cell Specifications
| Rated Capacity | 30kg, 60kg, 100kg, 150kg, 200kg, 300kg |
| Reference Max. Platform Size | 450mm x 450mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
| Reference Mounting | Socket-head cap screw: M6-10.9 Tightening torque: 14Nm |
3D Drawing
 |
108EA-(30-300)kg |
Technical Documents
 |
108EA Aluminum Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
