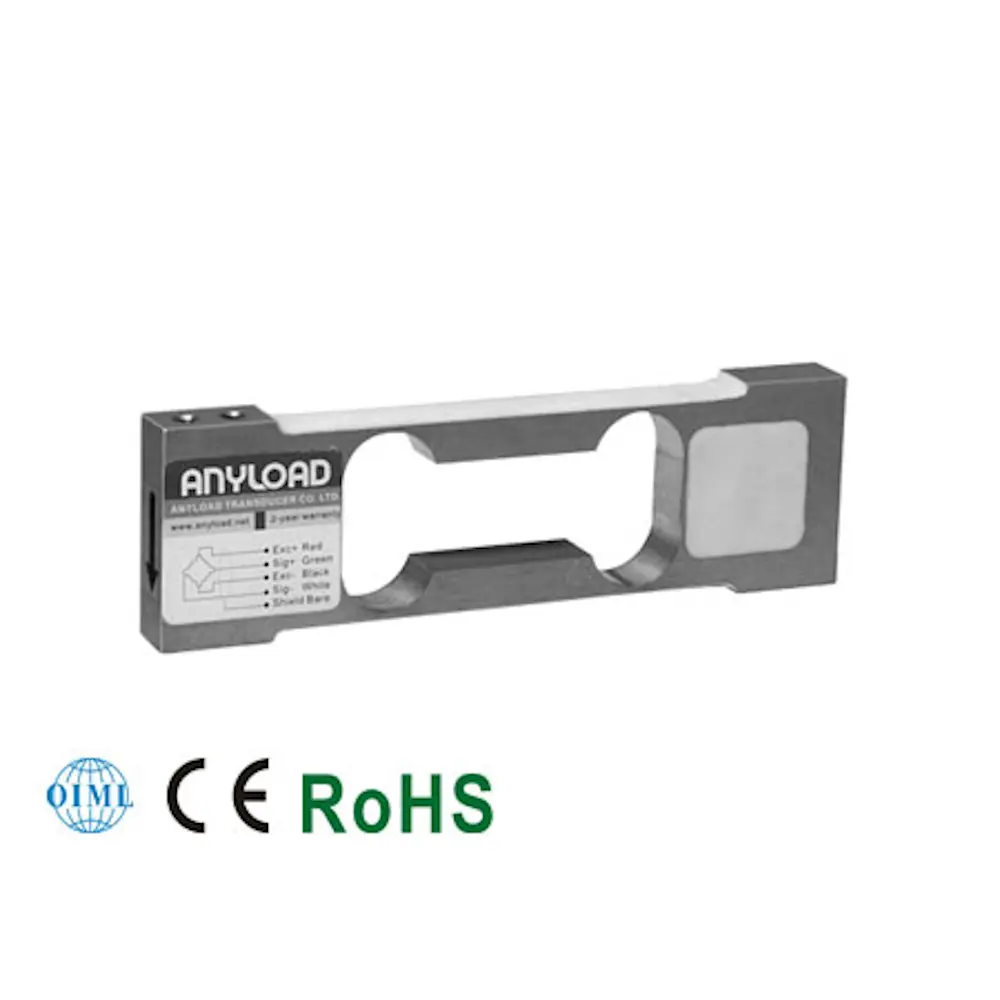

ANYLOAD 108PA Aluminum Single Point Load Cell
The 108PA is a compact, high-accuracy OIML-certified single-point load cell, perfect for precision applications like jewelry scales, pharmaceutical scales, and sensitive laboratory weighing. Available in capacities from 200g to 6kg, it features an environmentally sealed aluminum body with IP66-rated ingress protection. Interchangeable with Vishay Tedea-Huntleigh 1004 and HBM SPL, the 108PA meets leading industry safety standards, making it ideal for sensitive weighing needs.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $90.00 |
| 10 - 24 | $85.50 |
| 25 - 49 | $82.80 |
| 50 - 99 | $80.10 |
| 100 + | $76.50 |
ANYLOAD 108PA Features
The 108PA is a compact and highly accurate single-point load cell, OIML–certified for capacities of 1kg and above, making it ideal for precision applications such as jewelry scales, pharmaceutical scales, and sensitive laboratory weighing. With capacities ranging from 200g to 6kg, the 108PA is designed to handle low-weight, high-precision tasks with ease. Its environmentally sealed aluminum body offers IP66-rated ingress protection, ensuring durability and reliability in challenging environments. Interchangeable with Vishay Tedea-Huntleigh 1004 and HBM SPL, the 108PA meets stringent industry safety standards, making it a top choice for applications requiring precise and consistent measurements.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 200g, 300g, 600g, 1kg, 2kg, 3kg, 6kg
- Full-Scale Output: 1mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 certified from 1kg-500kg
- CE and RoHS-certified
Available Options: 200g, 300g, 600g, 1kg, 2kg, 3kg & 6kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108PA Load Cell Specifications
| Rated Capacity | 200g, 300g, 600g, 1Kg, 2Kg, 3Kg & 6Kg |
| Reference Max. Platform Size – 108PA 200g-600g | 200mm x 200mm |
| Reference Max. Platform Size – 108PA 1kg-6kg | 230mm x 230mm |
| Full-Scale Output – 108PA 200g-600g | 1mV/V ± 20% |
| Full-Scale Output – 108PA 1kg-6kg | 1mV/V ± 20% |
| Zero-Balance – 108PA 200g-600g | ± 0.02mV/V |
| Zero-Balance – 108PA 1kg-6kg | ± 0.02mV/V |
| Non-Linearity – 108PA 200g-600g | < ± 0.023% |
| Non-Linearity – 108PA 1kg-6kg | < ± 0.017% |
| Repeatability – 108PA 200g-600g | < ± 0.023% |
| Repeatability – 108PA 1kg-6kg | < ± 0.017% |
| Hysteresis Error – 108PA 200g-600g | < ± 0.023% |
| Hysteresis Error – 108PA 1kg-6kg | < ± 0.017% |
| Creep in 30 minutes – 108PA 200g-600g | < ± 0.050% |
| Creep in 30 minutes – 108PA 1kg-6kg | < ± 0.023% |
| Input Resistance – 108PA 200g-600g | 415Ω ± 15Ω |
| Input Resistance – 108PA 1kg-6kg | 415Ω ± 15Ω |
| Output Resistance – 108PA 200g-600g | 350Ω ± 3Ω |
| Output Resistance – 108PA 1kg-6kg | 350Ω ± 3Ω |
| Recommended Excitation – 108PA 200g-600g | 10V (15V Maximum) |
| Recommended Excitation – 108PA 1kg-6kg | 10V (15V Maximum) |
| Insulation Resistance – 108PA 200g-600g | > 2GΩ (50V DC) |
| Insulation Resistance – 108PA 1kg-6kg | > 2GΩ (50V DC) |
| Nominal Temperature Range – 108PA 200g-600g | –10°C to 40°C/14°F to 104°F |
| Nominal Temperature Range – 108PA 1kg-6kg | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range – 108PA 200g-600g | –18°C to 65°C/0°F to 149°F |
| Service Temperature Range – 108PA 1kg-6kg | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range – 108PA 200g-600g | -50°C to 85°C/-58°F to 185°F |
| Storage Temperature Range – 108PA 1kg-6kg | -50°C to 85°C/-58°F to 185°F |
| Safe Overload – 108PA 200g-600g | 150% of full scale |
| Safe Overload – 108PA 1kg-6kg | 150% of full scale |
| Breaking Overload – 108PA 200g-600g | 300% of full scale |
| Breaking Overload – 108PA 1kg-6kg | 300% of full scale |
| Seal Type – 108PA 200g-600g | Environmentally Sealed |
| Seal Type – 108PA 1kg-6kg | Environmentally Sealed |
| IP Rating – 108PA 200g-600g | IP66 |
| IP Rating – 108PA 1kg-6kg | IP66 |
| Reference Mounting – 108PA 200g-600g | Socket-head cap screw: M3-6Tightening torque: 2Nm |
| Reference Mounting – 108PA 1kg-6kg | Socket-head cap screw: M3-6Tightening torque: 2Nm |
Technical Documents
 |
108PA Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity |
3D Drawing
 |
108PA-(0.75-6)kg |
Interchangeable Cross Reference
ANYLOAD 108PA Equivalents
| Manufacturer | Equivalent Model |
| HBM | SPL |
| Vishay Tedea-Huntleigh | 1004 |
