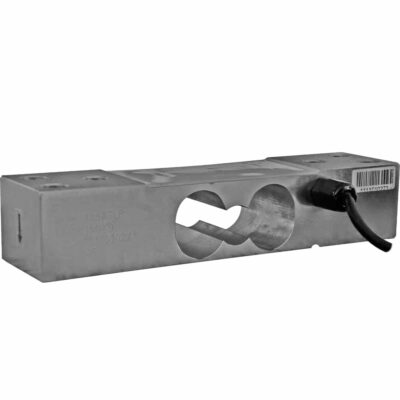

ANYLOAD 108WSLP Stainless Steel Single Point Load Cell
The ANYLOAD 108WSLP Single Point Load Cell is a highly accurate and reliable solution, featuring a durable 2Cr13 stainless steel body with IP66 ingress protection. With a 150kg capacity, this load cell is also interchangeable with the Mettler-Toledo 0756, making it a versatile choice for various applications.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $522.00 |
| 10 - 24 | $495.90 |
| 25 - 49 | $480.24 |
| 50 - 99 | $464.58 |
| 100 + | $443.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108WSLP Features
The ANYLOAD 108WSLP Single Point Load Cell is a high-precision, reliable device designed to meet demanding industrial needs. Constructed from durable 2Cr13 stainless steel, this load cell boasts an IP66 ingress protection rating, ensuring excellent resistance to environmental factors such as dust and water. With a rated capacity of 150kg, it offers superior accuracy and reliability, making it ideal for various applications. Additionally, the 108WSLP is interchangeable with the Mettler-Toledo 0756, providing seamless integration into existing systems. Its robust design and consistent performance make it a trusted choice for accurate load measurement.
- Material: 2Cr13 Stainless Steel
- Rated Capacity: 150kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS Certified
Available Option: 150kg-YZ
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108WSLP Single Point Load Cell Specifications
| Rated Capacity | 150kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
108WSLP Stainless Steel Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
108WSLP-150kg |
Interchangeable Cross Reference
ANYLOAD 108WSLP Equivalents
| Manufacturer | Equivalent Model |
| Mettler-Toledo | 0756 |
