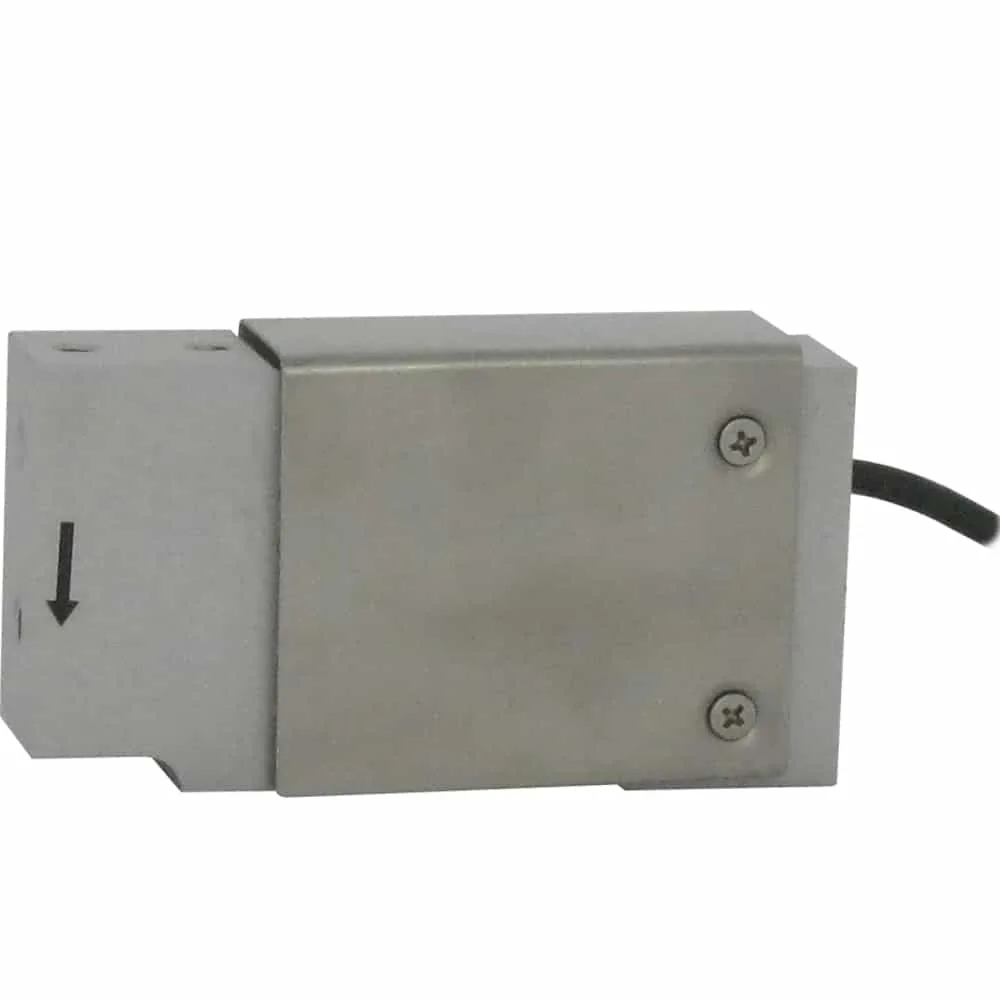

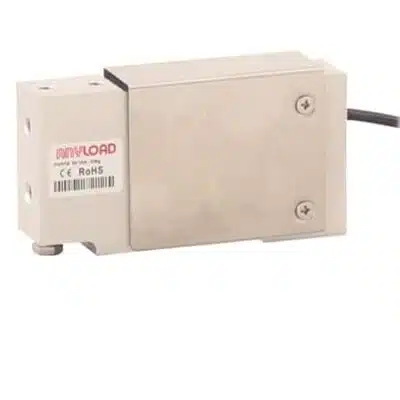

ANYLOAD 651AA Aluminum Single Point Load Cell
The ANYLOAD 651AA single-point load cell is suitable for a wide range of weighing applications, especially those involving off-center loads. Available in capacities from 10kg to 100kg, its aluminum construction offers an ingress protection rating of IP66. This model complies with multiple industry safety standards.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $222.00 |
| 10 - 24 | $210.90 |
| 25 - 49 | $204.24 |
| 50 - 99 | $197.58 |
| 100 + | $188.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651AA Features
The 651AA Single Point Load Cell is crafted from clear-anodized aluminum, offering a lightweight yet durable solution for compact platform scale applications. Designed for platforms up to 400 × 400 mm, it provides reliable performance across rated capacities of 10 kg, 15 kg, 30 kg, 50 kg, and 100 kg. With a full-scale output of 2 mV/V ±10%, it ensures accurate and consistent weight measurement. The load cell is environmentally sealed with IP66 protection, safeguarding it against dust and moisture. Additionally, it features 150% safe overload and 300% breaking overload, delivering dependable performance even in demanding operating conditions.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 10kg, 15kg, 30kg, 50kg, 100kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Available Options: 10kg, 15kg, 30kg, 50kg, & 100kg.
Please contact us with any product-related or implementation-related questions.
Specifications
651AA Aluminum Single Point Load Cell Specifications
| Rated Capacity | 10kg, 15kg, 30kg, 50kg, 100kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
651AA Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
651AA-(10-100)kg |
Interchangeable Cross Reference
ANYLOAD 651AA Equivalents
| Manufacturer | Equivalent Model | Info |
| Coti Global | CG-1010 | |
| Vishay Tedea-Huntleigh | 1015 | |
| Vishay Tedea-Huntleigh | 1010 | Imperial thread 1/4″-20UNC |
| HBM | SP10 | |
| Rice Lake | RL1010 |
* HBM SP10, Rice Lake RL1010, and Vishay Tedea-Huntleigh 1010 are of imperial thread 1/4″-20UNC
